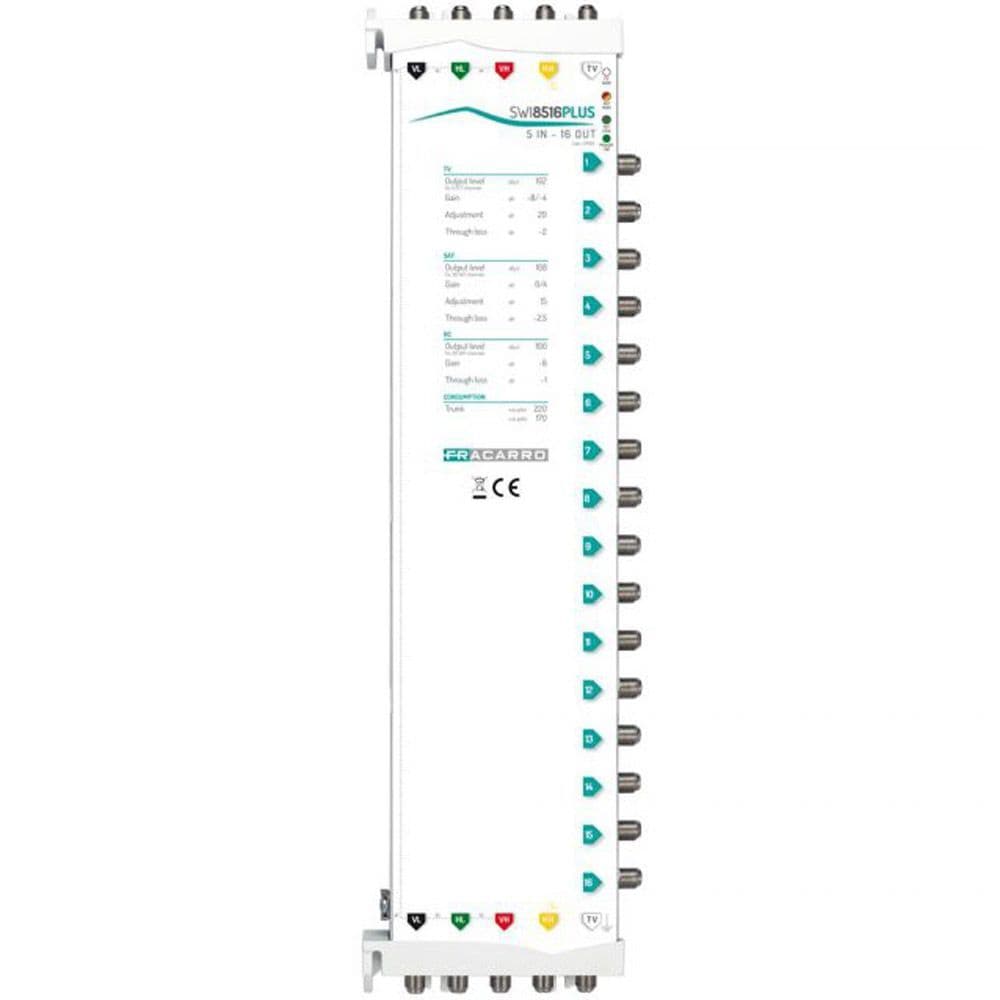

Home / IRS & Distribution / Multiswitches - Legacy / Fracarro 16 Output 5 Wire Cascadable Multiswitch (271063) Fracarro 16 Output 5 Wire Cascadable Multiswitch (271063) Not yet reviewed Login to View Price Product Code: SWI8516PLUS Information Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments). Technical Specifications Inputs: 4 SAT, 1 TV Taps: 16 SAT Bandwidth: 950-2150 MHz Positive slope gain: 0/4 dB Gain adjustment: 15 dB Max output level (-35dBc 2 tone): 108 dBµV Insertion loss: -2.5 dB SAT-SAT Isolation: >45 dB TV Bandwidth: 85-862 MHz Positive slope gain: -8/-4 dB Gain adjustment: 20 dB Max output level (-35dBc 2 tone): 102 dBµV Insertion loss: -2 dB RETURN PATH Bandwidth: 5-65 MHz Gain: -6 dB Max output level (-35dBc 2 tone): 100 dBµV Insertion loss: -1 dB FEATURES Current consumption: 220 mA, 14 V / 170 mA, 18 V Dimensions: 425 x 120 x 30 mm Operating temperature: -10 - +55 °C Specifications Brand: Fracarro Product Code: SWI8516PLUS Downloads Product Code: SWI8516PLUS
