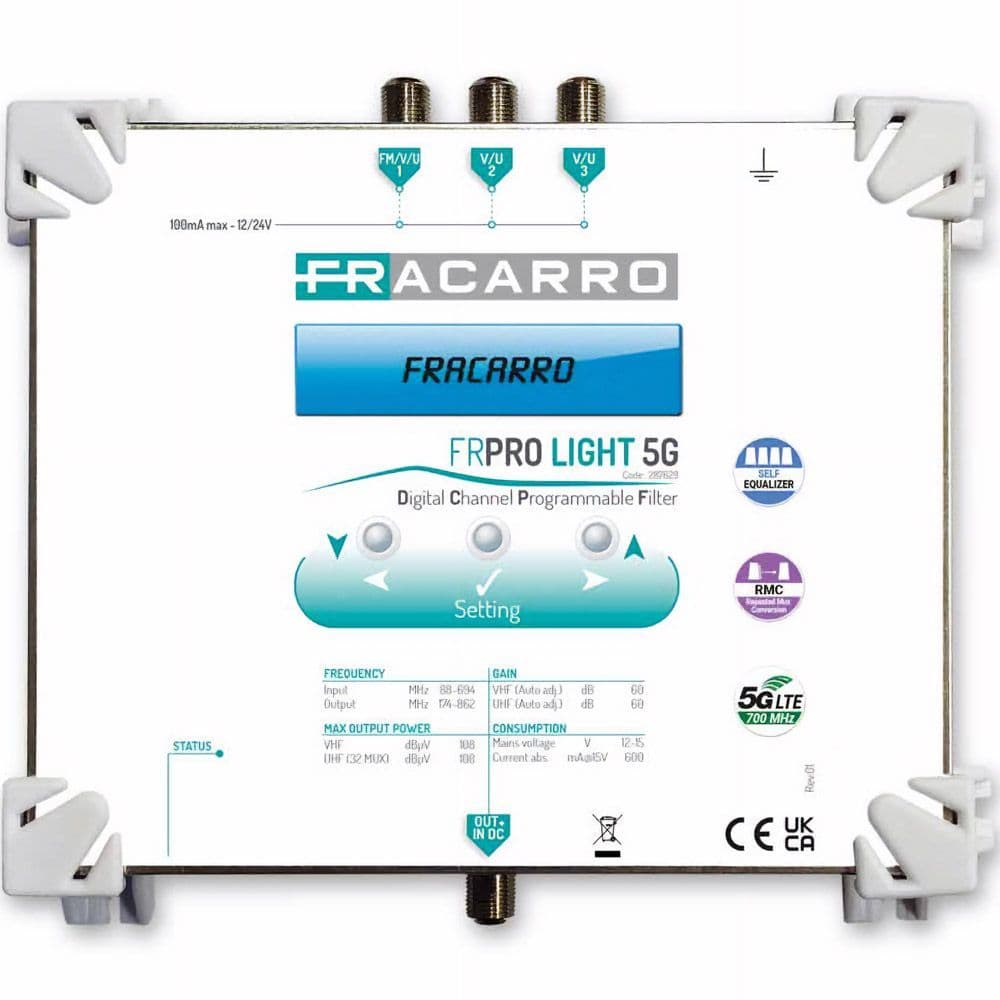

Fracarro 3 Input High Selectivity Filtering Headend (287629)

3-input (VHF+DAB / UHF flexible) programmable head-end to carry out high selectivity filters with up to 108dBμV output level for each filter. 32 filters from 1 to 6 channels, each with 9 selectivity levels.

Features

• Self Equalizer: the product scans the signals received in the inputs and automatically amplifies the detected channels, equalizing them in the output. It can be done automatically after each short power failure or, via SW executed or disabled.
• Repeated Mux Conversion: in case of isofrequency channels present on multiple inputs, you can choose to keep only the higher power channel, or convert the lower power channel on the free 5G and 4G LTE frequencies (694 - 862 MHz).
• The station can filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in both VHF and UHF bands.
• Perfect equalization of output signals.
• Isofrequency filtering or channel conversion.
• Automatic gain control on each individual mux.
• Fixed 5G and 4G LTE filtering.
• Quick and easy installation and programming with on-board display and keypad and real-time readout of input and output levels.
• External power supply included in package

Technical Specifications

• Code: 287629

INPUT

• Inputs: FM+VHF+UHF, 2 x VHF/UHF
• Input no.: 3
• Connectors: F female
• Filter: Flexible Matrix 32/1..6
• DAB, III Frequency: 174 - 240 MHz
• Frequency: 470-694 MHz (5G >40dB filter)
• Dynamic adj: >60 dB (auto AGC)
• VHF input level: Self Equalizer: 45÷109 dBµV; Manual configuration: 37 -109 dBµV
• Maximum input level UHF: Self Equalizer: 45÷109 dBµV; Manual configuration: 37÷109 dBµV

OUTPUT

• Outputs number: 1
• Connectors: F female
• Mixed band: 88-108 / 174-240 / 470-862 MHz
• UHF Max Output level: 108 dBµV (for each filter VHF/UHF)
• Gain adjustment: 20 dB
• VHF gain adjustment: 15 dB
• Cluster selectivity filter: 50 dB @1MHz
• MER RF: III+DAB / UHF: 35 dB
• Return loss: >10 dB

SPECIFICATIONS

• Power supply voltage: -
• Power supply voltage: 12-15 V (289087 - SPS1750 included)
• Current consumption: 9 W
• Remote feeding: 100 (12/24)
• Output test: -
• Operating temperature: -5 to +50 °C
• Protection: IP20
• Conformity: EN62368-1:2014/A11:2017; EN50083-2:2012/A1:2015 IEC60728-2:2018 EN61000-3-2:2014 EN61000-3-3:2013

DIMENSIONS AND PACKAGING

• Pieces: 1
• EAN code: 8016978106813
• Packaging dimensions: 270 x 230 x 70 mm
• Product dimensions: 195 x 165 x 50 mm
• Packaging weight: 1.04 kg
• Net Weight: 0.650 kg
• Weight: 0.650 kg
• Total weight: 5.2 kg
