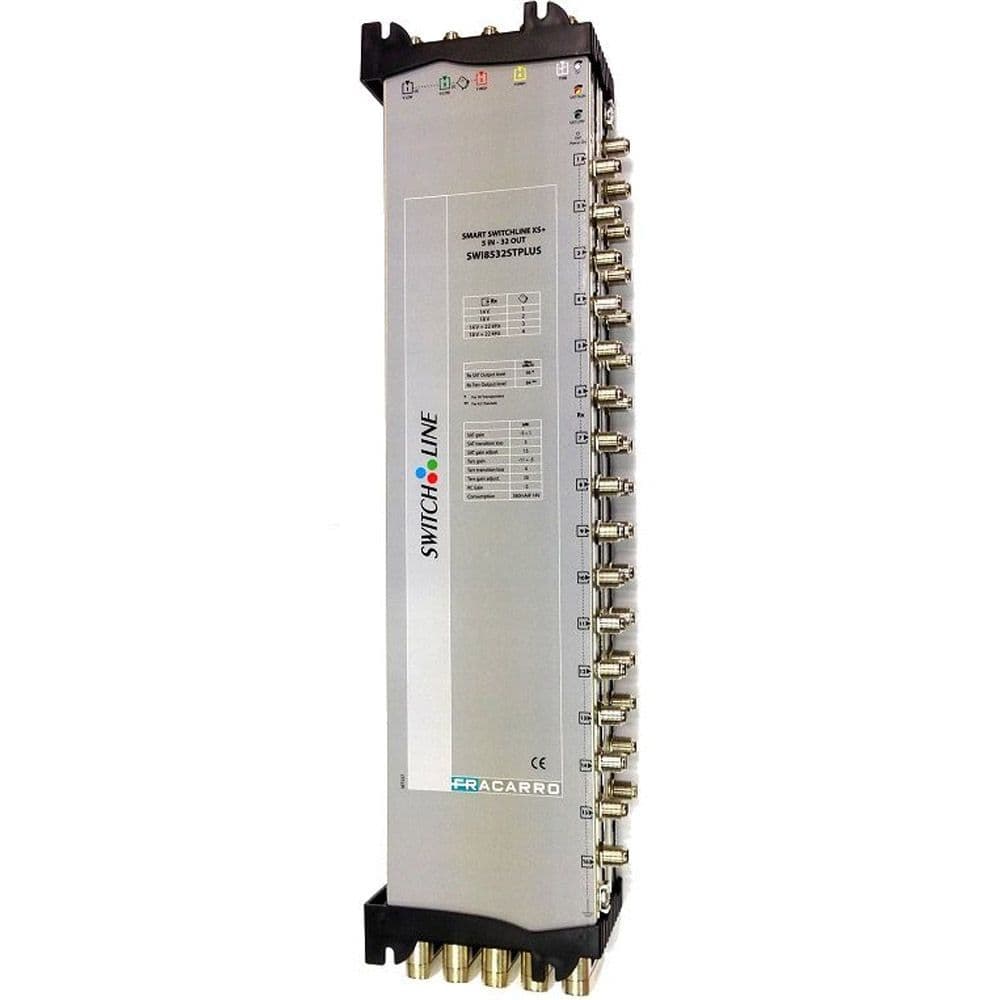

Home / IRS & Distribution / Multiswitches - Legacy / Fracarro 32 Output 5 Wire Cascadable Multiswitch (271058) Fracarro 32 Output 5 Wire Cascadable Multiswitch (271058) Not yet reviewed Login to View Price Product Code: SWI8532STPLUS Information Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments). Coupled mechanics. Technical Specifications Inputs: 4 SAT, 1 TV Taps: 32 SAT Bandwidth: 950-2150 MHz Positive slope gain: -24 dB Gain adjustment: 15 dB Max output level (-35dBc 2 tone): 108 dBµV Insertion loss: -5 dB SAT-SAT Isolation: >45 dB TV Bandwidth: 85-862 MHz Positive slope gain: -10/-4 dB Gain adjustment: 20 dB Max output level (-35dBc 2 tone): 102 dBµV Insertion loss: -4 dB RETURN PATH Bandwidth: 5-65 MHz Gain: -6 dB Max output level (-35dBc 2 tone): 100 dBµV Insertion loss: -2 dB FEATURES Current consumption: 440 mA, 14 V / 340 mA, 18 V Dimensions: 440 x 120 x 60 mm Operating temperature: -10 - +55 °C Specifications Brand: Fracarro Product Code: SWI8532STPLUS Downloads Product Code: SWI8532STPLUS
