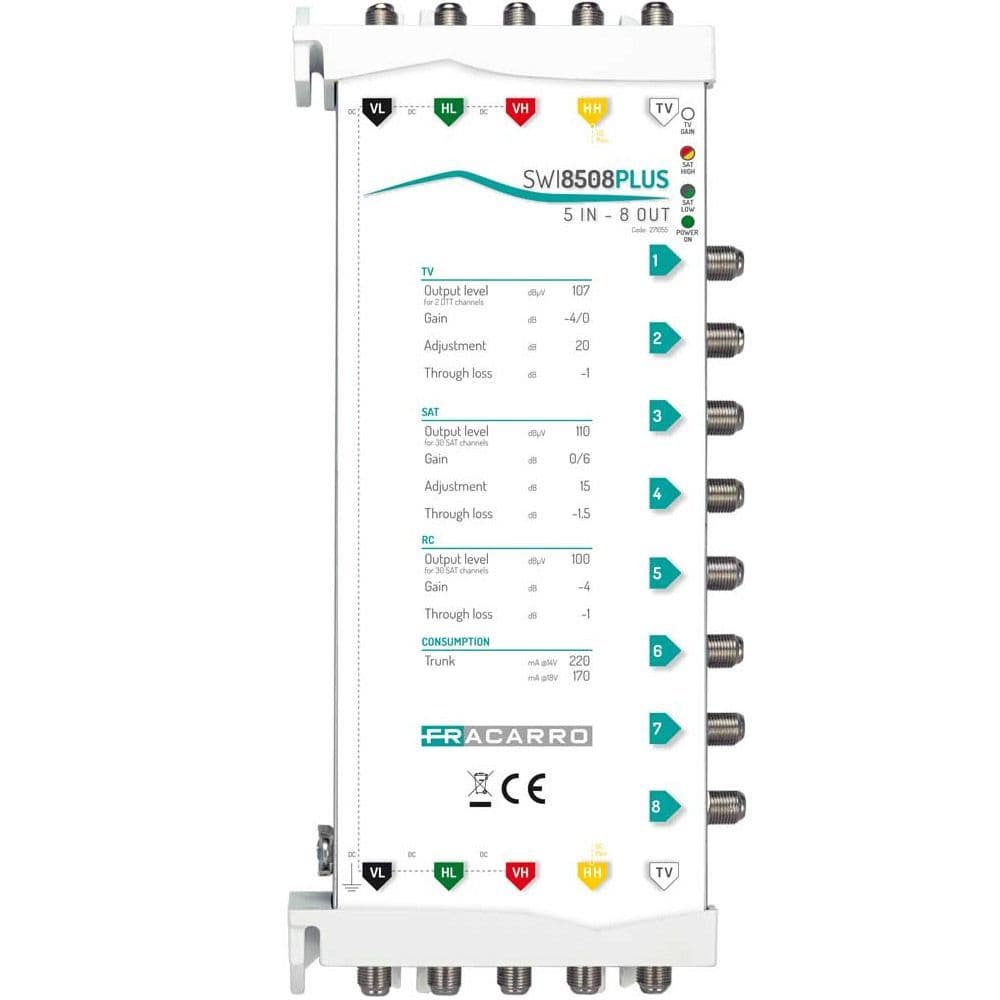

Home / IRS & Distribution / Multiswitches - Legacy / Fracarro 8 Output 5 Wire Cascadable Multiswitch (271055) Fracarro 8 Output 5 Wire Cascadable Multiswitch (271055) Not yet reviewed Login to View Price Product Code: SWI8508PLUS Information Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments). Technical Specifications Inputs: 4 SAT, 1 TV Taps: 8 SAT Bandwidth: 950-2150 MHz Positive slope gain: 0/6 dB Gain adjustment: 15 dB Max output level (-35dBc 2 tone): 110 dBµV Insertion loss: -1.5 dB SAT-SAT Isolation: >45 dB TV Bandwidth: 85-862 MHz Gain adjustment: 20 dB Max output level (-35dBc 2 tone): 107 dBµV Insertion loss: -1 dB RETURN PATH Bandwidth: 23863 MHz Gain: -4 dB Max output level (-35dBc 2 tone): 100 dBµV Insertion loss: -1 dB FEATURES Current consumption: 220 mA, 14 V / 170 mA , 18 V Dimensions: 260 x 120 x 30 mm Operating temperature: -10 - +55 °C Specifications Brand: Fracarro Product Code: SWI8508PLUS Downloads Product Code: SWI8508PLUS
