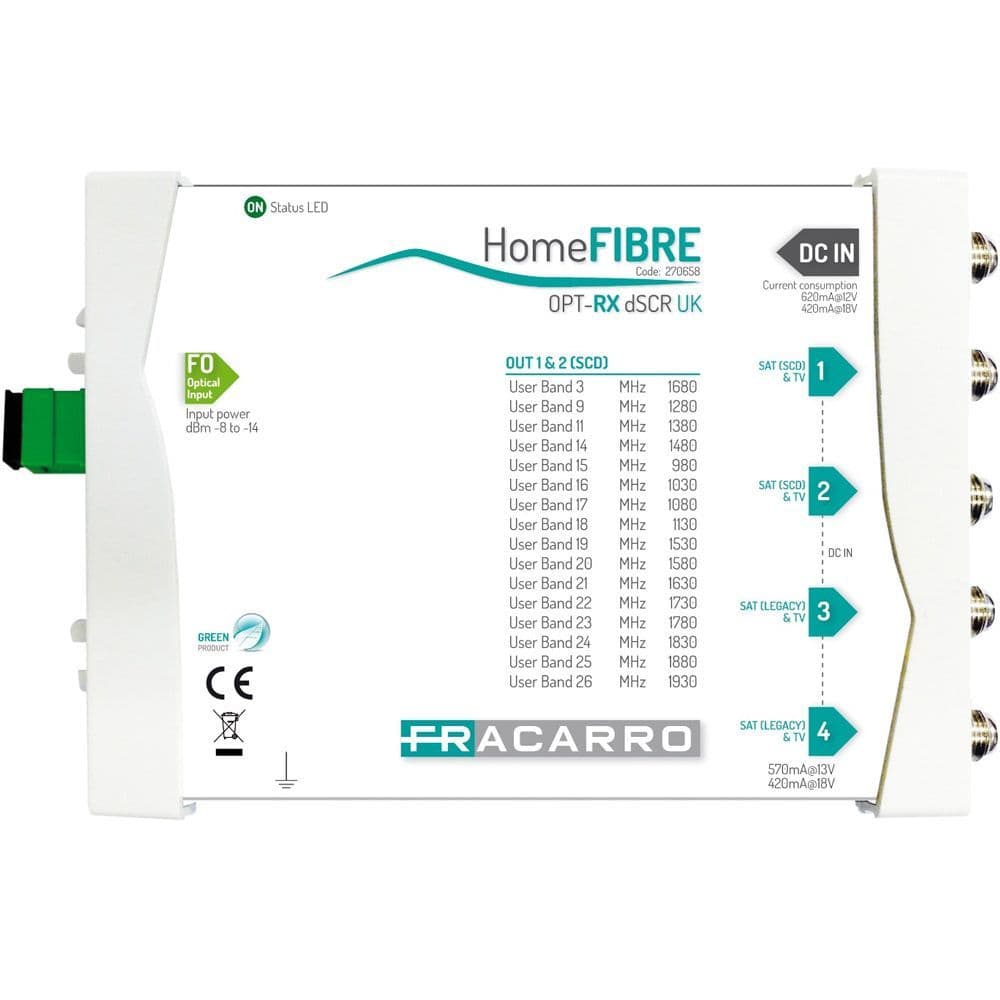

Fracarro Fibre Optic Receiver (270658)

Optical TV SAT dSCR receiver with 2 legacy 4SAT+TV+FM outputsand 2 dSCR outputs, SC/APC optical connector.

Fracarro’s innovative Home Fibre optic system has been designed for its ease of installation, from the headend to the wall outlet. The system uses a conventional LNB and dish assembly requiring no special optical alignment tools. It is capable of carrying all satellite and terrestrial signals through a single 9/125 glass fibre. Additional transmitters can be cascaded using a standard 5 core co-axial back bone giving greater flexibility in system design to supply a large number of outlets.

THE OPT-RX dSCR UK receiver converts the optical input signal in to a TV-SAT RF signal available on 2 x dSCR and LEGACY on all 4 outputs. The device can be powered either from the coaxial F DC IN input or directly from the 2 dSCR outputs. If only one receiver is connected, then additional power will be required from the DC IN input or second DSCR output.

Features

• Optical SC/APC standard connector
• 2 x dSCR (16 user bands per outlet)/Legacy and TV on each output
• 2 x Legacy and TV on each output
• Low power consumption
• Optical budget up to 21dB
• Quick and easy installation
• Full bandwidth, 88-790/950-2150

Technical Specifications

• Optical input: 1 SC/APC
• Outputs: 2 X dSCR (TERR/LEGACY + 16 user bands per output) + 2LEGACY (TERR + SAT)

OPTICAL INPUT

• Optical connector: SC/APC
• Optical return loss: >45 dB
• Optical input power range (min - max): -14 to -8 dBm

RF OUTPUTS

• Frequency band: 87-790 / 950-2150 MHz
• Connectors: F female
• Return loss: 8 dB

OUTPUT LEVEL DVB-S (Legacy)

• -14dBm optical input (dBµV): 75 dCSS / 60 Legacy (40Mux), 79 dCSS / 64 Legacy (16Mux), 82 dCSS / 67 Legacy (8 Mux), 85 dCSS / 70 Legacy (4 Mux)
• -8dBm optical input (dBµV): 87 dCSS / 72 Legacy (40Mux), 91 dCSS / 76 Legacy (16Mux), 94 dCSS / 79 Legacy (8 Mux), 97 dCSS / 82 Legacy (4 Mux)

OUTPUT LEVEL DVB-S (dSCR)

• 82 dBµV ± 2 (per transponder)

OUTPUT LEVEL DVB-T

• -14dBm optical input (dBµV): 62 (40Mux), 66 (16Mux), 69 (8 Mux), 72 (4 Mux)
• -8dBm optical input (dBµV):  74 (40Mux), 78 (16Mux), 81 (8 Mux),  84 (4 Mux)

OUTPUT BAND FOR DSCR USERS

• 1680, 1280, 1380, 1480, 980, 1030, 1080, 1130, 1530, 1580, 1630, 1730, 1780, 1830, 1880, 1930 MHz (responding to dSCR commands)

MAIN FEATURES

• Voltage: 12-18 V
• Current consumption: 430mA@18Vdc, 620mA@12Vdc
• Standards: 1st and 2nd generation DiSEqC-SCIF (SCD/SCD2)
• Dimensions (L x H x W): 160 x 100 x 30 mm
• Weight: 450 g
• Operating temperature: -10 to +50 °C
• LED status: Green power LED
