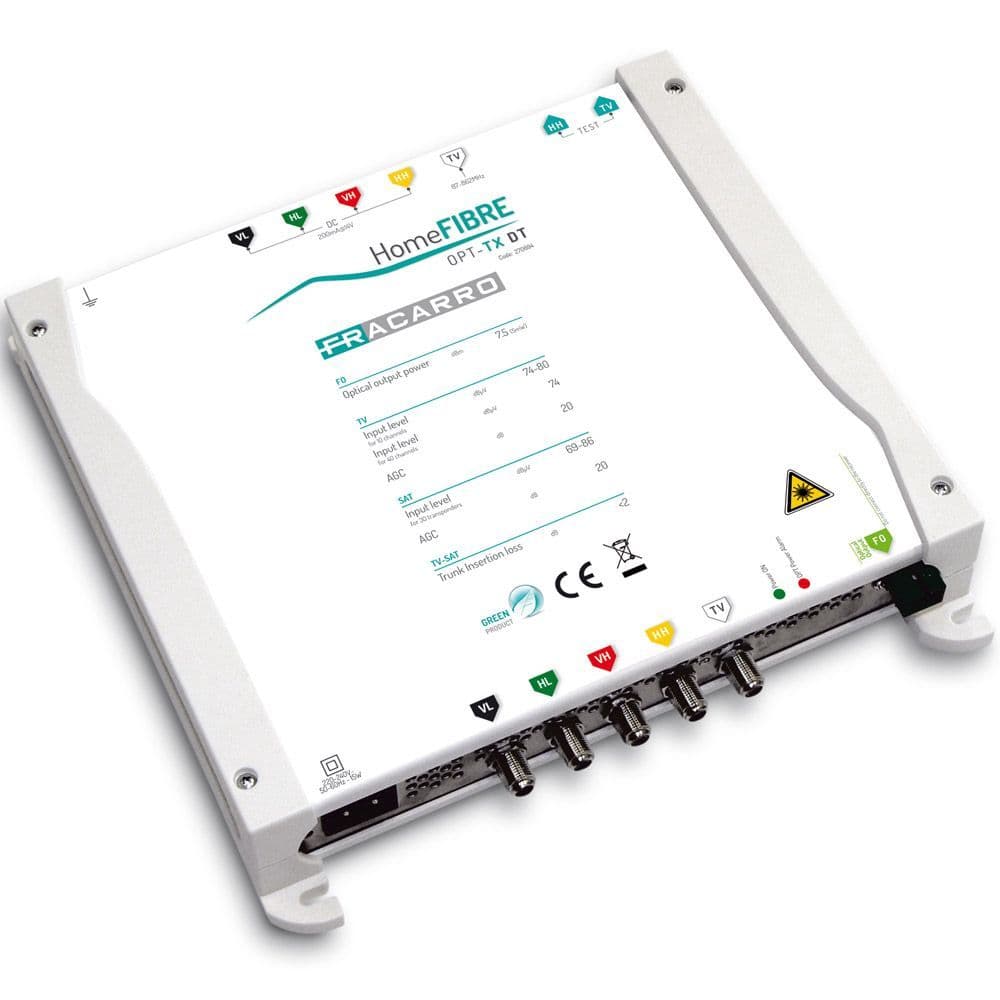

Optical transmitter for the distribution of up to 4 satellites on a single fibre with CWDM (Coarse Wavelength Division Multiplexing) technology. Innovative solution that allows you to transmit the entire TV band, including radio signals, and an entire orbital position on a single fibre. 7dBm with FP laser SAT+TV+FM, wavelength 1310nm (dimensions 230x230x50mm)
Technical Specifications
- Inputs: 5 (4 SAT + 1 TV)
- Outputs: 7 (4 SAT + 1 TV + 2 TEST)
- Optical Output: 1 SC/APC
SAT INPUT
- Frequency band: 950-2150 MHz
- Connectors: F female
- Return loss: 10 dB
- Trunk insertion loss: <2 dB
- Input level: 69-86 dBµV
TV INPUT
- Frequency band: 87-862 MHz
- Connectors: F female
- Return loss: 10 dB
- Trunk insertion loss: 1 dB
- Input level: 80 dBµV @10 ch
TEST OUTPUT
- Frequency band: 87-862 / 950-2150 MHz
- Connectors: F female
- Return loss: 10 dB
- Test attenuation: 59 dBµV per channel
OPTICAL OUTPUT
- Connectors: SC/APC
- Wavelength: 1310
- Optical power: 8 (±1) dB
- Optical return loss: >45 dBµV
- Safety class: 1M
FEATURES
- Power supply: 184-264 Vac, 50-60 Hz
- Consumption: 15 W
- Remote feeding: 200 mA, 14 V (4 SAT connectors)
- Operating temperature: -5 – +55 °C
- AGC Dynamic: 20 dB
- Leds: Red laser overcurrent
- Standard conformity: CEI EN 50083-2 EN60065
- Dimensions: 230x230x50 mm
