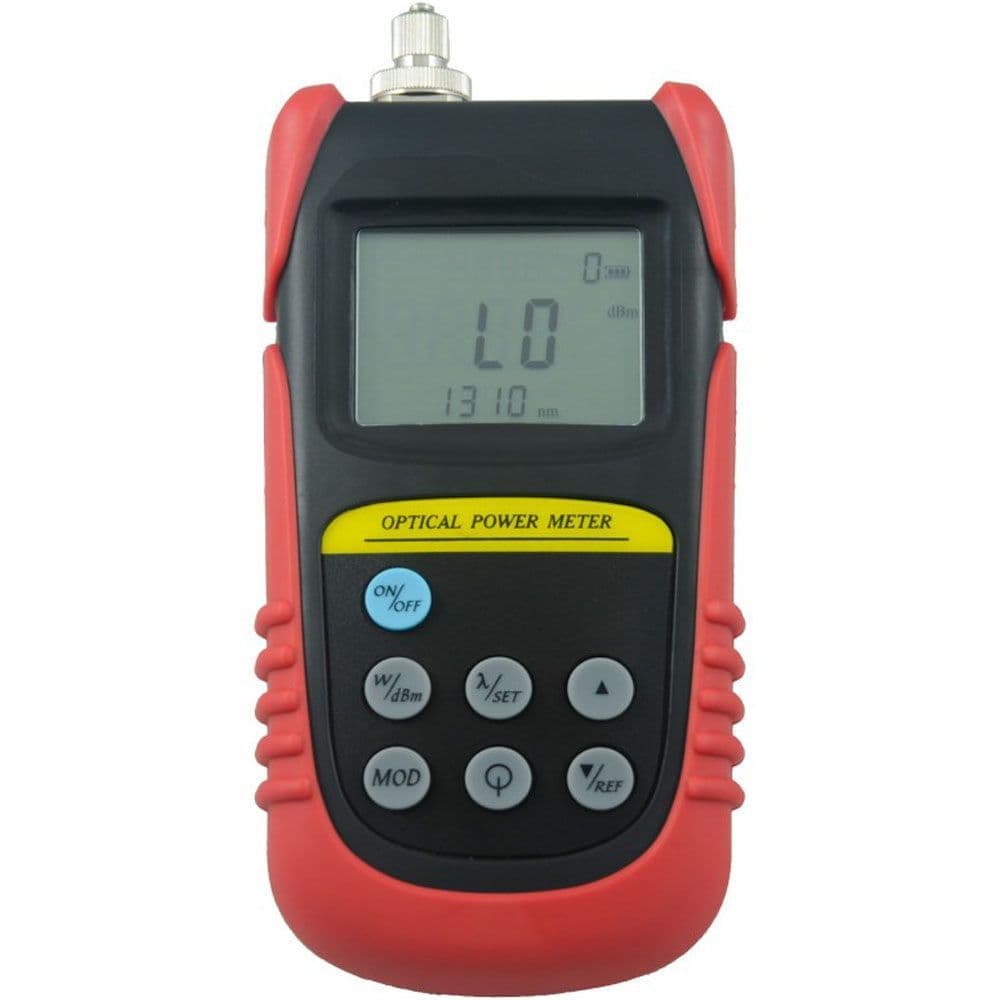

The optical power meter provides precision measurement of optical power in Global Invacom FibreIRS systems. Ideal for testing system function, maintenance and fault finding.
Features
- Large LCD screen graphics
- Measures wavelengths 850nm
- Self calibration function
- Battery powered
Technical Specifications
GENERAL
- Detector: Filtered InGaAS
- Optical Range: Min -50, Max +26 dBm
- Optical Wavelength: 850, 1300, 1310, 1490nm
- Uncertainty: +5%
- Resolution ratio: 0.01 dBm
CONNECTORS
- Input (Optical): FC type adapter
DIMENSIONS
POWER
- DC Power 2xAA Batteries (not supplied)
ENVIRONMENTAL SPECIFICATION
- Operating Temperature: -10°C to 60°C
- Storage Temperature: -20°C to 70°C
- Work Humidity: <95%
