100MHz 4 Pair 24AWG Solid Conductor CAT5e [ISO/IEC11801, TIA/EIA568B]
Quality Connectivity Structured Wiring range is designed to offer higher performance than the standard Category 5e cables available today. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage.
These cables exceed performance standards for TIA/EIA 568-C.2 Category 5e, ISO/IEC 11801 Ed2 Class D; and EN 50173-1:2011. Cables supplied in 305m reelex boxes are sequentially meter marked to ensure you always know the amount of cable remaining at your disposal, sheath printing includes batch marking for full quality traceability.

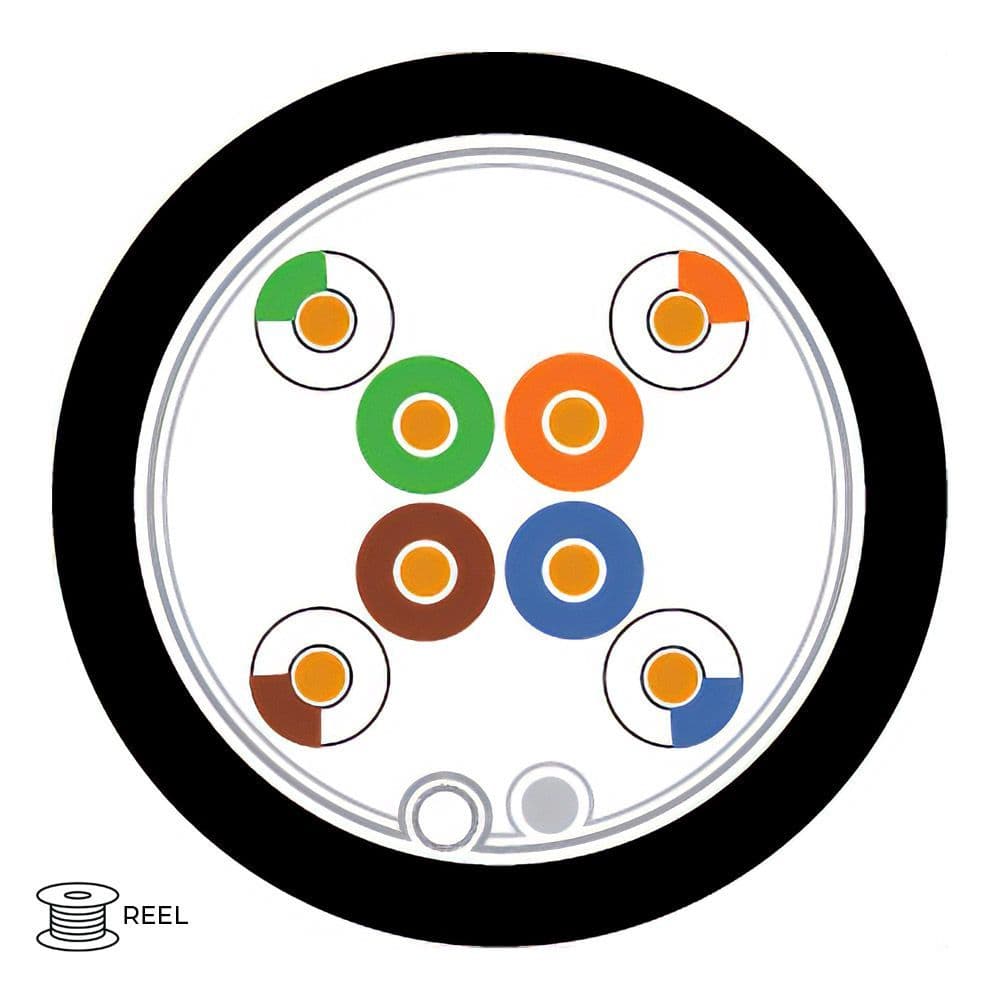

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Overall Diameter: Ø7.25mm
- Size: 24AWG (1/0.50 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE (High Density Polyethylene) Ø 1.0mm (±0.03mm)
- Screening: Alu Foil [+24AWG Drain Wire]
- Outer Sheath Material: External PE (Polyethylene) / PP (Polypropylene) Direct Burial Sheath
- Outer Sheath Dimensions: Ø6.10mm (±0.3mm)
- Nominal Thickness: 0.55mm (±0.05)
- Sheath Colours: Black
- CPR Rating: Fca
- Weight: 40kg/km
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- CIBSE TM65 Embodied Carbon per 305m box: 93kgCO2e
Electrical Characteristics
- Conductor DC Resistance: 11.0 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Rated Voltage: 600V
- Characteristic Impedance: 100Ω (±15)
- Velocity Ratio: 66%
- Operating Temperature: -40°C - +75°C
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
2.0 |
65.3 |
62.3 |
61.0 |
64.0 |
| 4 |
23.0 |
4.1 |
56.3 |
53.3 |
49.0 |
52.0 |
| 8 |
24.5 |
5.8 |
51.8 |
48.8 |
42.9 |
45.9 |
| 10 |
25.0 |
6.5 |
50.3 |
47.3 |
41.0 |
44.0 |
| 16 |
25.0 |
8.2 |
47.2 |
44.4 |
36.9 |
39.9 |
| 20 |
25.0 |
9.3 |
45.8 |
42.8 |
35.0 |
38.0 |
| 25 |
24.3 |
10.4 |
44.3 |
41.3 |
33.0 |
35.8 |
| 31.25 |
23.6 |
11.7 |
42.9 |
39.9 |
31.1 |
34.1 |
| 62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
25.1 |
28.1 |
| 100 |
20.1 |
22.0 |
35.3 |
32.3 |
21.0 |
24.0 |
| 155 |
18.8 |
28.1 |
32.4 |
29.4 |
17.2 |
20.2 |
| 200 |
18.0 |
32.4 |
30.8 |
27.8 |
15.0 |
18.0 |
| 310 |
16.7 |
41.8 |
27.9 |
24.9 |
11.2 |
14.2 |
| 350 |
16.3 |
44.9 |
27.1 |
24.4 |
10.1 |
13.1 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
