100MHz 4 Pair 24AWG Solid Conductor CAT5e [ISO/IEC11801, TIA/EIA568C.2]
[Data Rate: 10/100/1000Base-T. Max Transmission Rate: 1000Mbps]
Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 24AWG (1/0.49 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE Ø 0.90mm (±0.02mm)
- Outer Sheath Material: PVC (Polyvinyl Chloride) / LSF (Low Smoke and Fume)
- Outer Sheath Dimensions: Ø5.20mm, Nominal Thickness 0.50mm (±0.05)
- Sheath Colours: Grey
- Armouring / Outer Sheath: n/a
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- EN50575 CPR Class: Eca
- CIBSE TM65 Embodied Carbon per 305m box: 48kgCO2e
Electrical Characteristics
- Conductor DC Resistance: 11.0 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Rated Voltage: 600V
- Characteristic Impedance: 100Ω (±15)
- Velocity Ratio: 66%
- Operating Temperature: -40°C - +75°C
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
2.0 |
65.3 |
62.3 |
61.0 |
64.0 |
| 4 |
23.0 |
4.1 |
56.3 |
53.3 |
49.0 |
52.0 |
| 10 |
25.0 |
6.5 |
50.3 |
47.3 |
41.0 |
44.0 |
| 16 |
25.0 |
8.2 |
47.2 |
44.4 |
36.9 |
39.9 |
| 20 |
25.0 |
9.3 |
45.8 |
42.8 |
35.0 |
38.0 |
| 25 |
24.3 |
10.4 |
44.3 |
41.3 |
33.0 |
35.8 |
| 31.25 |
23.6 |
11.7 |
42.9 |
39.9 |
31.1 |
34.1 |
| 62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
25.1 |
28.1 |
| 100 |
20.1 |
22.0 |
35.3 |
32.3 |
21.0 |
24.0 |

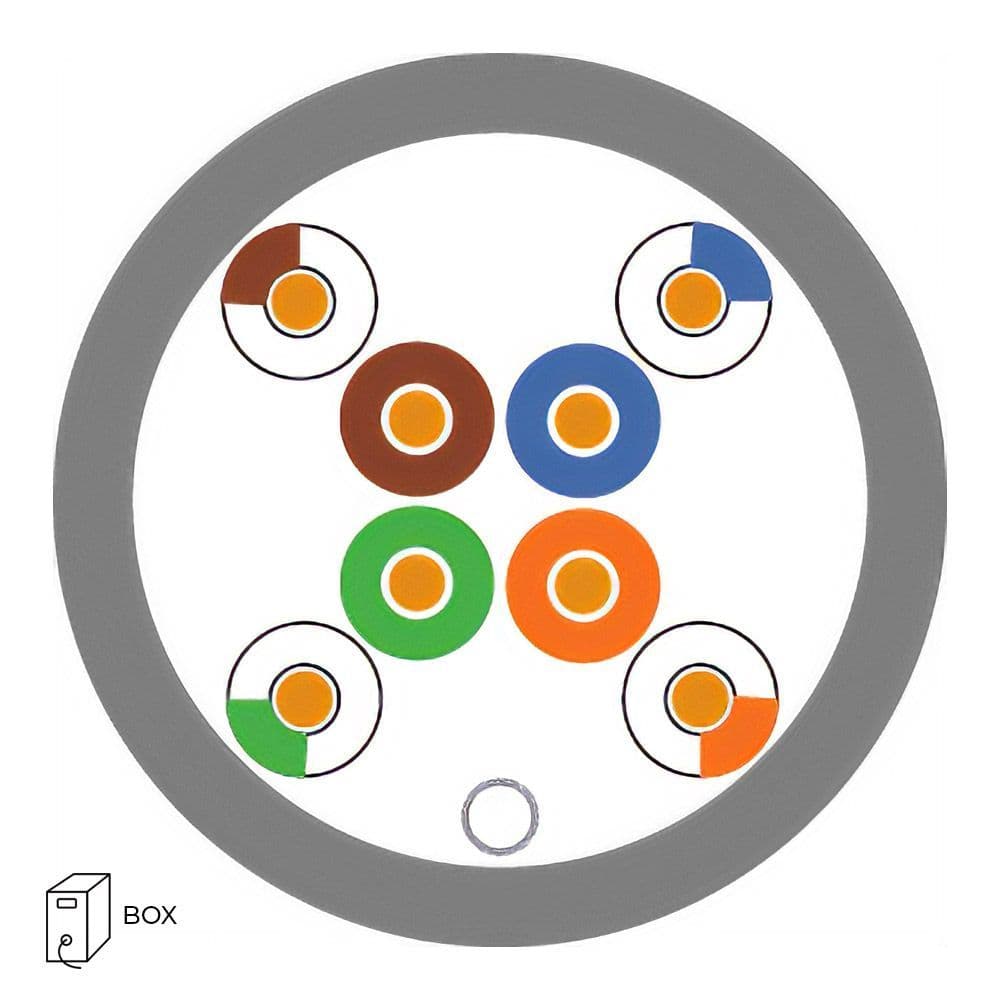

Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
