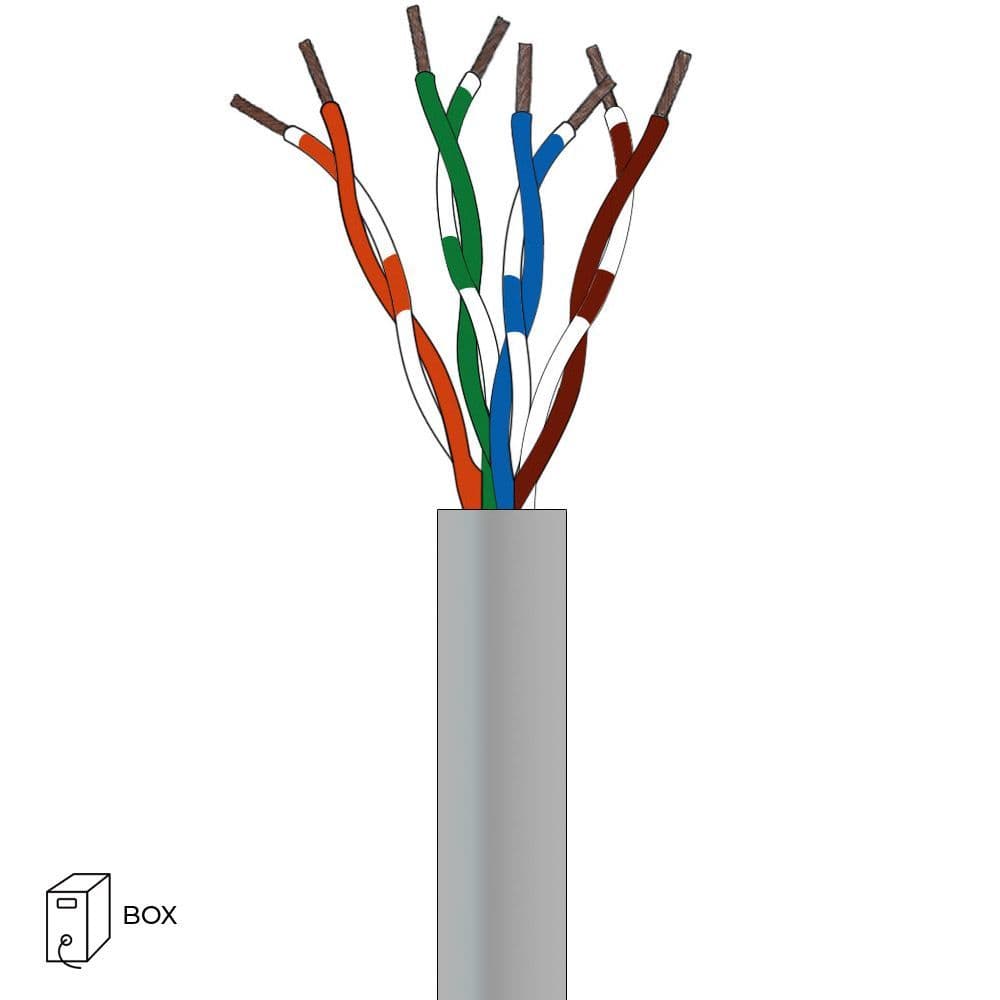

UTP CAT5e 4 Pair Patch
350MHz 4 Pair 24AWG Stranded Conductor CAT5e [ISO/IEC11801, TIA/EIA568B]
Physical Characteristics
- Conductor: Stranded Bare Copper Wire
- Size: 24AWG (7/0.20 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE (High Density Polyethylene) Ø 0.87mm (±0.02mm)
- Screening: none
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø 5.10mm
- Sheath Colours: Grey
- Weight: 40kg/km
LSZH Sheath meets
- IEC60332-1 [Flame Propagation]
- IEC60754 [Halogen Free]
- IEC61034 [Smoke Emissions]
Electrical Characteristics
- Conductor DC Resistance: 93.8 [Ω/km]
- Conductor Resistance Unbalance: 2.5% Max
- Characteristic Impedance: 100Ω (±15)
- Velocity Ratio: 65%
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
2.0 |
65.3 |
62.3 |
61.0 |
64.0 |
| 4 |
23.0 |
4.1 |
56.3 |
53.3 |
49.0 |
52.0 |
| 8 |
24.5 |
5.8 |
51.8 |
48.8 |
42.9 |
45.9 |
| 10 |
25.0 |
6.5 |
50.3 |
47.3 |
41.0 |
44.0 |
| 16 |
25.0 |
8.2 |
47.2 |
44.4 |
36.9 |
39.9 |
| 20 |
25.0 |
9.3 |
45.8 |
42.8 |
35.0 |
38.0 |
| 25 |
24.3 |
10.4 |
44.3 |
41.3 |
33.0 |
35.8 |
| 31.25 |
23.6 |
11.7 |
42.9 |
39.9 |
31.1 |
34.1 |
| 62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
25.1 |
28.1 |
| 100 |
20.1 |
22.0 |
35.3 |
32.3 |
21.0 |
24.0 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange. White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
