4 Pair Solid Conductor BS5839-1:2002 PH120 Fire Performance Cable
Quality Connectivity FireQing Data cable is designed to function in the event of a fire, enabling continued operation of monitoring equipment Designed to carry high rates of data as close to CAT5e as possible. It has been tested at CAT5e speeds up to a maximum of 90mtrs.

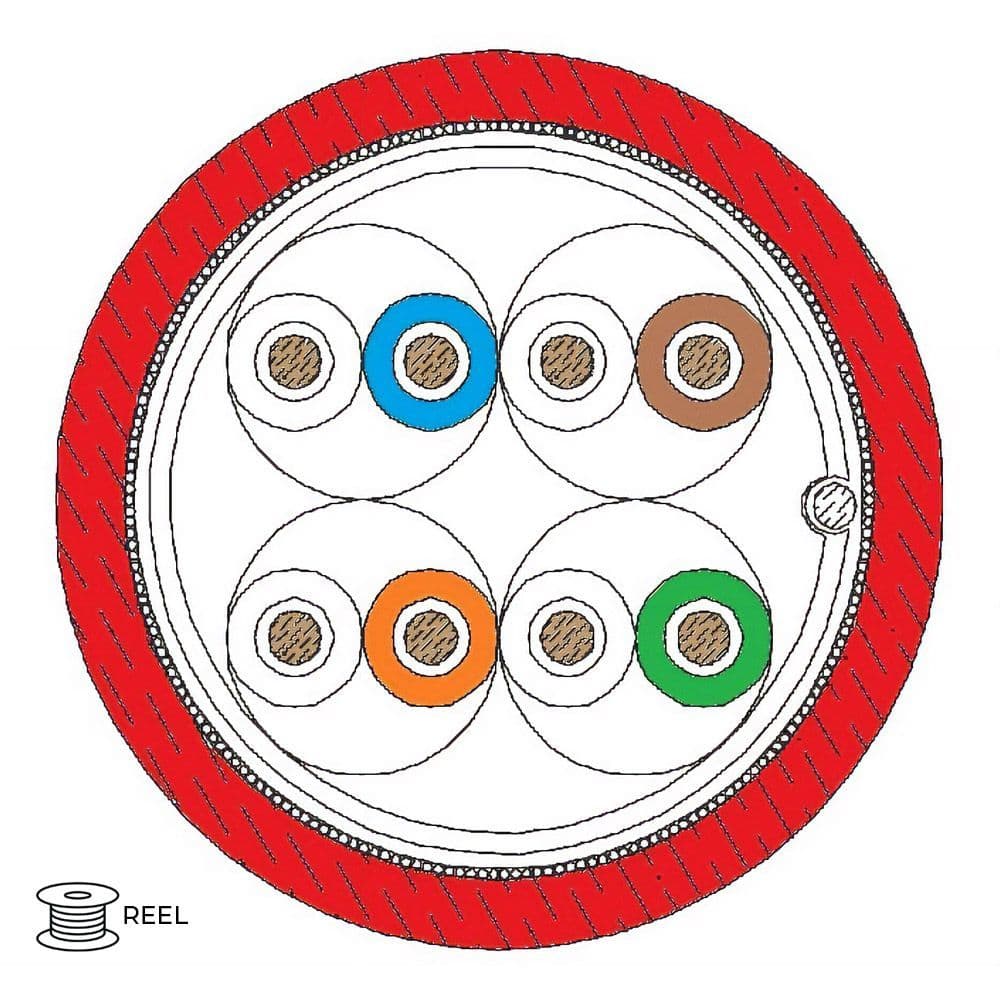

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 1/0.63 - ±0.01
- Nº of Pairs: 4 Pairs
- Insulation 1: LSZH PP Thermoplastic compound
- Insulation 2: LSZH silicone rubber
- Close Weave Glass Tape: ≥115%
- Screen 1: Al-Pet Tape ≥115% With 7/0.30mm Copper Drain Wire
- Screen 2: Tinned Copper Wire Braid 72% [±5%]
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen) thermoplastic compound
- Outer Sheath Dimensions: Ø10.20mm [±0.20mm]
- Sheath Colours: Red [RAL3000]
- EN50575 CPR Class: B2ca-s1a,d1,a1
Fire Performance
- Duration 120 min. at 830 °C. (- 0 ÷ + 40 °C) PH120 [CEI EN50200]
- Duration 180 min. at 750 °C FE180 [IEC 60331-21 - VDE 472-814]
Electrical Characteristics
- Conductor DC Resistance: < 120 Ω/km (loop)
- Velocity Ratio: 69%
- Characteristic Impedance 1.0 - 100MHz: 100Ω (±15)
- Operating Temperature: -40°C - +75°C
- Rated Voltage: 400V
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 4 |
23.0 |
4.1 |
56.3 |
53.3 |
49.0 |
52.0 |
| 10 |
25.0 |
6.5 |
50.3 |
47.3 |
41.0 |
44.0 |
| 16 |
25.0 |
8.3 |
47.2 |
44.2 |
36.9 |
39.9 |
| 31.25 |
23.6 |
11.7 |
42.9 |
39.9 |
31.1 |
34.1 |
| 62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
25.1 |
28.1 |
| 100 |
20.1 |
22.0 |
35.3 |
32.3 |
21.0 |
24.0 |
Colour Code
- Pair 1: Blue, White
- Pair 2: Orange. White
- Pair 3: Green, White
- Pair 4: Brown, Whit
