F-UTP CAT6
250MHz 4 Pair 23AWG Solid Conductor CAT6 [ISO/IEC11801, TIA/EIA568B]
Quality Connectivity Structured Wiring range is designed to offer higher performance than the standard Category 6 cables available today. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage .
These cables exceed performance standards for TIA/EIA 568-C.2 Category 6, ISO/IEC 11801 Ed2 Class E; and EN 50173-1:2011.
Cables supplied in 305m reelex boxes are sequentially meter marked to ensure you always know the amount of cable remaining at your disposal, sheath printing includes batch marking for full quality traceability.
In addition to the CAT6 F-UTP Cables described here, we also stock CAT5e U-UTP and F-UTP Cables, CAT6 UTP, CAT6A, CAT7, and CAT7A.

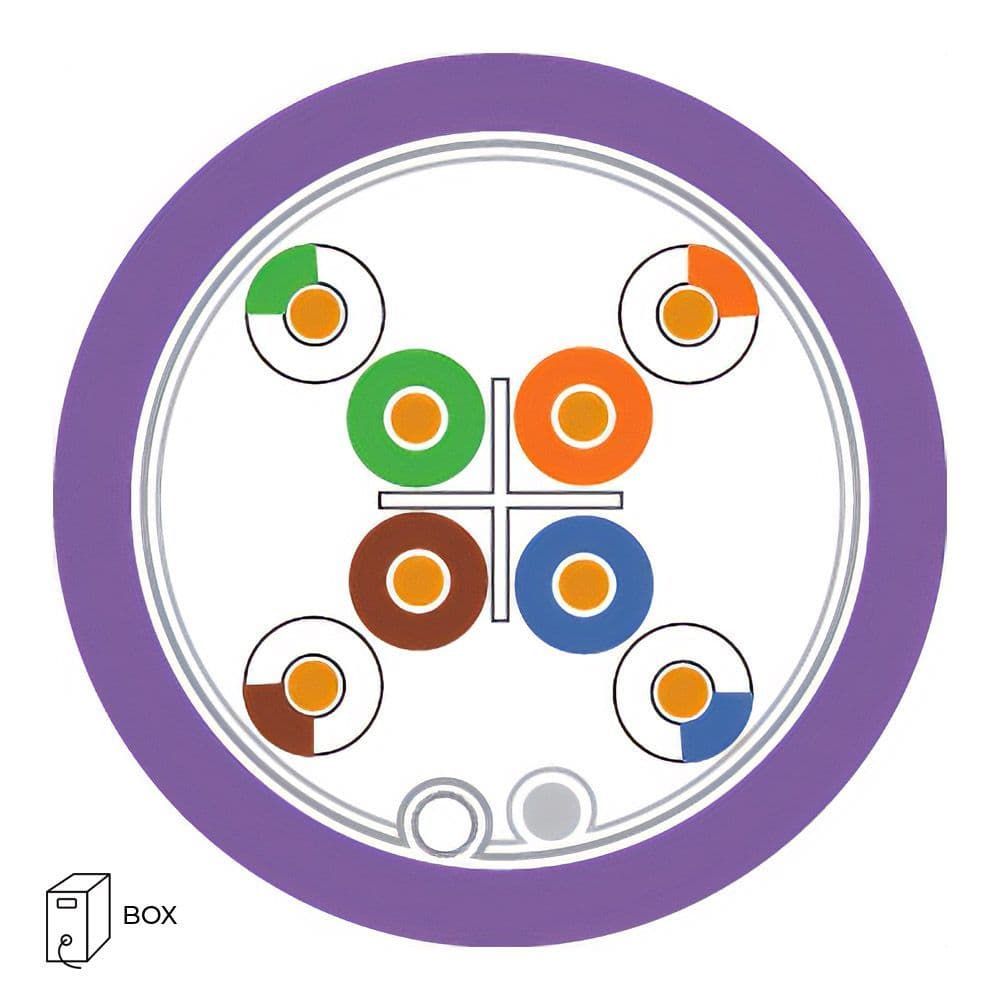

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.565 - ±0.005)
- Nº of Pairs: 4 Pairs [w/ Plastic Separator]
- Insulation: HDPE (High Density Polyethylene) Ø 1.008mm (±0.02mm)
- Screening: Alu Foil [+23AWG Drain Wire]
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø7.40mm (±0.3mm)
- Sheath Colours: Purple, Orange, Blue, Green, Red or Yellow
- EN50575 CPR Class: Dca, s2,d2,a1
- Weight: 65kg/km
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- CIBSE TM65 Embodied Carbon per 305m box: 110kg CO2e
LSZH Sheath meets
- IEC60332-1 [Flame Propagation]
- IEC60754 [Halogen Free]
- IEC61034 [Smoke Emissions]
Electrical Characteristics
- Conductor DC Resistance: 93.8 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Capacative unbalance to earth: 330pf/100m
- Characteristic Impedance 1.0 - 250MHz: 100Ω (±15), 350 - 400MHz: 100Ω (±20), 450 - 550MHz: 100Ω (±22)
- Velocity Ratio: 65%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
1.9 |
74.0 |
7.3 |
65.0 |
68.0 |
| 4 |
23.0 |
3.7 |
65.0 |
63.3 |
53.0 |
56.0 |
| 8 |
24.5 |
5.3 |
60.7 |
58.8 |
56.9 |
49.9 |
| 10 |
25.0 |
5.9 |
59.0 |
57.3 |
45.0 |
48.0 |
| 16 |
25.0 |
7.5 |
56.0 |
54.2 |
40.9 |
43.9 |
| 20 |
25.0 |
8.4 |
55.0 |
52.8 |
39.0 |
42.0 |
| 25 |
24.3 |
9.5 |
53.3 |
51.3 |
37.0 |
40.0 |
| 31.25 |
23.6 |
10.6 |
52.0 |
49.9 |
35.1 |
38.1 |
| 62.5 |
21.5 |
15.4 |
47.0 |
45.4 |
29.1 |
32.1 |
| 100 |
20.1 |
19.8 |
44.0 |
42.3 |
25.0 |
28.0 |
| 200 |
18.0 |
29.0 |
40.0 |
37.8 |
19.0 |
22.0 |
| 250 |
17.3 |
32.8 |
38.0 |
36.3 |
17.0 |
20.0 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
