U-UTP CAT6 4 Pair CPR Class: B2ca, s1a, d1, a1
250MHz 4 Pair 23AWG Solid Conductor CAT6 [ISO/IEC11801, TIA/EIA568B]
Where high performance to CPR standards is required, this U-UTP CAT6 4 Pair cable will meet your needs having achieved CPR EuroClass B2ca [AVCP System 1+.] Low levels of smoke emission, flaming droplets, and acid gas production mean that this cable exceeds the requirements of BS6701 Amendment 1 so can be specified in your installation with complete peace of mind.
Our structured wiring range also includes: CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT6A, and CAT7A.

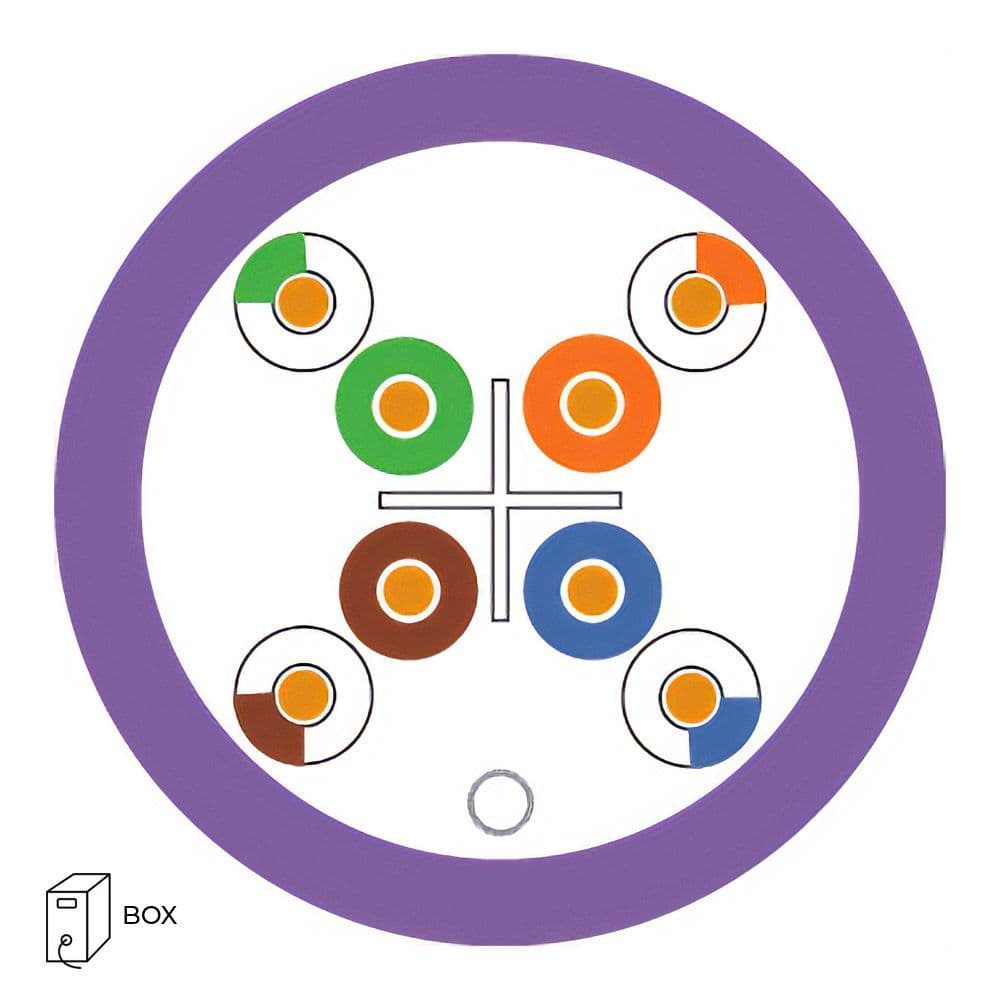

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.54 - ±0.005)
- Nº of Pairs: 4 Pairs [w/ Plastic Separator]
- Insulation: HDPE (High Density Polyethylene) Ø 1.05mm (±0.02mm)
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø7.60mm (±0.3mm)
- Nominal Thickness: 0.60mm (±0.05)
- EN50575 CPR Class: B2ca S1a d1 a1
- Sheath Colours: Purple or Orange
- Operating Temperature: -40°C - +60°C
- Installation Temperature: -30°C - +65°C
Electrical Characteristics
- Conductor DC Resistance: 88.4 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Capacitive unbalance to earth: 330pf/100m
- Characteristic Impedance: 1.0 - 100MHz: 100Ω (±15), 100 - 250MHz: 100Ω (±20)
- Velocity Ratio: 70%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 4 |
23.0 |
3.8 |
66.3 |
63.3 |
53.0 |
56.0 |
| 10 |
25.0 |
6.0 |
60.3 |
57.3 |
45.0 |
48.0 |
| 16 |
25.0 |
7.6 |
57.2 |
54.2 |
40.9 |
43.9 |
| 20 |
25.0 |
8.5 |
55.8 |
52.8 |
39.0 |
42.0 |
| 31.25 |
23.6 |
10.7 |
52.9 |
49.9 |
35.1 |
38.1 |
| 32.5 |
21.5 |
15.5 |
48.4 |
45.4 |
19.1 |
32.1 |
| 100 |
20.1 |
19.9 |
45.3 |
42.3 |
25.0 |
28.0 |
| 200 |
18.0 |
29.1 |
40.8 |
37.8 |
19.0 |
22.0 |
| 250 |
17.3 |
33.0 |
39.3 |
36.3 |
17.0 |
20.0 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
