250MHz 4 Pair 23AWG Solid Conductor CAT6 [ISO/IEC11801, TIA/EIA568C.2]
Data Rate: 1000Base-T. Max Transmission Rate: 1000Mbps
Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.57 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE Ø 0.98mm (±0.02mm)
- Outer Sheath Material: PE (Polyethylene)
- Outer Sheath Dimensions: Ø6.50mm Nominal Thickness 0.55mm (±0.05)
- Sheath Colours: Black or White (UV Resistant to ISO4892-3)
- Weight: 58kg/km
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- EN50575 CPR Class: Fca
- CIBSE TM65 Embodied Carbon per 305m box: 69kgCO2e
Electrical Characteristics
- Conductor DC Resistance 93.8 [Ω/km]
- Conductor Resistance Unbalance (%) Max 5.0
- Characteristic Impedance 100Ω (±15)
- Velocity Ratio 72%
- Operating Temperature -40°C - +75°C
- Voltage 600V
- Spark Test 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
2.0 |
74.3 |
72.3 |
64.8 |
67.8 |
| 4 |
23.0 |
3.8 |
65.3 |
63.3 |
52.8 |
55.8 |
| 10 |
25.0 |
5.3 |
59.3 |
57.3 |
44.8 |
47.8 |
| 20 |
25.0 |
8.5 |
54.8 |
52.8 |
38.8 |
41.8 |
| 62.5 |
21.5 |
15.4 |
47.4 |
45.4 |
29.1 |
42.0 |
| 100 |
20.1 |
19.8 |
44.3 |
42.3 |
25.0 |
27.8 |
| 150 |
18.9 |
24.7 |
41.7 |
39.7 |
21.3 |
24.3 |
| 200 |
18.0 |
29.0 |
39.8 |
37.8 |
19.0 |
21.8 |
| 250 |
17.3 |
32.8 |
38.3 |
36.3 |
17.0 |
20.4 |

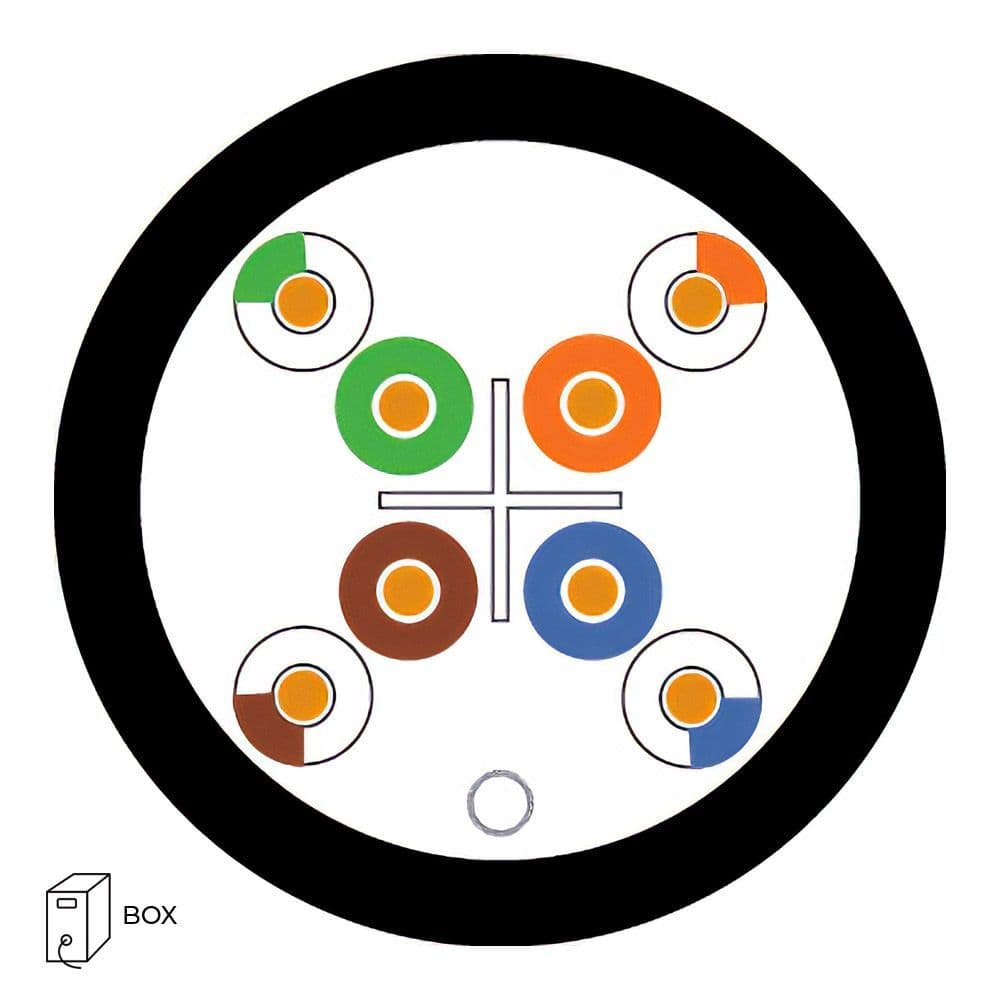

Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
