4 Pair Solid Conductor BS5839-1:2002 PH120 Fire Performance Cable
Quality Connectivity FireQing Data cable is designed to function in the event of a fire, enabling continued operation of monitoring equipment @ 100-Base-T. Designed to carry high rates of data as close to CAT6 as possible. It has been tested at CAT6 speeds up to a maximum of 90mtrs.

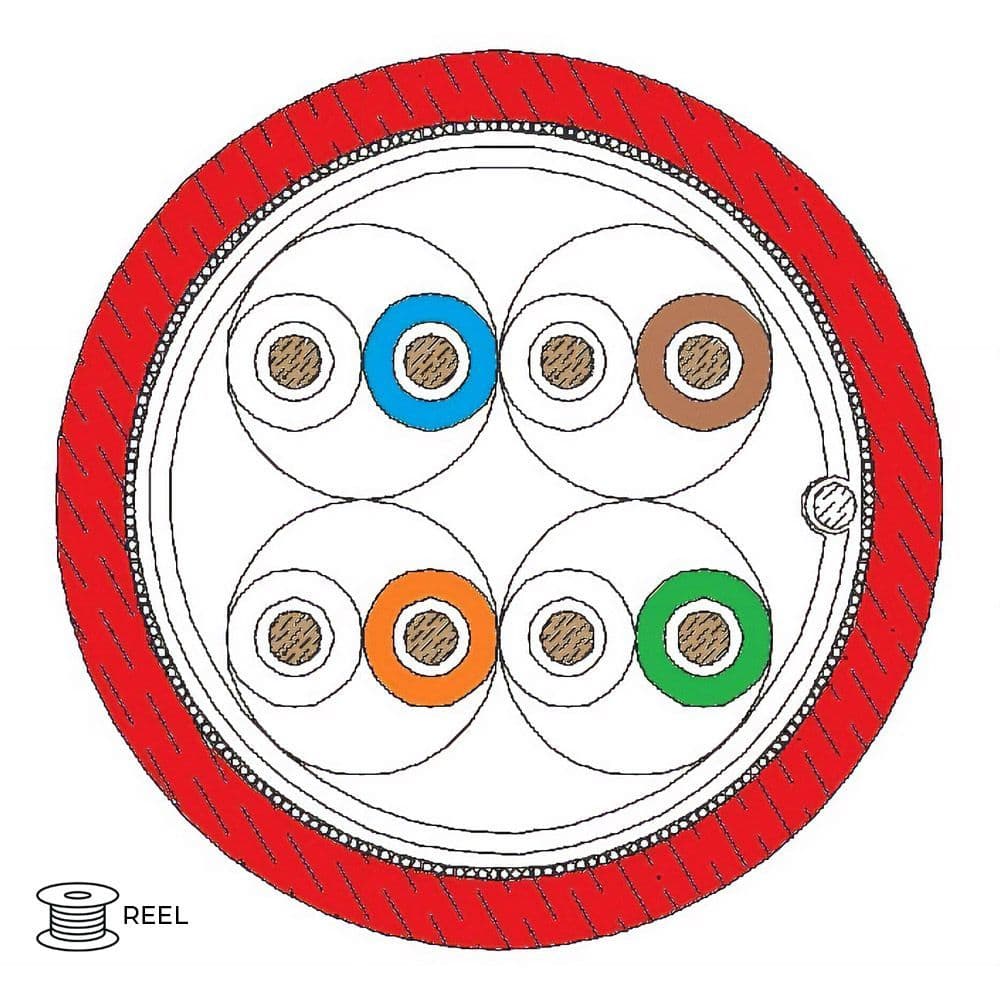

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG
- Nº of Pairs: 4 Pairs
- Insulation: LSZH PP Thermoplastic compound
- Close Weave Glass Tape: ≥115%
- Individual Pair Screening: Al-Pet Tape ≥115%
- Overall Shield Tinned Copper Wire Braid
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen) thermoplastic compound
- Outer Sheath Dimensions: Ø9.10mm [±0.20mm]
- Sheath Colours: Red [RAL3000]
- EN50575 CPR Class: Cca-s1,d2,a1
Electrical Characteristics
- Conductor DC Resistance: < 78 Ω/km
- Velocity Ratio: 65%
- Characteristic Impedance 1.0 - 100MHz: 100Ω (±15)
- Operating Temperature: -40°C - +75°C
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
22.0 |
2.0 |
98.0 |
95.0 |
85.0 |
88.0 |
| 4 |
25.0 |
3.7 |
98.0 |
95.0 |
73.0 |
76.0 |
| 10 |
28.0 |
5.6 |
98.0 |
95.0 |
65.0 |
68.0 |
| 20 |
28.0 |
7.9 |
93.0 |
90.0 |
59.0 |
62.0 |
| 30 |
27.0 |
9.7 |
88.0 |
85.0 |
55.4 |
58.4 |
| 100 |
24.0 |
18.0 |
83.0 |
80.0 |
45.0 |
48.0 |
| 150 |
22.0 |
22.4 |
81.0 |
78.0 |
41.5 |
44.5 |
| 200 |
21.0 |
26.0 |
81.0 |
78.0 |
49.0 |
42.0 |
| 250 |
20.0 |
29.4 |
78.0 |
75.0 |
37.0 |
40.0 |
| 300 |
19.0 |
32.5 |
78.0 |
75.0 |
35.5 |
38.5 |
| 400 |
19.0 |
38.0 |
73.0 |
70.0 |
33.0 |
36.0 |
| 500 |
19.0 |
43.0 |
73.0 |
70.0 |
31.0 |
34.0 |
Colour Code
- Pair 1: Blue, White
- Pair 2: Orange. White
- Pair 3: Green, White
- Pair 4: Brown, White
