F-FTP CAT6A 4 Pair CPR Class: B2ca, s1a, d1, a1
500MHz 4 Pair 23AWG Solid Conductor CAT6A Individual /Overall Foil Screened [TIA/EIA568-C.2, ISO/IEC11801] 10 Gigabit Ethernet [10GbaseT / 10Gbps]
Where high performance to CPR standards is required, this F-FTP CAT6 4 Pair cable will meet your needs having achieved CPR EuroClass B2ca [AVCP System 1+.]
Low levels of smoke emission, flaming droplets, and acid gas production mean that this cable exceeds the requirements of BS6701. Amendment 1 so can be specified in your installation with complete peace of mind.
Our structured wiring range also includes: CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT6A, and CAT7A.

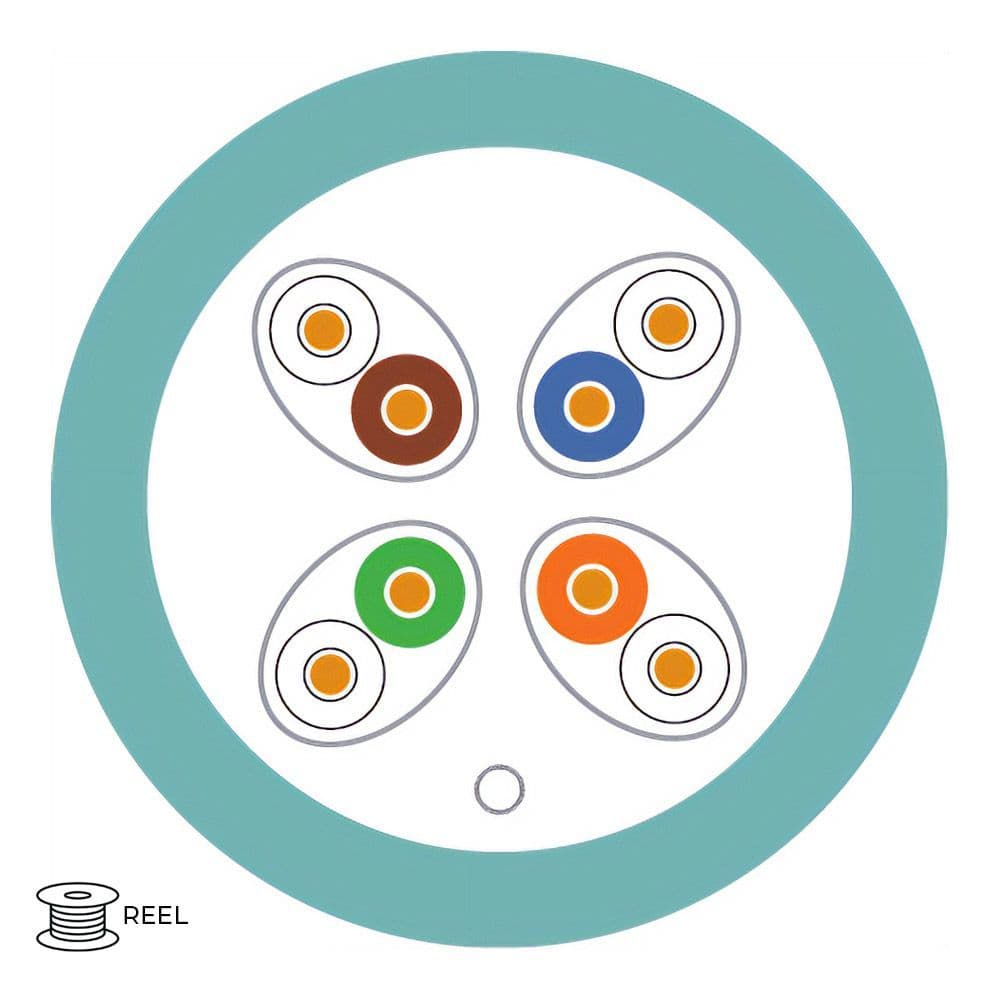

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.55 - ±0.005)
- Nº of Pairs: 4 Pairs [w/ Plastic Separator]
- Insulation: HDPE (High Density Polyethylene) Ø 1.30mm (±0.02mm)
- Screening: Individual and Overall Alu Foil [+ common 0.4mm Drain Wire]
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø7.60mm (±0.3mm)
- Nominal Thickness: 0.60mm (±0.05)
- EN50575 CPR Class: B2ca S1a, d1, a1
- Sheath Colours: ICE Blue
- Operating Temperature: -40°C - +60°C
- Installation Temperature: -30°C - +65°C
Electrical Characteristics
- Conductor DC Resistance: 72 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Characteristic Impedance: 1.0 - 100MHz: 100Ω (±15), 100 - 250MHz: 100Ω (±20)
- Velocity Ratio: 65%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20 |
1.9 |
74.0 |
72.3 |
65.0 |
68.0 |
| 4 |
23.0 |
3.7 |
65.0 |
63.3 |
53.0 |
56.0 |
| 8 |
24.5 |
5.3 |
60.7 |
58.8 |
56.9 |
49.9 |
| 10 |
25.0 |
5.9 |
59.0 |
57.3 |
45.0 |
48.0 |
| 16 |
25.0 |
7.5 |
56.0 |
54.2 |
40.9 |
43.9 |
| 20 |
25.0 |
8.4 |
55.0 |
52.8 |
39.0 |
42.0 |
| 25 |
24.3 |
9.5 |
53.3 |
51.3 |
37.0 |
40.0 |
| 31.25 |
23.6 |
10.6 |
52.0 |
49.9 |
35.1 |
38.1 |
| 62.5 |
21.5 |
15.4 |
47.0 |
45.4 |
29.1 |
32.1 |
| 100 |
20.1 |
19.8 |
44.0 |
42.3 |
25.0 |
28.0 |
| 200 |
18.0 |
29.0 |
40.0 |
37.8 |
19.0 |
22.0 |
| 250 |
17.3 |
32.8 |
38.0 |
36.3 |
17.0 |
20.0 |
| 300 |
16.8 |
34.3 |
37.1 |
35.1 |
15.5 |
18.5 |
| 500 |
15.2 |
45.3 |
33.8 |
31.8 |
11.0 |
14.0 |
Colour Code
- Pair 1: Blue, White
- Pair 2: Orange. White
- Pair 3: Green, White
- Pair 4: Brown, White
