500MHzU-FTP CAT6A 4 Pair SWA
500MHz 4 Pair 23AWG Solid Conductor CAT6A Individual Foil Screened [TIA/EIA568-C.2, ISO/IEC11801] 10 Gigabit Ethernet
Quality Connectivity Structured Wiring range is designed to offer higher performance than the standard Category 6A cables available today. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage.
These cables exceed performance standards for TIA/EIA 568-C.2 Category 6a, ISO/IEC 11801 Ed2 Class Ea; and EN 50173-1:2011. Sequential meter marking and batch marking for full quality traceability are standard.
In addition to the CAT6A Cable described here, we also stock CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT6A U-UTP and F-FTP, CAT7A, and CAT8.1.

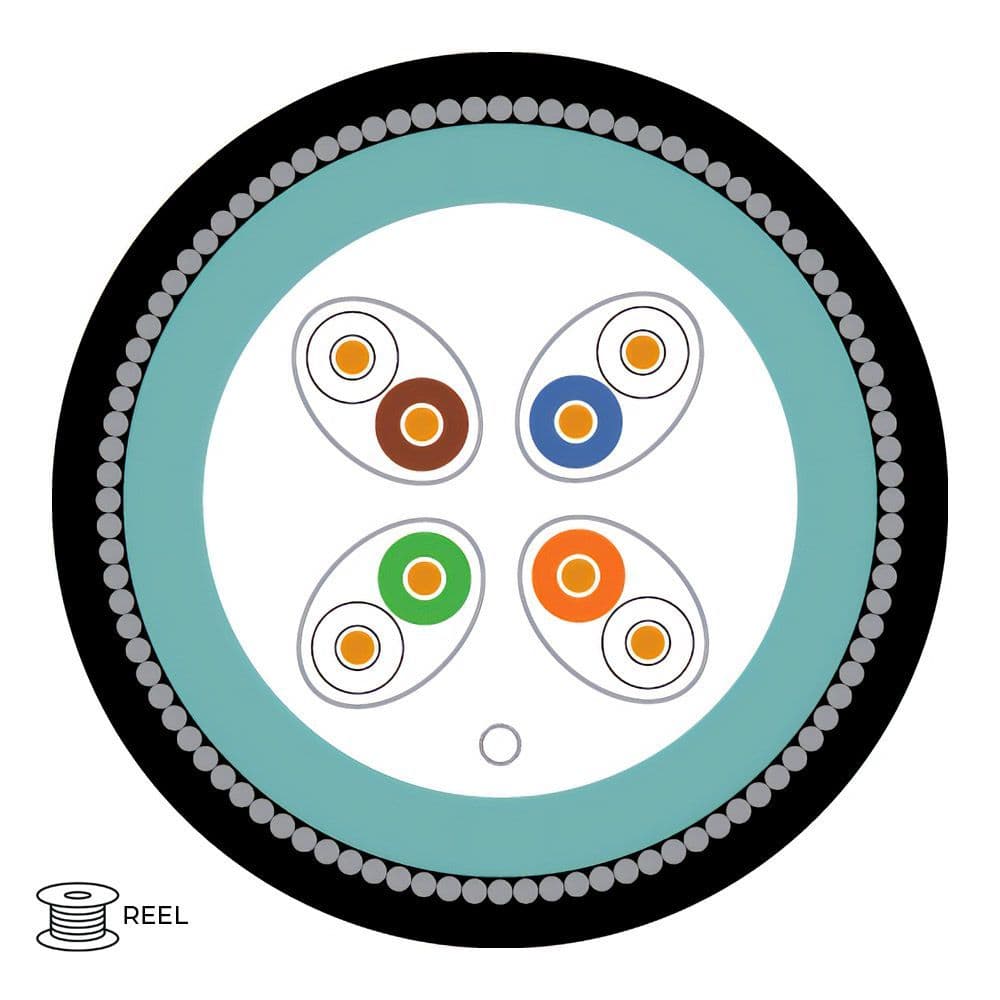

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.56 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE (High Density Polyethylene) Ø 1.33mm (±0.05mm)
- Screening: Individual Alu Foil [+ common23AWG Drain Wire]
- Inner Sheath Material: LSZH (Low Smoke Zero Halogen) Ø 8.3mm Blue [RAL5015]
- Armouring: SWA (Steel Wire Armour)
- Outer Sheath Material: UV Resistant LSZH
- Outer Sheath Dimensions: Ø12.20mm (±0.5mm)
- Sheath Colours: Black
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- EN50575 CPR Class: Fca
LSZH Sheath meets
- IEC60332-1 [Flame Propagation]
- IEC60754 [Halogen Free]
- IEC61034 [Smoke Emissions]
Electrical Characteristics
- Conductor DC Resistance: 72 [Ω/km]
- Conductor Resistance Unbalance: 5.0% Max
- Characteristic Impedance: 100Ω (±15)
- Velocity Ratio: 65%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20.0 |
1.9 |
74.0 |
72.3 |
65.0 |
68.0 |
| 4 |
23.0 |
3.7 |
65.0 |
63.3 |
53.0 |
56.0 |
| 8 |
24.5 |
5.3 |
60.7 |
58.8 |
56.9 |
49.9 |
| 10 |
25.0 |
5.9 |
59.0 |
57.3 |
45.0 |
48.0 |
| 16 |
25.0 |
7.5 |
56.0 |
54.2 |
40.9 |
43.9 |
| 20 |
25.0 |
8.4 |
55.0 |
52.8 |
39.0 |
42.0 |
| 25 |
24.3 |
9.5 |
53.3 |
51.3 |
37.0 |
40.0 |
| 31.25 |
23.6 |
10.6 |
52.0 |
49.9 |
35.1 |
38.1 |
| 62.5 |
21.5 |
15.4 |
47.0 |
45.4 |
29.1 |
32.1 |
| 100 |
20.1 |
19.8 |
44.0 |
42.3 |
25.0 |
28.0 |
| 200 |
18.0 |
29.0 |
40.0 |
37.8 |
19.0 |
22.0 |
| 250 |
17.3 |
32.8 |
38.0 |
36.3 |
17.0 |
20.0 |
| 300 |
16.8 |
36.4 |
37.1 |
34.1 |
15.5 |
18.5 |
| 500 |
15.2 |
48.9 |
33.8 |
30.8 |
11.0 |
14.0 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
