500MHz U-UTP CAT6A 4 Pair LSZH
500MHz 4 Pair 23AWG Solid Conductor CAT6A [TIA/EIA568-C.2, ISO/IEC11801] 10 Gigabit Ethernet [10GbaseT / 10Gbps]
Quality Connectivity Structured Wiring range is designed to offer higher performance than the standard Category 6A cables available today. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage.
These cables exceed performance standards for TIA/EIA 568-C.2 Category 6a, ISO/IEC 11801 Ed2 Class Ea; and EN 50173-1:2011. Sequential meter marking and batch marking for full quality traceability are standard.
In addition to the CAT6A Cable described here, we also stock CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT7, and CAT7A.
Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.565 - ±0.005)
- Nº of Pairs: 4 Pairs
- Insulation: HDPE (High Density Polyethylene) Ø 1.01mm (±0.05mm)
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø6.90mm (±0.5mm)
- Nominal Thickness: 0.65mm (±0.05)
- Sheath Colours: Blue [RAL5015]
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
- EN50575 CPR Class: Dca,s2,d2,a1
LSZH Sheath meets
- IEC60332-1 [Flame Propagation]
- IEC60754 [Halogen Free]
- IEC61034 [Smoke Emissions]
Electrical Characteristics
- Conductor DC Resistance: 93.8 [Ω/km]
- Conductor Resistance Unbalance: 2.0% Max
- Characteristic Impedance: 100Ω (±15)
- Velocity Ratio: 68%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
| 1 |
20.0 |
1.9 |
74.0 |
72.3 |
65.0 |
68.0 |
| 4 |
23.0 |
3.7 |
65.0 |
63.3 |
53.0 |
56.0 |
| 8 |
24.5 |
5.3 |
60.7 |
58.8 |
56.9 |
49.9 |
| 10 |
25.0 |
5.9 |
59.0 |
57.3 |
45.0 |
48.0 |
| 16 |
25.0 |
7.5 |
56.0 |
54.2 |
40.9 |
43.9 |
| 20 |
25.0 |
8.4 |
55.0 |
52.8 |
39.0 |
42.0 |
| 25 |
24.3 |
9.5 |
53.3 |
51.3 |
37.0 |
40.0 |
| 31.25 |
23.6 |
10.6 |
52.0 |
49.9 |
35.1 |
38.1 |
| 62.5 |
21.5 |
15.4 |
47.0 |
45.4 |
29.1 |
32.1 |
| 100 |
20.1 |
19.8 |
44.0 |
42.3 |
25.0 |
28.0 |
| 200 |
18.0 |
29.0 |
40.0 |
37.8 |
19.0 |
22.0 |
| 250 |
17.3 |
32.8 |
38.0 |
36.3 |
17.0 |
20.0 |
| 300 |
16.8 |
36.4 |
37.1 |
34.1 |
15.5 |
18.5 |
| 500 |
15.2 |
48.9 |
33.8 |
30.8 |
11.0 |
14.0 |

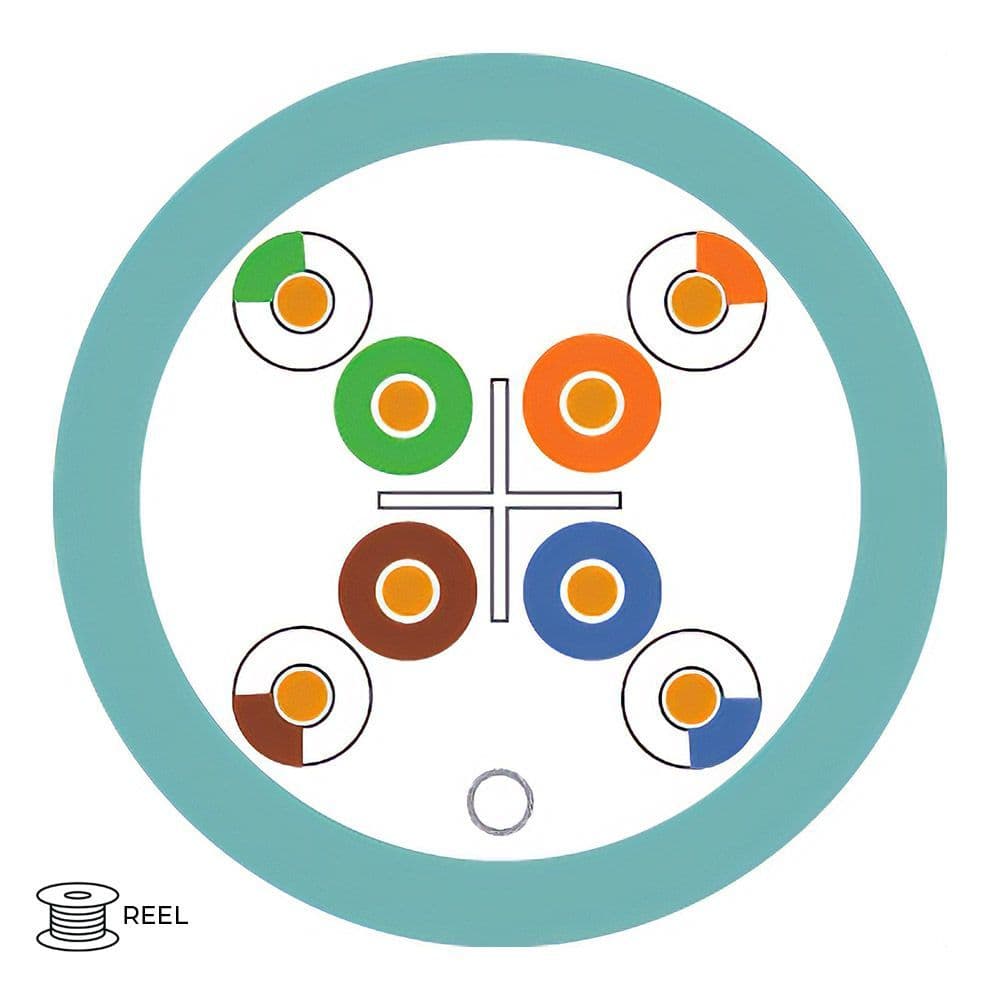

Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange, White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
