1000MHz S-FTP CAT7A 4 Pair
1000MHz 4 Pair 23AWG Solid Conductor CAT7A Individual Foil & Overall Braid Screen [ISO/IEC61156-5] 10 Gigabit Ethernet [10GbaseT / 10Gbps]
Quality Connectivity Structured Wiring range is designed to offer higher performance than the standard Category 7 cables available today. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage.
These cables exceed performance standards for TIA/EIA 568-C.2 Category 7, ISO/IEC 11801 Ed2 Class F; and EN 50173-1:2011. Sequential meter marking and batch marking for full quality traceability are standard.
In addition to the CAT7 Cable described here, we also stock CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT6A, and CAT7.

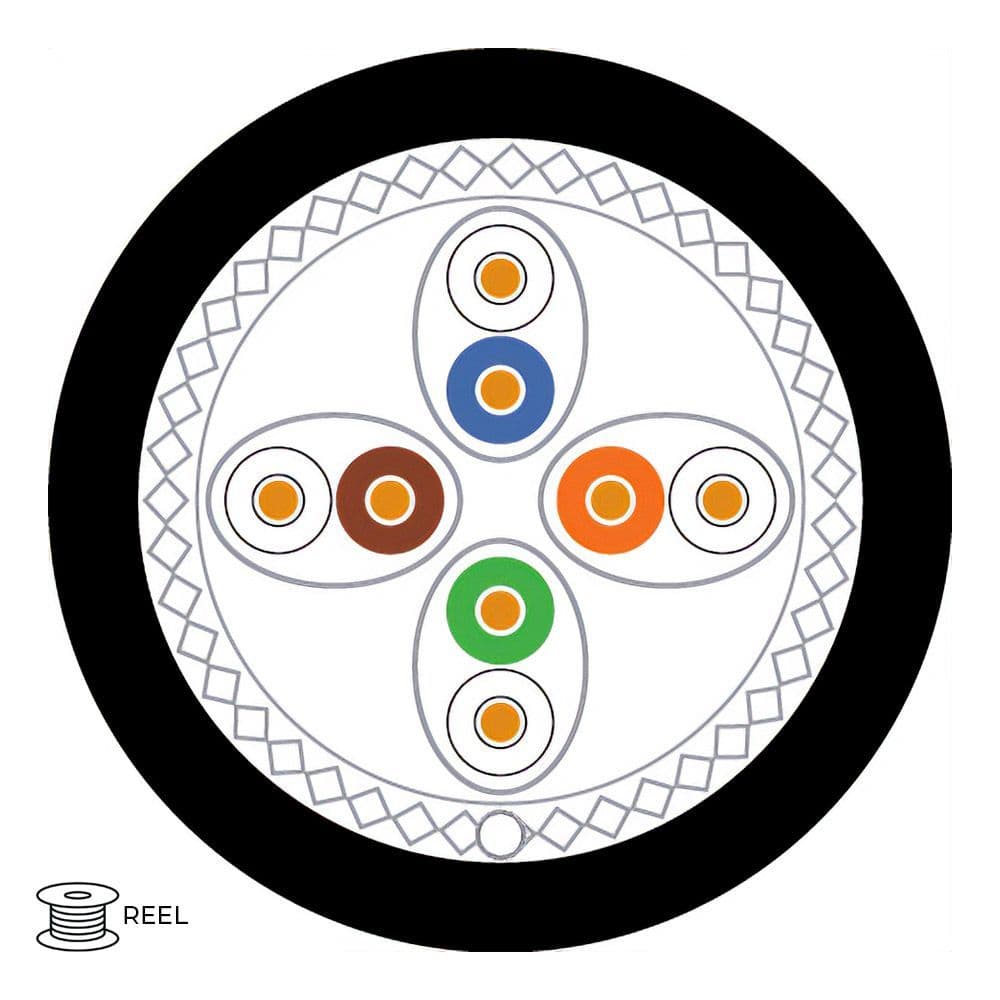

Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.58 - ±0.005)
- Insulation: Skin-Foam-Skin PE (Polyethylene) Ø 1.35mm (±0.05mm)
- Individual Screening: Alu Foil [+ common23AWG Drain Wire]
- Overall Screening: Tinned Copper Wire Braid
- Outer Sheath Material: Black External UV Resistant PE (Polyethylene)
- Outer Sheath Dimensions: Ø7.90mm (±0.5mm), Nominal Thickness 0.55mm (±0.05)
- EN50575 CPR Class: Fca
- Weight: 70kg/km
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
Electrical Characteristics
- Conductor DC Resistance: 95 [Ω/km]
- Conductor Resistance Unbalance: 2.0% Max
- Characteristic Impedance: 1-100MHz - 100Ω (±15), 100-250MHz - 100Ω (±18), 250-600MHz - 100Ω (±25)
- Velocity Ratio: 70%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
PSELFEXT (dB) ≥ |
ELFEXT (dB) ≥ |
DELAY ns ≤ |
| 1 |
20.0 |
2.0 |
78.0 |
75.0 |
75.0 |
78.0 |
570.0 |
| 4 |
23.0 |
3.7 |
78.0 |
75.0 |
75.0 |
78.0 |
552.0 |
| 8 |
24.5 |
5.3 |
78.0 |
75.0 |
72.9 |
75.9 |
546.7 |
| 10 |
25.0 |
5.9 |
78.0 |
75.0 |
71.0 |
74.0 |
545.4 |
| 16 |
25.0 |
7.5 |
78.0 |
75.0 |
66.9 |
69.9 |
543.0 |
| 20 |
25.0 |
8.3 |
78.0 |
75.0 |
65.0 |
68.0 |
542.0 |
| 25 |
24.3 |
9.3 |
78.0 |
75.0 |
63.0 |
66.0 |
541.2 |
| 31.25 |
23.6 |
10.5 |
78.0 |
75.0 |
61.1 |
64.1 |
540.4 |
| 62.5 |
21.5 |
14.9 |
75.5 |
72.5 |
55.1 |
58.1 |
538.6 |
| 100 |
20.1 |
19.1 |
72.4 |
69.4 |
51.0 |
54.0 |
537.6 |
| 150 |
18.9 |
23.6 |
69.8 |
66.8 |
47.2 |
50.2 |
536.9 |
| 200 |
18.0 |
27.5 |
67.9 |
64.9 |
45.0 |
48.0 |
536.5 |
| 250 |
17.3 |
31.0 |
66.4 |
63.4 |
43.0 |
46.0 |
536.3 |
| 300 |
16.8 |
34.2 |
65.2 |
62.2 |
41.5 |
44.5 |
536.1 |
| 600 |
14.7 |
50.1 |
60.7 |
57.7 |
35.4 |
38.4 |
535.5 |
| 800 |
17.3 |
58.92 |
58.9 |
55.9 |
32.9 |
35.9 |
535.3 |
| 1000 |
15.0 |
66.93 |
57.4 |
54.4 |
31.0 |
34.0 |
535.1 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange. White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
