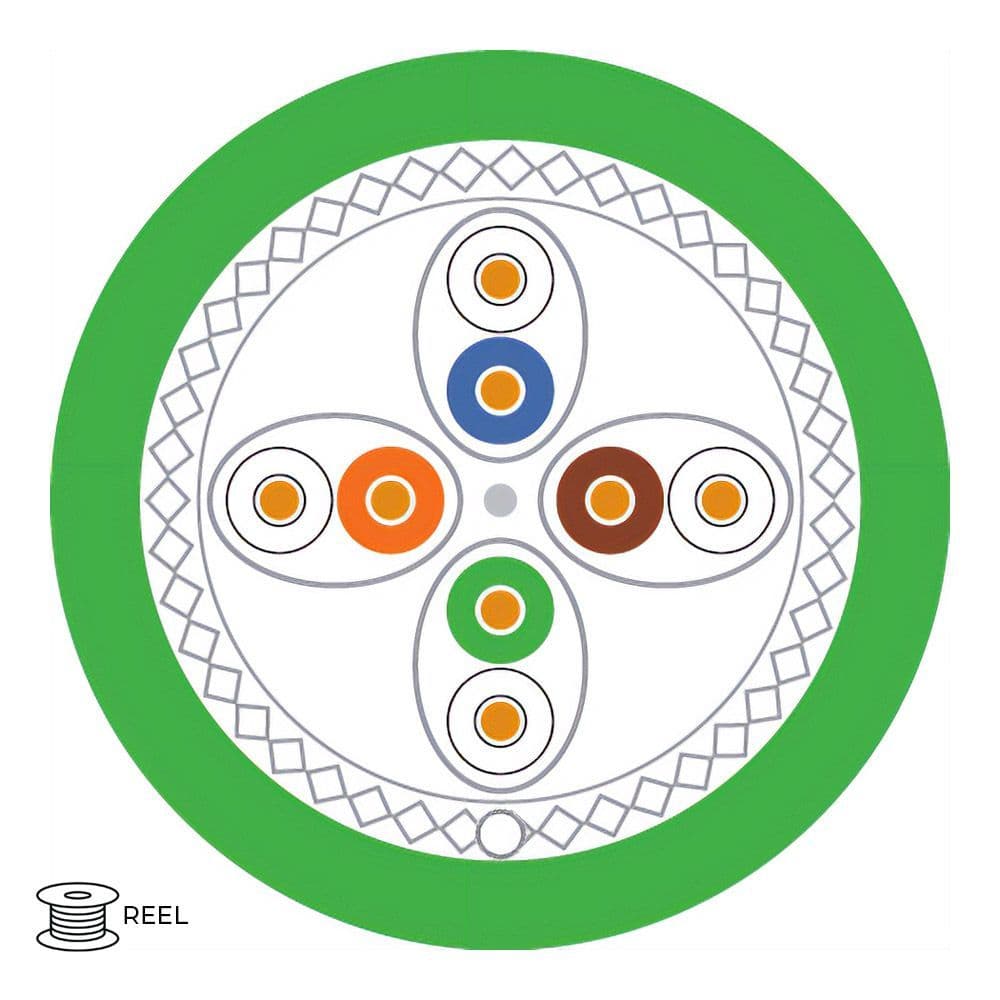

2000MHz S-FTP CAT8.1 4 Pair
2000MHz [@30mtrs] 4 Pair 23AWG Solid Conductor CAT8.1 Individual Foil & Overall Braid Screen [ISO/IEC61156-9] 25/40GbaseT - 25Gbps/40Gbps
Quality Connectivity Structured Wiring range is designed to offer higher performance. These cables are designed for faultless signal transmission and offer headroom to support today's bandwidth intensive applications for twisted pair cabling whether it be in data networks, control systems, CCTV over IP, home connectivity, or digital signage.
These cables exceed performance standards for ANSI/TIA 568.2-D, ISO/IEC 11801
Sequential meter marking and batch marking for full quality traceability are standard. Cable is stocked on 300m reels, and can be cut to length.
In addition to the CAT8 Cable described here, we also stock CAT5e UTP and FTP Cables, CAT6 UTP and FTP, CAT6A, and CAT7A.
Physical Characteristics
- Conductor: Solid Bare Copper Wire
- Size: 23AWG (1/0.596 - ±0.005)
- Insulation: Skin-Foam-Skin PE (Polyethylene) Ø 1.48mm (±0.05mm)
- Individual Screening: Alu Foil [+ common23AWG Drain Wire]
- Overall Screening: Magnesium Aluminium Wire ≥40%
- Outer Sheath Material: Green LSZH (Low Smoke Zero Halogen)
- Outer Sheath Dimensions: Ø8.00mm (±0.5mm)
- Nominal Thickness: 0.55mm (±0.05)
- EN50575 CPR Class: Dca s1,d2,a1
- Weight: 70kg/km
- Operating Temperature: -40°C - +75°C
- Installation Temperature: -30°C - +65°C
LSZH Sheath meets
- IEC60332-1 [Flame Propagation]
- IEC60754 [Halogen Free]
- IEC61034 [Smoke Emissions]
Electrical Characteristics
- Conductor DC Resistance: 95 [Ω/km]
- Conductor Resistance Unbalance: 2.0% Max
- Characteristic Impedance: 1-100MHz - 100Ω (±15), 100-250MHz - 100Ω (±18), 250-600MHz - 100Ω (±25)
- Velocity Ratio: 78%
- Voltage Rating: 600V
- Spark Test: 2.5kV
| Frequency (MHz) |
RL (dB) min ≥
|
Attenuation (dB/100m) max ≤ |
NEXT (dB) ≥ |
PSNEXT (dB) ≥ |
ACR-F (dB) ≥ |
PS ACR-F (dB) ≥ |
ACR-N (dB) ≥ |
PS ACR-N (dB) ≥ |
| 1 |
19.0 |
3.0 |
65.0 |
62.0 |
65.0 |
62.0 |
62.0 |
59.0 |
| 4 |
19.0 |
3.0 |
63.8 |
60.5 |
59.9 |
56.9 |
60.8 |
57.5 |
| 8 |
19.0 |
3.0 |
58.9 |
55.6 |
53.9 |
50.9 |
55.9 |
52.6 |
| 10 |
19.0 |
3.0 |
57.3 |
54.0 |
52.0 |
49.0 |
54.3 |
51.0 |
| 16 |
18.0 |
3.0 |
53.9 |
50.6 |
47.9 |
44.9 |
50.9 |
47.6 |
| 20 |
17.5 |
3.0 |
52.3 |
49.0 |
45.9 |
42.9 |
49.3 |
46.0 |
| 25 |
17.0 |
3.2 |
50.7 |
47.3 |
44.0 |
41.0 |
47.5 |
44.1 |
| 31.25 |
16.5 |
3.6 |
49.1 |
45.7 |
42.1 |
39.1 |
45.5 |
42.1 |
| 62.5 |
16.0 |
5.1 |
44.0 |
40.6 |
36.0 |
33.0 |
38.9 |
35.5 |
| 100 |
16.0 |
6.5 |
40.5 |
37.1 |
32.0 |
29.0 |
34.0 |
30.6 |
| 200 |
14.3 |
9.3 |
35.3 |
31.9 |
25.9 |
22.9 |
26.0 |
22.6 |
| 250 |
13.4 |
10.4 |
33.6 |
30.2 |
24.0 |
21.0 |
23.2 |
19.7 |
| 300 |
12.7 |
11.5 |
32.3 |
28.8 |
22.4 |
19.4 |
20.8 |
17.3 |
| 400 |
11.6 |
13.3 |
30.1 |
26.6 |
19.9 |
16.9 |
16.8 |
13.2 |
| 500 |
10.7 |
15.0 |
27.9 |
24.8 |
18.0 |
15.0 |
12.9 |
9.9 |
| 600 |
10.0 |
16.5 |
25.7 |
22.7 |
16.4 |
13.4 |
9.5 |
6.2 |
| 1000 |
8.0 |
22.0 |
19.3 |
16.5 |
12.0 |
9.0 |
-2.6 |
-5.5 |
| 1500 |
8.0 |
27.7 |
13.9 |
11.2 |
8.4 |
5.4 |
-13.8 |
-16.4 |
| 2000 |
8.0 |
32.7 |
9.8 |
7.3 |
5.9 |
2.9 |
-22.9 |
-25.3 |
Colour Code
- Pair 1: Blue, White/Blue
- Pair 2: Orange. White/Orange
- Pair 3: Green, White/Green
- Pair 4: Brown, White/Brown
