Quality Connectivity 14AWG 2 Core Speaker Flex Cable LSZH Purple (Reel)

Oxygen Free Copper Professional Installation Speaker Flex (Copper Purity 99.9999%)

LSZH Sheath to IEC60332-1 / IEC60754 / IEC61034

Quality Connectivity OFC “QCSound” Cable range uses the highest quality oxygen free copper to deliver optimum performance to compliment the best Hi-Fi and Home Cinema systems.

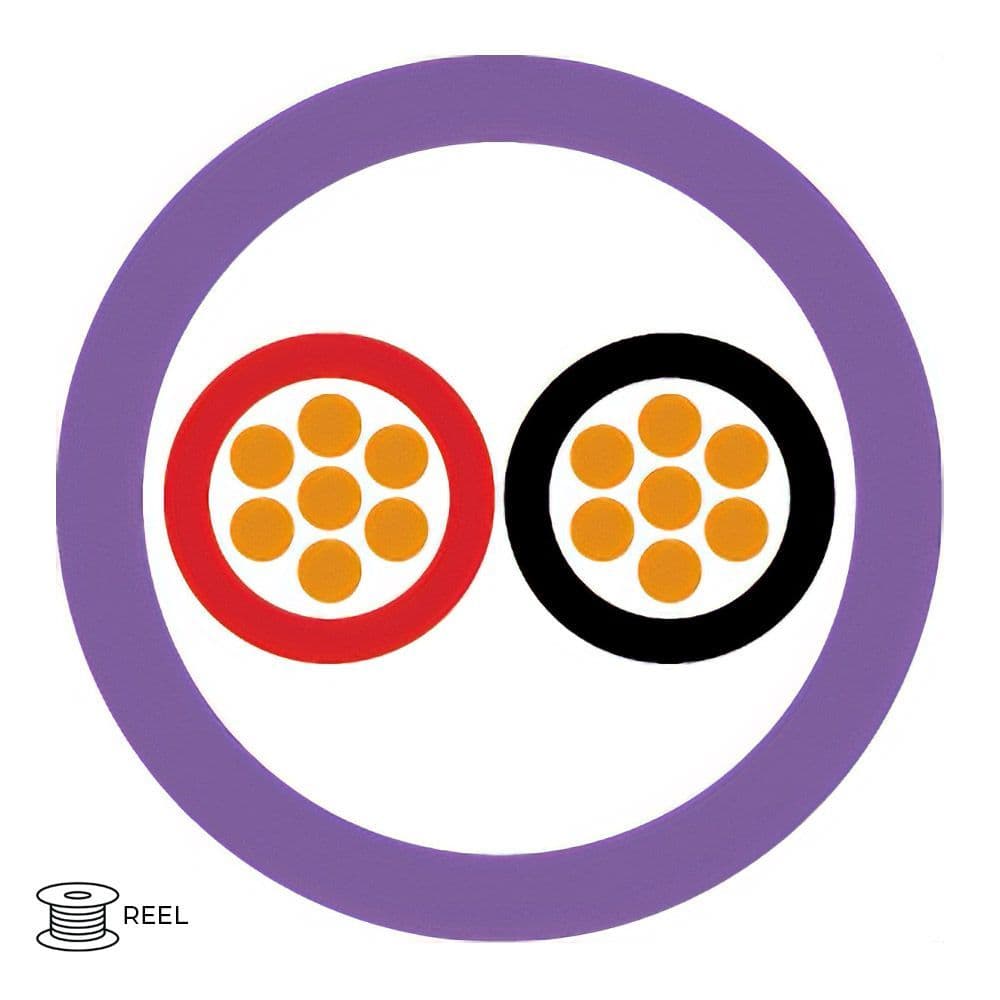

Physical Characteristics

• Conductor: Stranded Pure Copper
• Size: 14AWG [105/0.16]
• Nº of Cores: 2 Cores
• Insulation: LSZH (Low Smoke Zero Halogen) Ø2.70mm
• Filler: Cotton Rope
• LSZH Outer Sheath: Ø7.20mm
• Sheath Colours: Purple
• EN50575 CPR Class: Eca

LSZH Sheath meets

• IEC60332-1 [Flame Propagation]
• IEC60754 [Halogen Free]
• IEC61034 [Smoke Emissions]

Electrical Characteristics

• Conductor DC Res.: <9.2 Ω/km
• Rated Temperature: -20°C  80°C
• Operating Voltage: 450/750V
• Test Voltage: 3000V
• Insulation Resistance: >500 MΩ/km

Colour Code

• Core 1: Black
• Core 2: Red
