Quality Connectivity 16AWG 2 Core Speaker Flex Cable External PE Black (Reel)

Oxygen Free Copper Professional Installation External Speaker Flex (Copper Purity 99.9999%)

Quality Connectivity OFC “QCSound” Cable range uses the highest quality oxygen free copper to deliver optimum performance to compliment the best Hi-Fi and Home Cinema systems. Black PE sheath is UV Resistant.

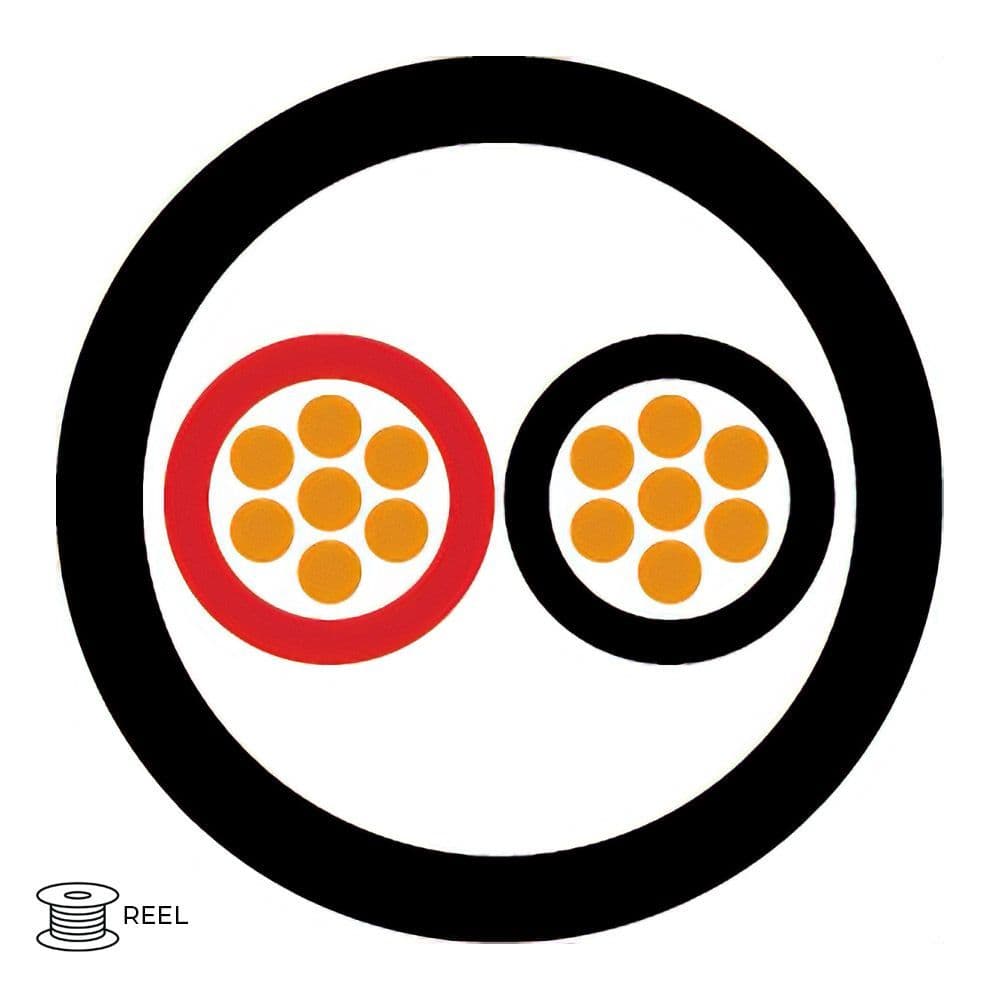

Physical Characteristics

• Conductor: Stranded Pure Copper
• Size: 16AWG
• Nº of Cores: 2 Cores
• Insulation: LSZH (Low Smoke Zero Halogen) Ø2.25mm
• Filler: Cotton Rope
• Outer Sheath: UV Resistant External PE (Polyethylene) Ø6.20mm (heath is weather resistant to ISO4892-3 )
• Sheath Colours: Black
• EN50575 CPR Class: Fca

Electrical Characteristics

• Conductor DC Resistance: <12.6 Ω/km
• Rated Temperature: -20°C > 80°C
• Operating Voltage: 450/750V
• Test Voltage: 3000V
• Insulation Resistance: >200 [MΩ/km]

Colour Code

• Core 1: Black
• Core 2: Red
