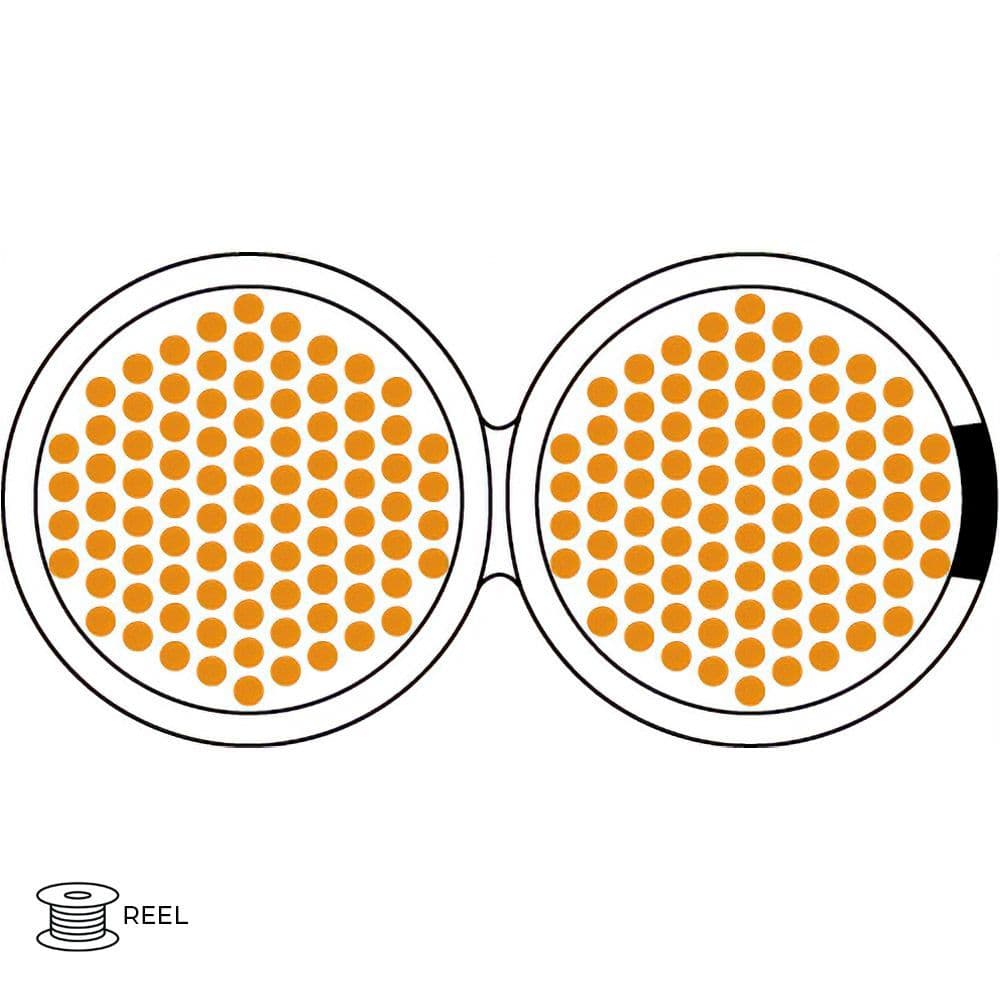

Figure 8 Speaker Flex Cable
Physical Characteristics
- Conductor: Copper Clad Aluminium
- Size: 13/0.20mm
- Nº of Cores: 2 Cores Parallel
- Outer Sheath: PVC Ø2.15mm [x 4.30mm]
- Sheath Colours: White with Black ID Trace on 1 Core
- EN50575 CPR Class: Fca
- Weight: 15kg/KM
Electrical Characteristics
- Conductor DC Resistance: <92.80 Ω/km
- Rated Temperature: -20°C > 80°C
- Rated Voltage: 300V
- Insulation Resistance: >200 MΩ/km
