Quality Connectivity 2 Core 2.5mm2 Speaker Flex Cable LSZH Black (Reel)

Twin Core Speaker Flex LSZH Sheath

Oxygen Free Copper Professional Installation Speaker Flex (Copper Purity 99.9999%). LSZH Sheath to IEC60332-1 / IEC60754 / IEC61034.

Quality Connectivity OFC “QCSound” Cable range uses the highest quality oxygen free copper to deliver optimum performance to compliment the best Hi-Fi and Home Cinema systems.

Physical Characteristics

• Conductor: Stranded Pure Copper
• Size: 50/0.25mm
• Nº of Cores: 2 Cores
• Insulation: LSZH (Low Smoke Zero Halogen) Ø3.00mm
• Filler: Chalk
• LSZH Outer Sheath: Ø7.50mm
• Sheath Colours: Black
• EN50575 CPR Class: Eca
• Weight: 90kg/KM

LSZH Sheath meets

• IEC60332-1 [Flame Propagation]
• IEC60754 [Halogen Free]
• IEC61034 [Smoke Emissions]

Electrical Characteristics

• Conductor DC Resistance: <8.0 Ω/km
• Rated Temperature: -20°C > 80°C
• Operating Voltage: 450/750V
• Test Voltage: 2000V
• Insulation Resistance: >500 MΩ/km
• Minimum Bending Radius: 5x Diameter

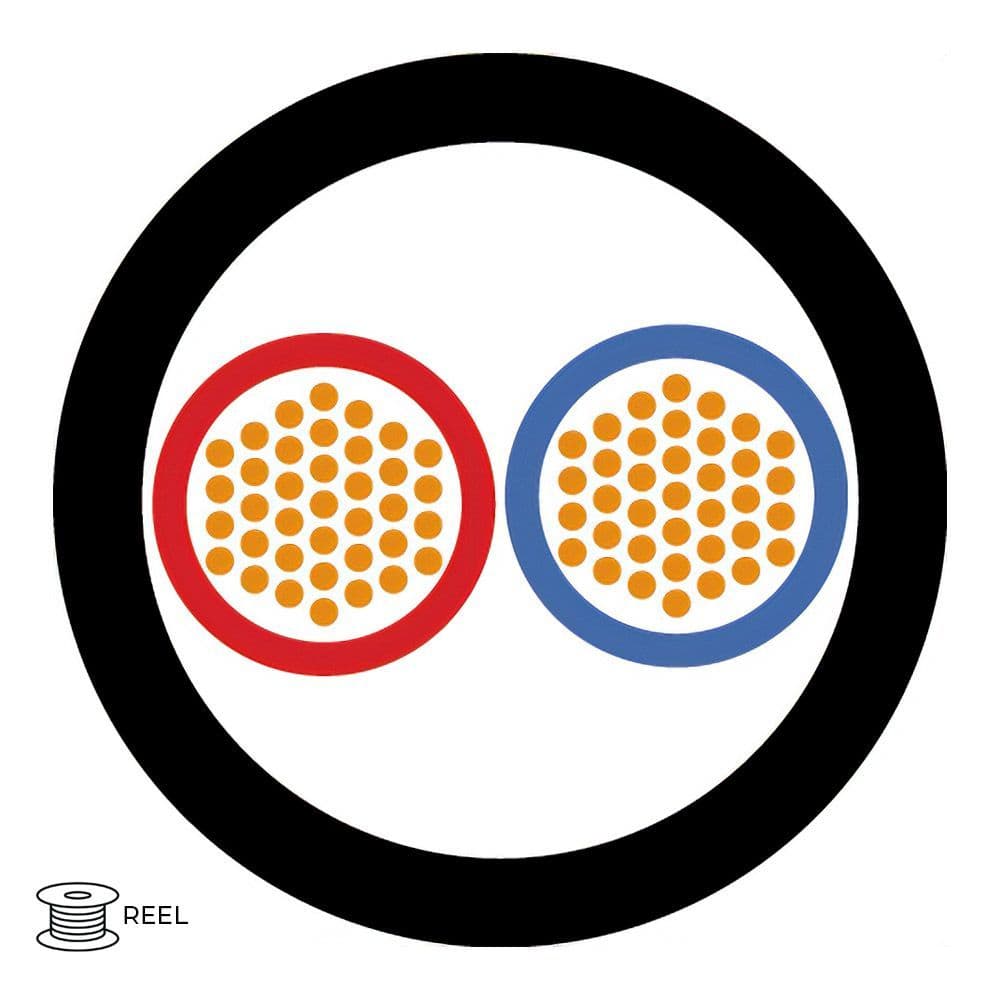

Colour Code

• Core 1: Blue
• Core 2: Red
