OFC Speaker Flex
“Figure 8” Oxygen Free Copper Conductor, Professional Hi-Fi Interconnect and Speaker Flex (Copper Purity 99.9999%)
Quality Connectivity OFC Speaker cable range uses the highest quality oxygen free copper to deliver optimum performance to compliment the best Hi-Fi and Home Cinema systems. Ultra fine stranding ensures flexibility.

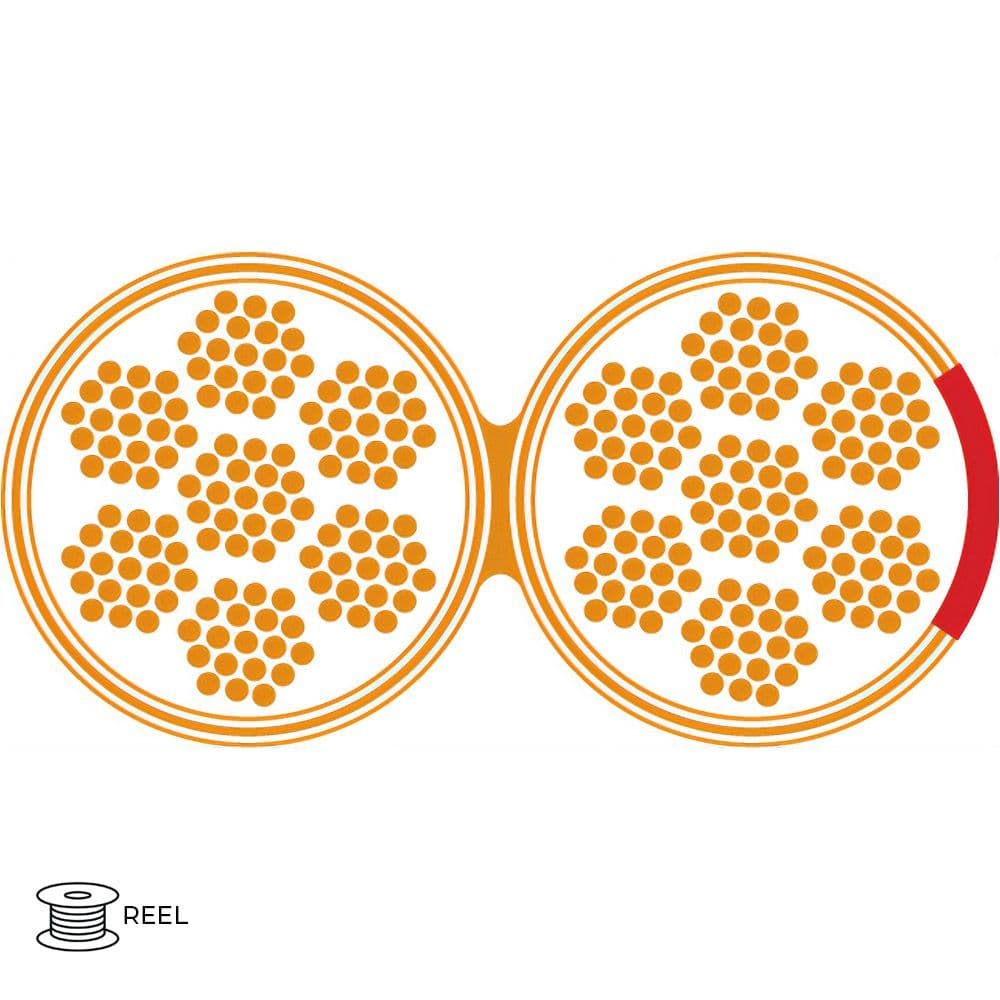

Physical Characteristics
- Conductor: Stranded Pure Copper
- Size: 7x 73/0.10mm [511/0.10mm]
- Nº of Cores: 2 Cores Parallel
- Outer Sheath: PVC Ø4.50mm [x 9.70mm]
- Sheath Colours: Transparent with Red ID Trace on 1 Core
- EN50575 CPR Class: Fca
Electrical Characteristics
- Conductor DC Resistance: <4.95 Ω/km
- Rated Temperature: -20°C > 80°C
- Test Voltage: 2000V
- Insulation Resistance: >500 MΩ/km
- Minimum Bending Radius: 5x Cable Diameter
