Quality Connectivity 4 Core 4.0mm2 Speaker Flex Cable PVC Black (Reel)

Multicore Speaker Flex

Oxygen Free Copper Professional Speaker Flex (Copper Purity 99.9999%).

Physical Characteristics

• Conductor: Stranded Pure Copper
• Size: 56/0.30mm
• Nº of Cores: 4 Cores
• Insulation: PVC (Polyvinyl Chloride) Ø4.20mm
• Filler: Chalk
• Outer Sheath: PVC (Polyvinyl Chloride) Ø12.0
• Sheath Colours: Black
• Weight: 255kg/KM

Electrical Characteristics

• Conductor DC Resistance: <5.0 Ω/km
• Rated Temperature: -20°C > 80°C
• Test Voltage: 2000V
• Insulation Resistance: >500 MΩ/km
• Minimum Bending Radius: 5x Diameter

Equivalent to: VDC 268-544

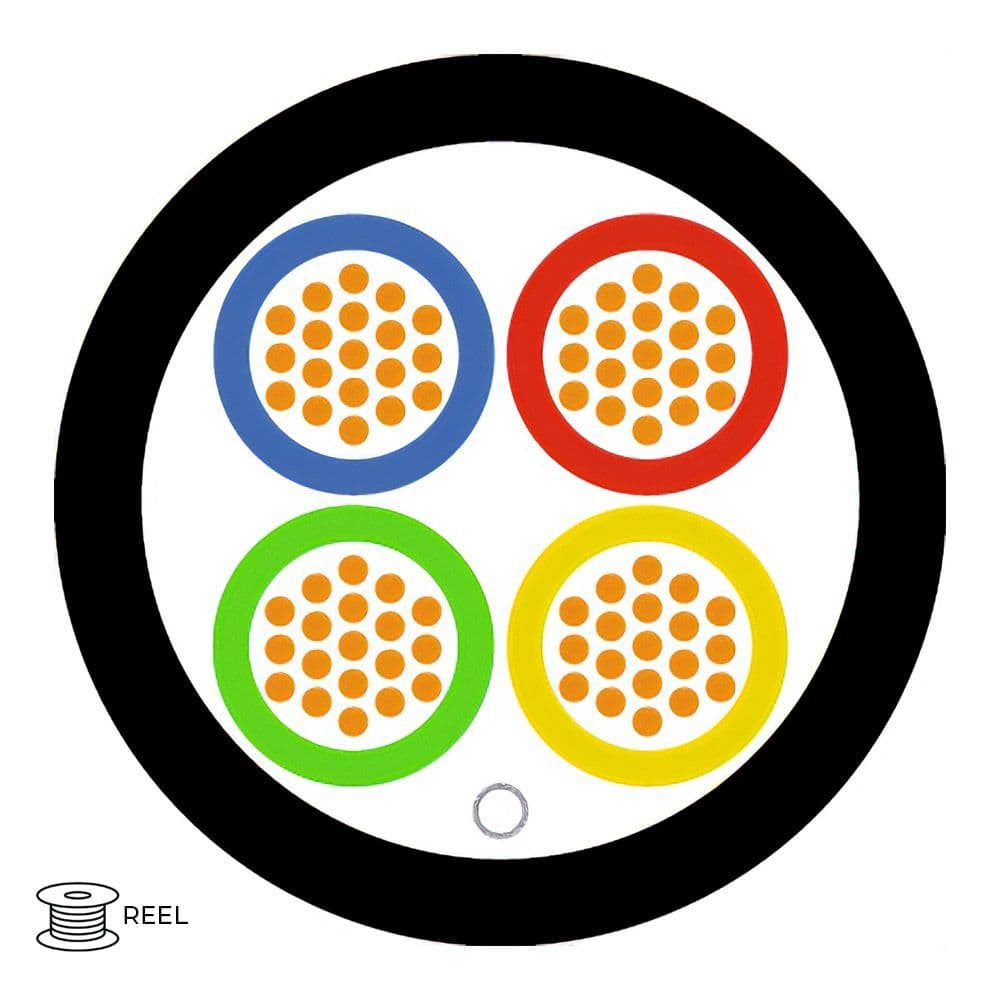

Colour Code

• Core 1: Red
• Core 2: Blue
• Core 3: Green
• Core 4: Yellow
