Quality Connectivity 75 Ohm + 2 Power Cores 0.75mm CCTV Coaxial Cable LSZH White (100m Reel)

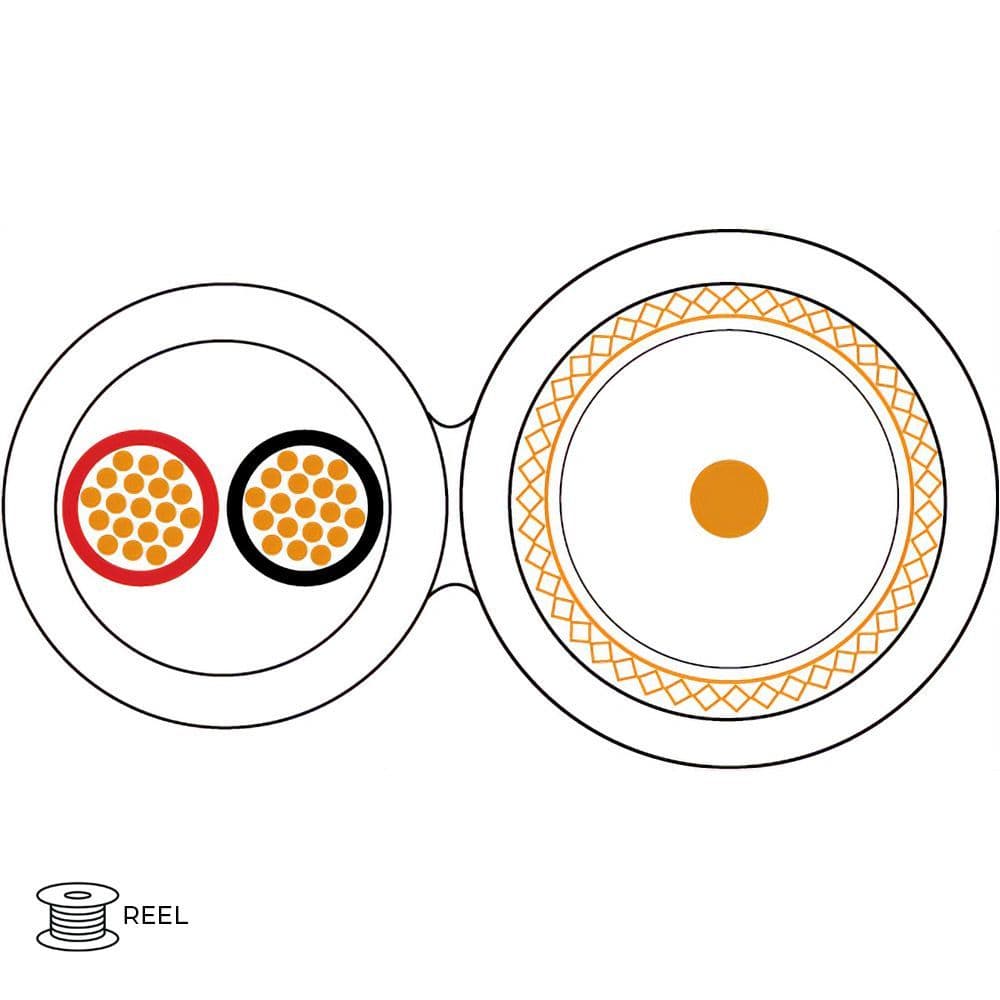

75 Ohm CCTV Coaxial + 2x 0.75mm² Power Cores

Physical Characteristics

COAXIAL (A)

• Conductor: Copper Clad Steel
• Size: 1/0.58mm
• Dielectric: Solid PE (Polyethylene) [Ø3.70mm]
• Screening: Copper Clad Aluminium Wire Braid 86%
• Outer Sheath: LSZH (Low Smoke Zero Halogen) Ø6.10
• Sheath Colours: White
• EN50575 CPR Class: Eca
• Weight: 100kg/km

POWER CORES (B)

• Conductor: Stranded Plain Copper Wire
• Size: 24/0.193
• Dielectric: PVC (Polyvinyl Chloride) [Ø2.20mm], 2 Cores: Red / Black
• Screening: none
• Outer Sheath: LSZH (Low Smoke Zero Halogen) Ø6.10
• Sheath Colours: White
• EN50575 CPR Class: Eca
• Weight: 100kg/km

LSZH Sheath meets

• IEC60332-1 [Flame Propagation]
• IEC60754 [Halogen Free]
• IEC61034 [Smoke Emissions]

Electrical Characteristics

COAXIAL (A)

• Conductor DC Resistance: 235 Ω/km
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: >500 MΩ/km
• Nominal Capacitance: <70pF/M [±10%]
• Velocity Ratio: 66.7%
• Nominal Impedance: 75Ω

POWER CORES (B)

• Conductor DC Resistance: <26.5 Ω/km
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: >200 MΩ/km
• Nominal Capacitance: <70pF/M [±10%]
• Velocity Ratio: 66.7%
• Nominal Impedance: 75Ω

Attenuation @20°C (dB/100M)

• 50MHz: 8.5
• 100MHz: 11.8
• 200MHz: 16.5
• 450MHz: 26.0
• 800MHz: 35.8
• 860MHz: 37.2
• 1000MHz: 39.5
