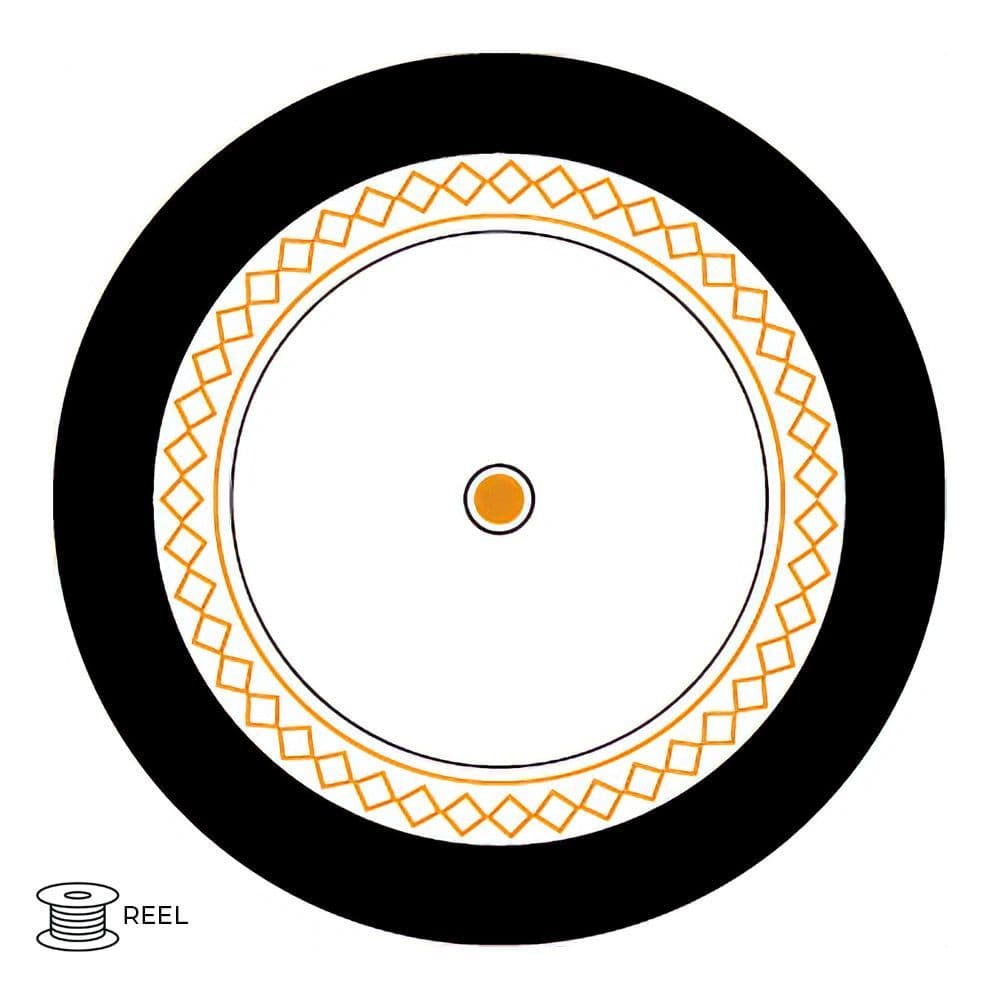

Home / Installation / Cable - Security / CCTV / Quality Connectivity 75 Ohm c/u 1x0.58 CCTV Coaxial Cable LSZH Black (Reel) Quality Connectivity 75 Ohm c/u 1x0.58 CCTV Coaxial Cable LSZH Black (Reel) Not yet reviewed Login to View Price Product Code: RG59/C/U/1 Length: 100m 200m 300m 400m 500m 1m (Cut to Length) Information 75 Ohm CCTV Coaxial Physical Characteristics Conductor: Pure Copper Size: 1/0.58mm Dielectric: Solid PE [Ø3.70mm] Screening: 86% Copper Clad Aluminium Wire Braid Outer Sheath: LSZH (Low Smoke Zero Halogen) Sheath Colours: Black EN50575 CPR Class: Fca Weight: 40kg LSZH Sheath meets IEC60332-1 [Flame Propagation] IEC60754 [Halogen Free] IEC61034 [Smoke Emissions] Electrical Characteristics Conductor DC Resistance: 70.4 Ω/km Rated Temperature: 80°C Rated Voltage: 300V Insulation Resistance: >1000 MΩ/km Nominal Capacitance: <70pF/M [±10%] Velocity Ratio: 66.7% Nominal Impedance: 75Ω Attenuation @20°C (dB/100M) 50MHz: 8.5 100MHz: 11.8 200MHz: 16.5 450MHz: 26.0 800MHz: 35.8 860MHz: 37.2 1000MHz: 39.5 Specifications Brand: Quality Connectivity Product Code: RG59/C/U/1 Downloads Product Code: RG59/C/U/1
