Quality Connectivity A05Z1Z1-F 3186B 6 Core 1.5mm Mains Flexible Cable LSZH Eca White (100m Reel)

Suitable for DALI Lighting
3185B 300/500V Mains Flexible
BS-EN60228:5005, IEC60092-353
Complies with EN60332-1-2 Vertical Flame Test

Physical Characteristics

• Conductor: Class 5 30/0.25 Bare Copper
• Insulation: LSZH (Low Smoke Zero Halogen) Ø2.50mm
• Outer Sheath: LSZH (Low Smoke Zero Halogen) Ø10.60mm
• Sheath Colour: White
• EN50575 CPR Class: Eca

Electrical Characteristics

• Conductor DC Resistance BS EN 60228: <13.3 Ω/km
• Current Rating: 15 Amps
• Rated Temperature: -30°C - +80°C
• Rated Voltage: 300V/500V
• Test Voltage: AC 2kV

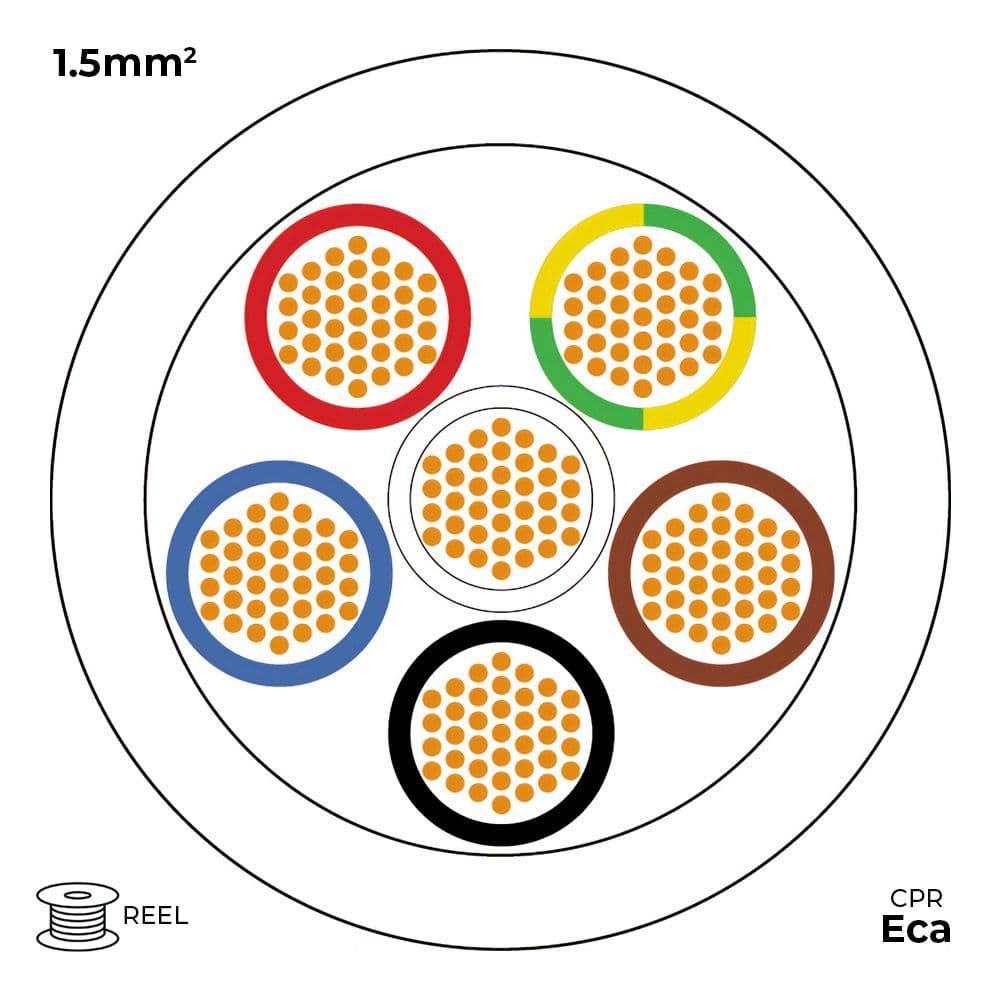

Colour Code

• Core 1: Green/Yellow
• Core 2: Brown
• Core 3: Black
• Core 4: Blue
• Core 5: Red
• Core 6: White
