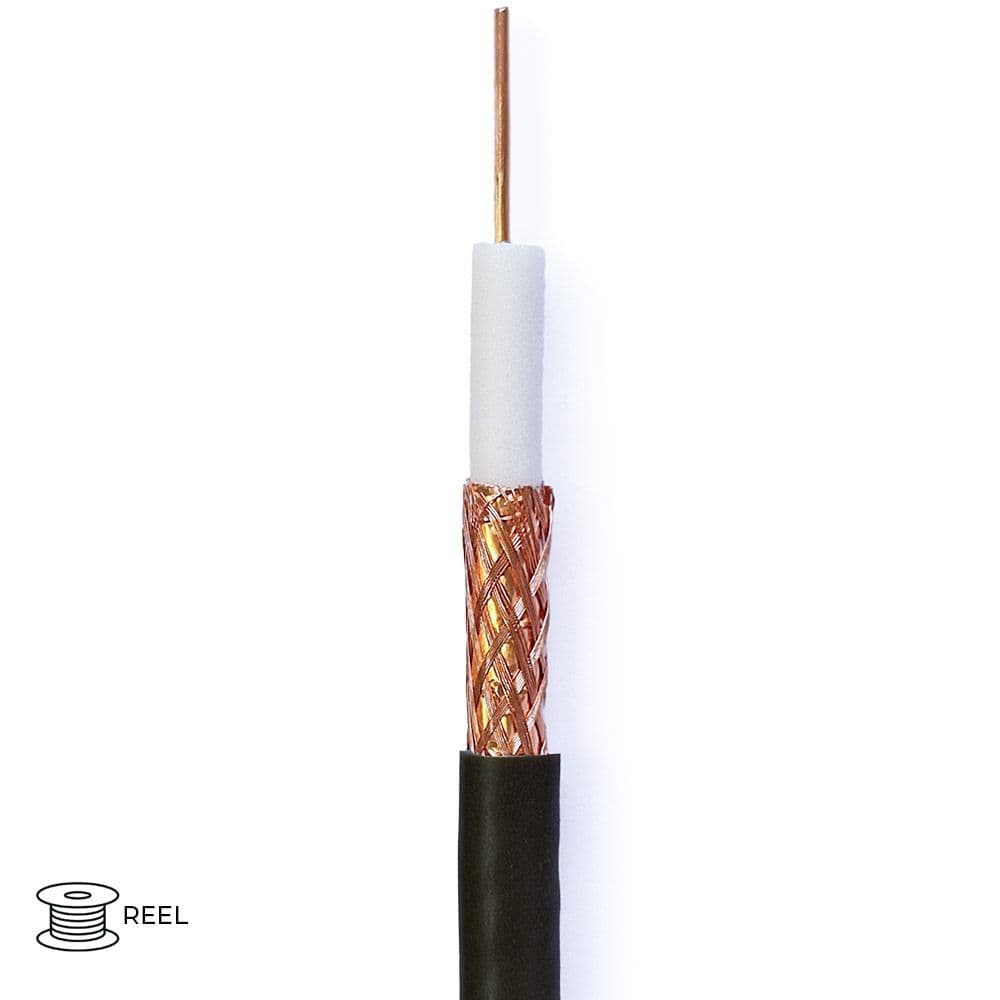

Quality Connectivity Class A+ 1.00mm 75 Satellite Coax LSZH CPR Cca Cable Black

x100 CAI Approved Class A+ Screening Efficiency:

• Copper Conductor
• Copper Tape Screen
• Copper Braid Screen

(Please check the table below to see the difference between Digital / Satellite Coaxials)

75 Ohm CAI Approved Digital / Satellite HDTV Coaxial [Class A+ Screening]
Manufactured to BS EN 50117-1:2002
CAI Benchmark CAI-007-C / 100 / 06-2016

• This Class A+ 3GHz Screened pure copper coaxial cable is manufactured to carry Digital /Satellite HDTV signals and is also suitable for HD-SDI CCTV Signals. DFD100 is of the highest quality nescessary to achieve the CAI Benchmark status, and is perfect for any home entertainment system.
• Compatible for 4K TV and Ultra HD.
• Class A+ Screening ensures that external interference from Mobile phones and WiFi does not impede the transmission of signals.
• Also available as part of a Multimedia Composite (QCMC5) with 2x DFD100 2x CAT6 and 1x CAT5e cables
• Please beware of inferior cable in the market that may have CCA Braid and Copper Coloured Tape – cables that would only achieve Class E screening.

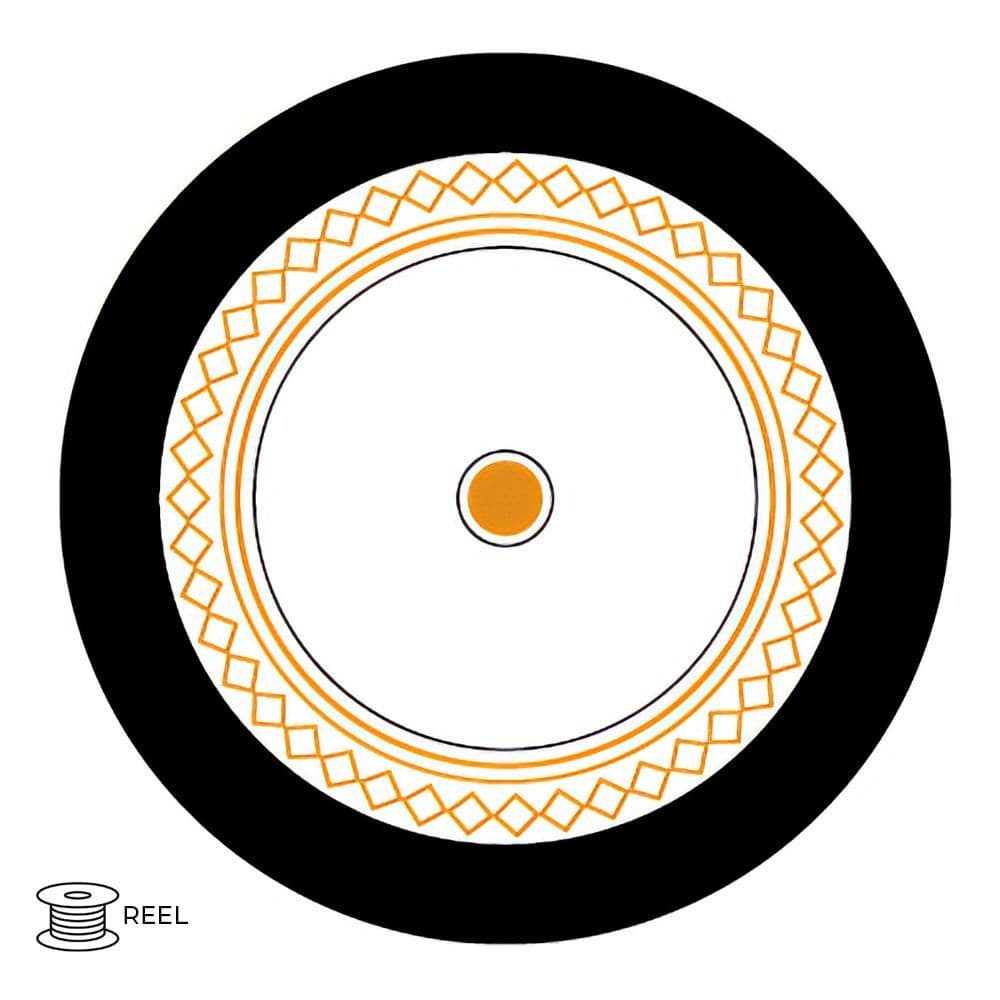

Physical Characteristics

• Conductor: Bare Copper – 1.0mm Solid Bare Copper
• Dielectric: Gas Injected PE [Ø4.65mm]
• Screening: Pure Copper Tape [100% Coverage]
• Screening: Pure Copper Braid [>55% Coverage]
• Outer Sheath: LSZH (meets IEC60332.1, IEC60332.3, IEC60754, IEC61034)
• Sheath Colours: Black Ø6.70mm
• EN50575 CPR Class: Cca
• CAI Certificate Number: CAI0100H, 18th September 2023 > 18th March 2025
• Weight: 40kg/km

Electrical Characteristics

• Conductor DC Resistance: 26 [Ω/km]
• Outer Conductor Resistance: 15 [Ω/km]
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: >500 [MΩ/km]
• Nominal Capacitance: <52.5pF/M [±10%]
• Velocity Ratio: 80%
• Nominal Impedance: 75Ω

Attenuation @20°C (dB/100M)

• 5MHz: 1.6
• 50MHz: 4.6
• 100MHz: 6.5
• 200MHz: 9.5
• 460MHz: 15.0
• 860MHz: 19.5
• 1000MHz: 21.5
• 1750MHz: 29.0
• 2150MHz: 32.5
• 3000MHz: 39.2

Return Loss dB (±10%)

• 5MHz – 30MHz>23
• 30MHz – 470MHz>23
• 470MHz – 862MHz>20
• 862MHz – 2150MHz>18

Screening Attenuation dB (±10%) [after flexing]

• 30MHz – 300MHz>85 [>85]
• 300MHz – 470MHz>80 [>80]
• 470MHz – 1000MHz>75 [>75]
• 1000MHz – 2150MHz>65 [>65]

.
