Quality Connectivity Class E 5x 1.00mm 75 Satellite Coax LSZH + 4.0mm² Earth Wire Cable Black

x100-PREM Class E Screening Efficiency:

• Copper Conductor
• Aluminium Tape Screen - Copper Coloured
• Aluminium Braid Screen

(Please check the table below to see the difference between Digital / Satellite Coaxials)

Coax construction is Gas Injected Foam with a longitudinally overlapped tape and braid, facilitating good bending radius characteristics and very efficient screening in areas with high electrical noise presence. Manufactured to meet stringent performance criteria.

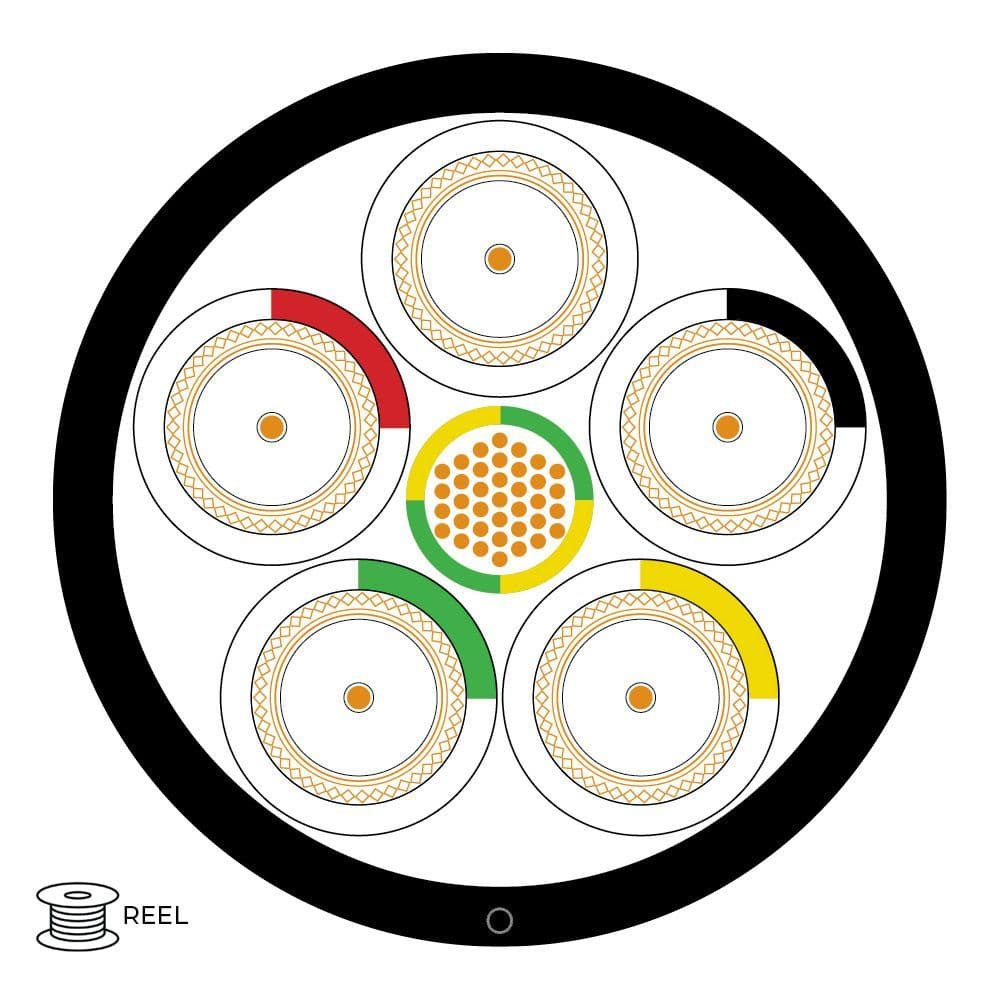

Physical Characteristics

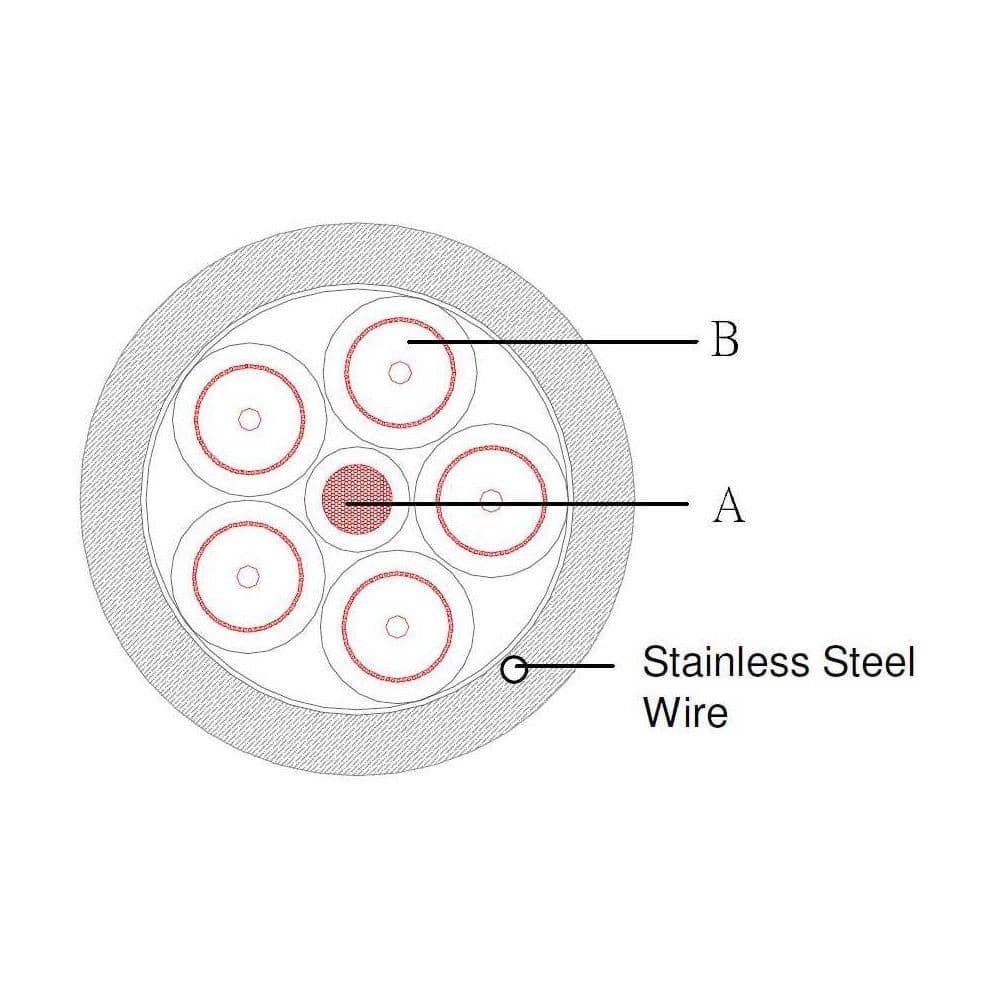

5x Satellite Coax

• Conductor: Bare Copper (B)
• Size: 1/1.00mm
• Dielectric: Gas Injected PE [Ø4.65mm]
• Screening: 1. Copper Coloured Alu Foil, 2. 47% CCA Braid
• Outer Sheath: LSZH [Ø6.55mm]
• Sheath Colours:
  • White
  • White w/ Black Stripe
  • White w/Yellow Stripe
  • White w/Green Stripe
  • White w/ Red Stripe
• Wrap: Mylar Spiral
• Rip Cord: 0.4mm Stainless Steel
• Outer Sheath: Black LSZH [Ø19.60mm]
• Weight: 400kg/KM
• EN50575 CPR Class: Fca

4.0mm² Earth Wire (A)

• Conductor: Bare Copper
• Size: 56/0.30mm
• Dielectric: Yellow/Green LSZH [Ø4.65mm]

Electrical Characteristics

• Conductor DC Resistance: 23.7 [Ω/km]
• Outer Conductor Resistance: 43.4 [Ω/km]
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: >500 [MΩ/km]
• Nominal Capacitance: <52.5pF/M [±10%]
• Velocity Ratio: 80%
• Nominal Impedance: 75Ω

Attenuation @20°C (dB/100M)

• 5MHz: 1.6
• 50MHz: 4.6
• 100MHz: 6.5
• 200MHz: 9.5
• 460MHz: 15.0
• 860MHz: 19.5
• 1000MHz: 21.5
• 1750MHz: 29.0
• 2150MHz: 32.5

Return Loss dB (±10%)

• 5MHz – 30MHz: >23
• 30MHz – 470MHz: >23
• 470MHz – 862MHz: >20
• 862MHz – 2150MHz: >18

.
