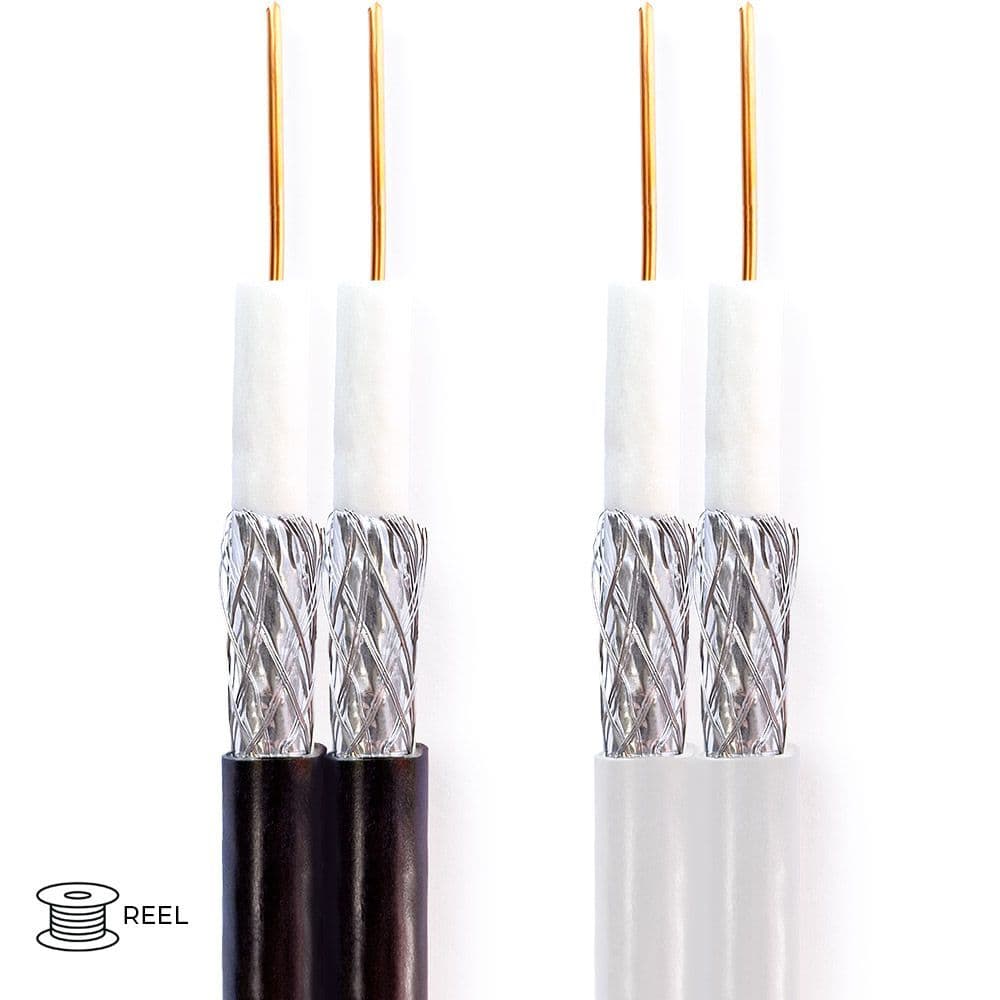

Quality Connectivity Class E RG6 75 Twin Satellite Coax LSF Cable 100m

RG6 Class E Screening Efficiency:

• Copper Covered Steel Conductor
• Aluminium Tape Screen
• Aluminium Braid Screen

(Please check the table below to see the difference between Digital / Satellite Coaxials)

Coax construction is Gas Injected Foam with a longitudinally overlapped tape and braid, facilitating good bending radius characteristics and very efficient screening in areas with high electrical noise presence. Manufactured to meet stringent performance criteria.

75 Ohm RG6 Type Coaxial - Equivalent to CAI RG6 SDU Cable

Physical Characteristics

• Conductor: Copper Clad Steel (22% conductivity)
• Size: 1/1.02mm
• Dielectric: Gas Injected PE [Ø4.70mm]
• Screening:
  1. Aluminium/PET Tape
  2. 36% Aluminium Wire Braid [48x0.12]
• Outer Sheath: PVC
• Sheath Colours: Black
• Overall Diameter: 2x Ø6.65mm
• Weight: 60kg/KM

Electrical Characteristics

• Conductor DC Resistance: <79 [Ω/km]
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: >500 [MΩ/km]
• Nominal Capacitance: <55pF/M [±3]
• Velocity Ratio: 80%
• Nominal Impedance: 75Ω

Attenuation @20°C (dB/100M)

• 100MHz: 7.2
• 860MHz: 18.3
• 1000MHz: 19.8

Return Loss dB (±10%)

• 1MHz – 862MHz: >22
• 862MHz – 220MHz: >20

.
