3182Y - 300/500V Mains Flexibles
<HAR> Approved - BS6500, VDE028-5
Physical Characteristics
- Conductor: Class 5 24/0.20 Bare Copper
- Insulation: PVC (Polyvinyl Chloride) Ø2.20mm
- Outer Sheath: PVC (Polyvinyl Chloride) Ø6.20mm
- Sheath Colour: Black or White
- Weight: 57 kg/km
- EN50575 CPR Class: Eca
- CIBSE TM65 Embodied Carbon: 255 kgCO2e/1000m
Electrical Characteristics
- Conductor DC Resistance BS EN 60228: <26 Ω/km
- Current Rating: 6 Amps
- Rated Temperature: -30°C - +80°C
- Rated Voltage: 300V/500V
- Test Voltage: AC 2kV

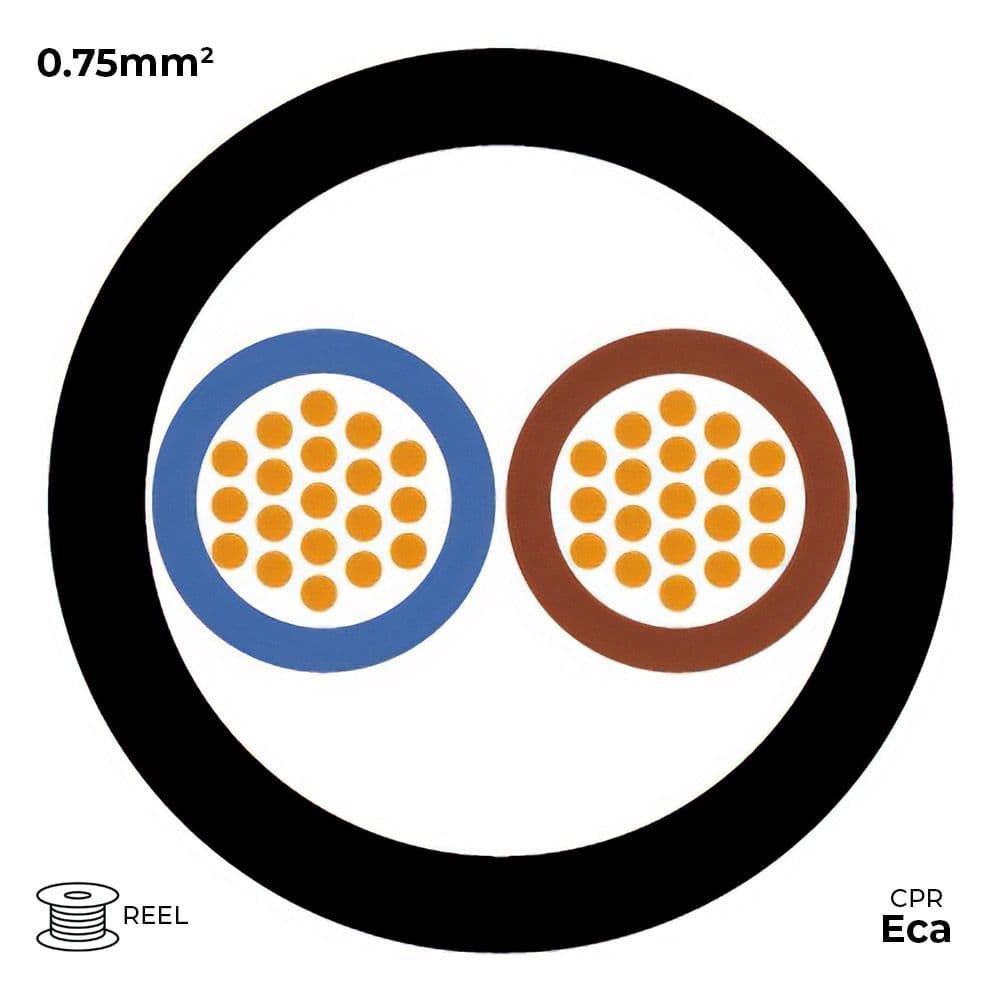

Colour Code
- Core 1: Blue
- Core 2: Brown
