Main Features
- BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G port unlocks the full potential of Wi-Fi 7.
- 160 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.△
Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 GbE Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
- Secure Guest Network with up to 16 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Technical Specifications
HARDWARE FEATURES
- Interface: 1x 2.5G Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
- Max. Power Consumption:
- 16.8 W (For PoE);
- 13.0 W (For DC)
- Dimensions (WxDxH): 6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)
- Antenna: 2.4 GHz: 2x 4.0 dBi, 5 GHz: 2x 5.0 dBi

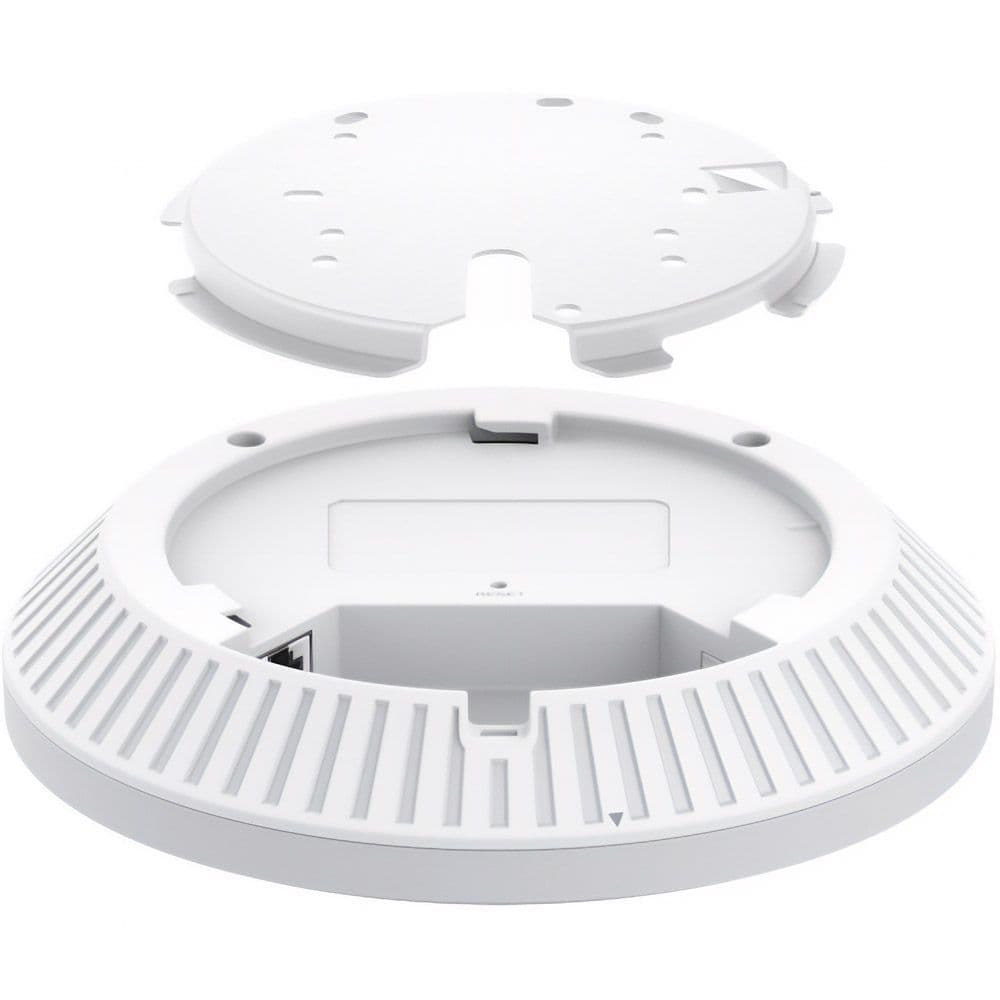

- Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
WIRELESS FEATURES
- Coverage: 140 m2 (1500 ft²)***
- Concurrent Clients: 250+**
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
- Wireless Functions:
- MLO‡
- 4K-QAM‡
- Seamless Roaming
- EHT160‡
- Mesh△
- OFDMA‡
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS:16(8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
- Wireless Security:
- Captive Portal Authentication△
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band 1&band 2, EIRP)
- < 28 dBm (5 GHz, band 3, EIRP)
MANAGEMENT FEATURES
- Omada App: Yes
- Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud Access: Yes. Require the use of an Omada controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes
OTHERS
- Certification: CE, FCC, RoHS, IC
- Package Content: EAP723, Installation Guide, Ceiling/Wall/Junction Box Mounting Kits. Note: Power Adapter is NOT included.
ENVIRONMENT
- Operating Temperature: 0 °C-40 °C (32 °F-104 °F)
- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F)
- Operating Humidity: 10%-90% non-condensing
- Storage Humidity: 5%-90% non-condensing
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, MLO, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
