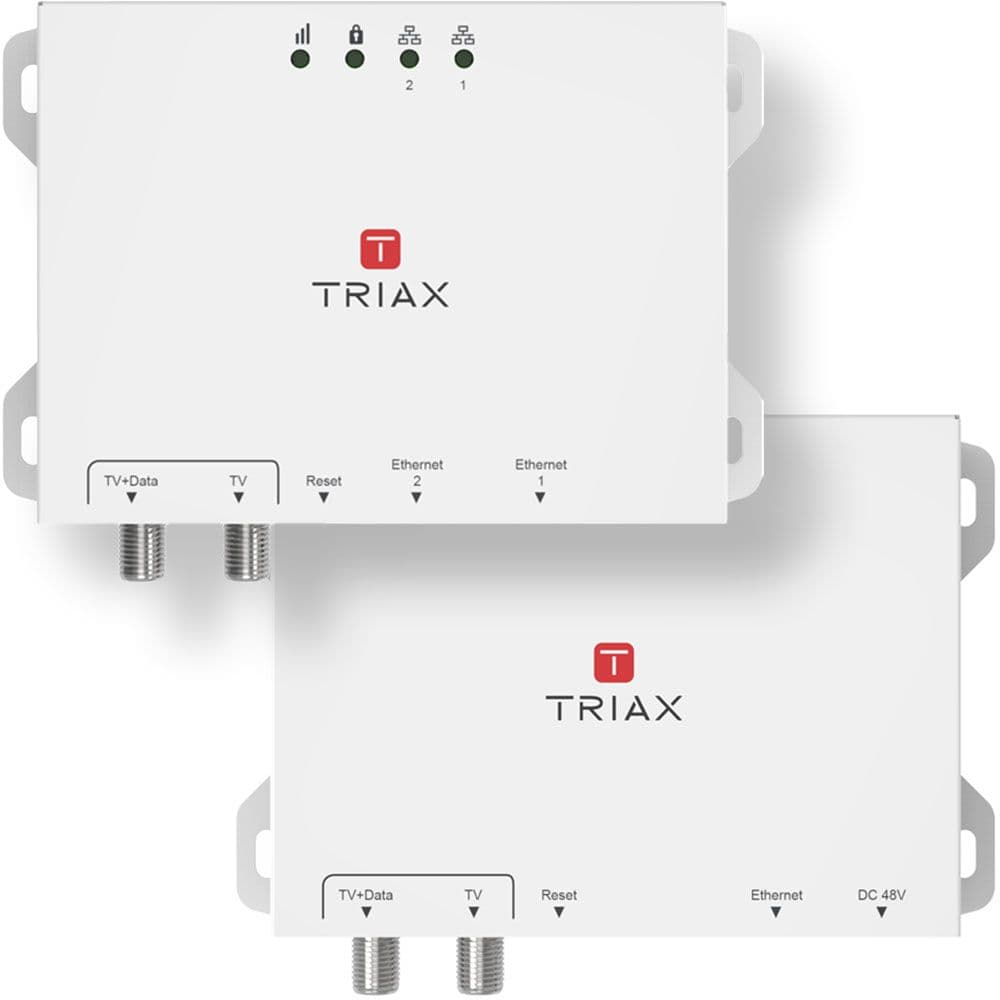

Simple TV & Data Distribution with a Gigabit network over existing coax cables.
Features
- Extends TV signal, data, and power over a coaxial cable
- High speed data transmission
- Use existing coaxial cable
- Co-exist with TV signal
- Easy installation
Other Features
- The Smart Choice - Enjoy fast, stable, reliable and safe ethernet around the home using existing TV coax cable and TV points.
- Boost Home Entertainment Networks - Laptops, Smart TV’s, Gaming Consoles all require a fast and reliable broadband connection to maximise their potential. TRIAX TEoC GigaKit uses G.hn technology.
- G.hn Technology - G.hn is an ITU standard used to deliver High Speed Broadband over legacy cabling. With the growing demands on home entertainment networks, the technology enables performance levels which Wi-Fi solutions are often unable to meet.
- Goodbye Wi-Fi Dead Spots - Connect places Wi-Fi cannot reach with IP over Coax. The TEoC GigaKit enables fast and strong ethernet signals in rooms far from the router or those affected by thick or foil insulated walls.
- Perfect for MDU installations - Overcome bandwidth congestion in MDU's.
- Simple to install with Plug & Play technology - One button push to pair devices. Easy to use GUI.
Technical Specifications
FREQUENCY RANGE
- Frequency Range G.hn: 2...200 MHz
- Frequency Range TV: 230...1000 MHz
INSERTION LOSS
- Insertion Loss TV: <4.0 dB
- Insertion Loss EoC: <4.0 dB
RETURN LOSS
- Return Loss G.hn: >7.5 dB
- Return Loss TV: >7.5 dB
ELECTRICAL
OPERATIONAL
- Ethernet Interface:10/100/1000 Mbps
- G.hn Standard: G.hn Wave 2 ITU-T G.9960/G.9961/G.9962 G.hn over Coax
- AC Supply Voltage: 100…240 @50/60Hz VAC
- Power Consumption (typ.): 8.0W
- DC Operating voltage: 48VDC@0.33A
- Temperature - operating: 0...40 °C
- Temperature - storage: -10...70 °C
- Humidity - operating: 10...95 %
- Humidity - storage: 10...95 %

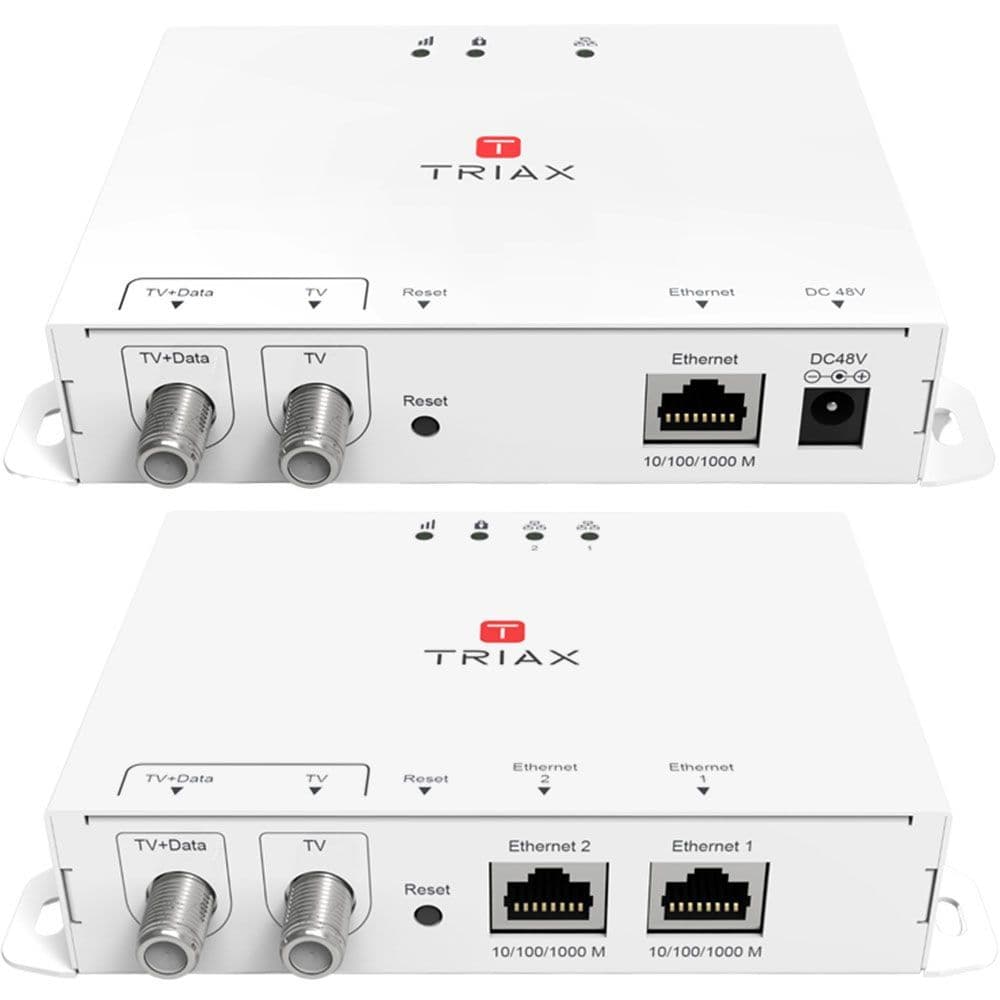

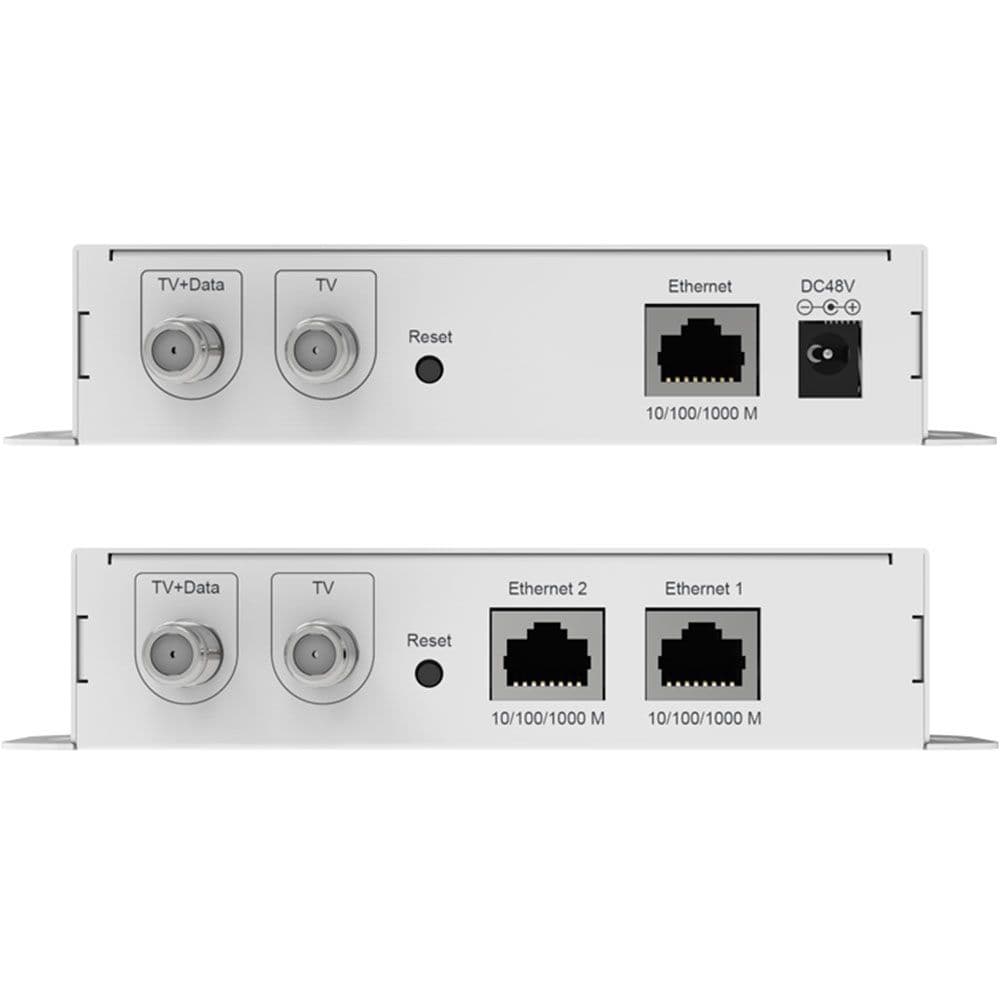

CONNECTORS
- Connector RF: F-Type Connector
- Connector LAN: RJ45
- Connector: DC DC jack (Controller) or F-Type Connector (Receiver)
MECHANICAL
- Dimensions product (H x D x W): 31 x 98 x 151 mm
- Net Weight: 0.310 kg (1pcs)
