Expands TEoC GigaKit Point to Point Kit (310500). TEoC Plus Splitter Required - Purchased Separately.
Features
- High speed data transmission
- Use existing coaxial cable
- Co-exist with TV signal
- Easy installation
Technical Specifications
FREQUENCY RANGE
- Frequency Range G.hn: 2...200 MHz
- Frequency Range TV: 230...1000 MHz
INSERTION LOSS
- Insertion Loss TV: <4.0 dB
- Insertion Loss EoC: <4.0 dB
RETURN LOSS
- Return Loss G.hn: >7.5 dB
- Return Loss TV: >7.5 dB
ELECTRICAL
OPERATIONAL
- Ethernet Interface: 10/100/1000 Mbps
- G.hn Standard: G.hn Wave 2 ITU-T G.9960/G.9961/G.9962 G.hn over Coax
- AC Supply Voltage: 100…240 @50/60Hz VAC
- Power Consumption (typ.): 4.0W
- DC Operating voltage: 12VDC@1A
- Temperature - operating: 0...40 °C
- Temperature - storage: -10...70 °C
- Humidity - operating: 10...95 %
- Humidity - storage: 10...95 %

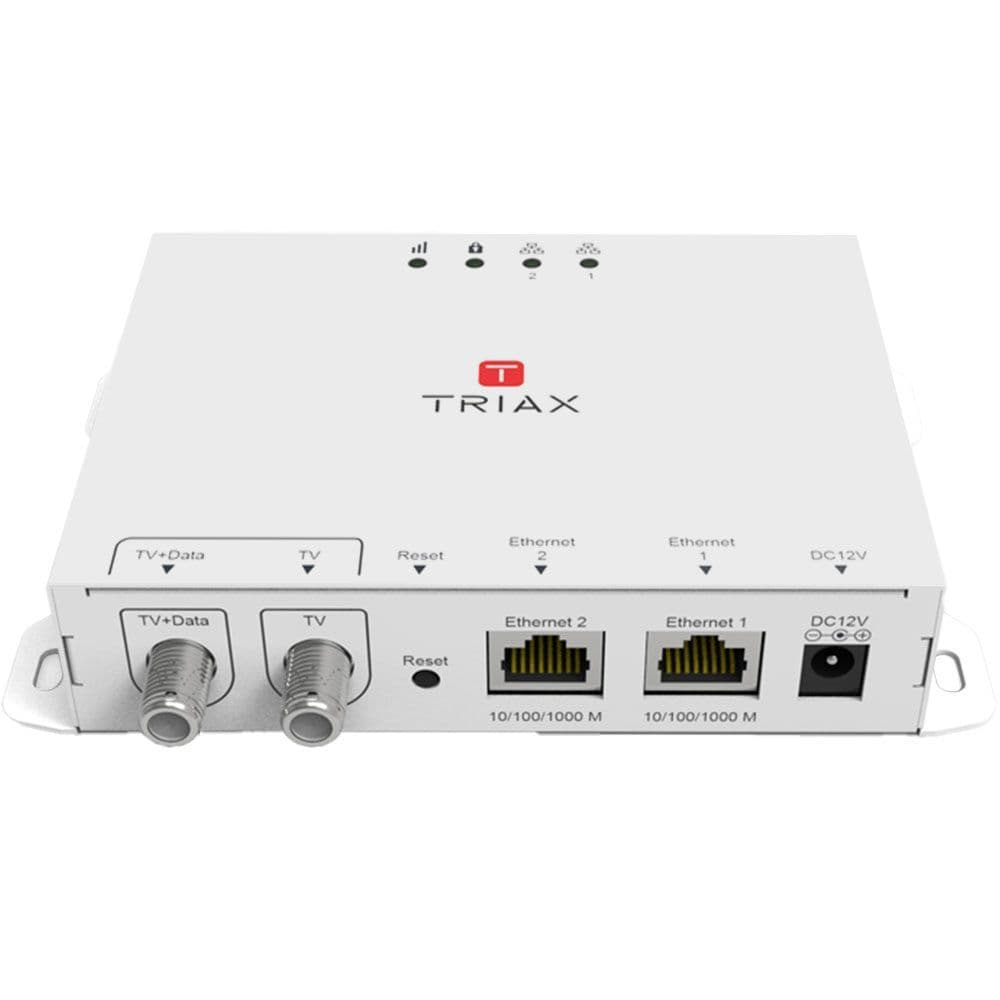

CONNECTORS
- Connector RF: F-Type Connector
- Connector LAN: RJ45
- Connector DC: DC jack
MECHANICAL
- Dimensions product (H x D x W): 31 x 98 x 151 mm
- Net Weight: 0.310 kg (1pcs)
