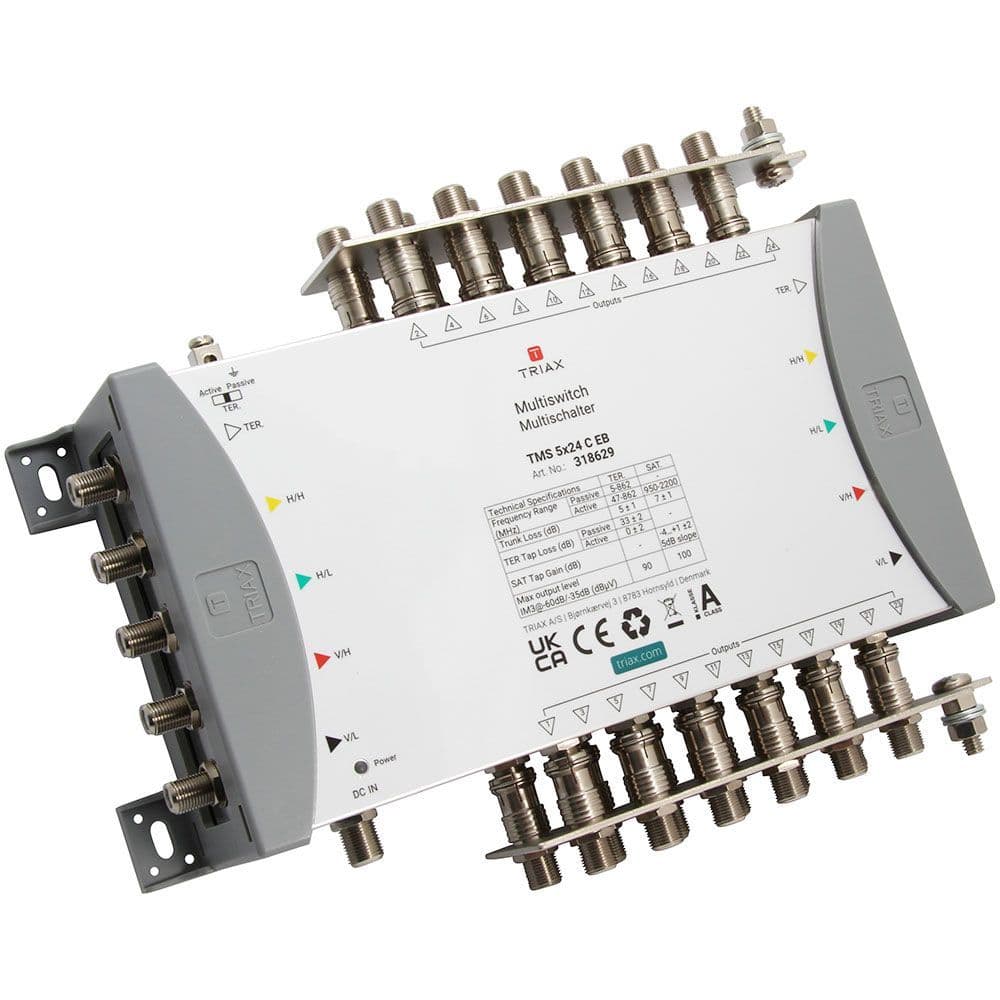

Triax TMS 5x24 C EB Cascade Multiswitch

Cascade multiswitch for 1 Satellite position with 5 inputs and 5 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 24 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

The TMS 5x24 C EB offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

Excellent performance

• Low insertion loss
• High isolation
• Low power consumption
• RED compliant
• ESD Protection
• Flexibility

All the functionality you need in a simplified, streamlined range

• Easier to select the right product
• Fewer products to stock
• Active/Passive Terrestrial Switch
• Convenience

Designed with installer convenience in mind

• Equidistant F-connectors on all multiswitches
• Colour-coded input labels
• LED power indicator
• Flexible power injection
• Earth bars

Technical Specifications

ELECTRICAL

• Impedance: 75 Ω

CONNECTORS

• Connector Type: F-female
• Connector DC: F-female
• Number of inputs: 17
• Number of trunk inputs: 4 SAT, 1 TER
• Number of trunk outputs: 4 SAT, 1 TER
• Subscriber outputs: 24
• Colorcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS

• LNB type: Quattro
• Max. input level - SAT (IMD3 - 35dB): 99 dBµV
• Max. input level - TER (IMD3 - 60dB): 90 dBµV
• Max. output level SAT @ -35 dB IMD3: 100 dBµV
• Max. output level TER @ -60dB IMD3: 90 dBµV
• LNB current max.: 3000 mA
• Switch commands: DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE

• Frequency range TER: Active: 47...862 / Passive: 5...862 MHz
• Frequency range SAT: 950…2200 MHz

GAIN

• Gain - SAT (with 5 dB slope): -4…+1 ± 2 dB
• Gain - TER: 0 ± 2 dB

LOSS

• Tap loss TER: 33 ± 2 dB
• Insertion loss - trunkline SAT: 7 ± 1 dB
• Insertion loss - trunkline TER: 5 ± 1 dB

ISOLATION

• Isolation SAT to TER: > 30 dB
• Isolation trunk to trunk: > 30 dB
• Isolation cross polarisation H/V: 30 dB
• Isolation out-out SAT: 30 dB
• Isolation out-out TER: 25 dB

RETURN LOSS

• Return loss SAT inputs: >10 dB
• Return loss SAT outputs: >10 dB
• Return loss TER inputs: >10 dB
• Return loss TER outputs: >10 dB
• Return loss TAP outputs: 10 dB

OPERATIONAL

• LINE power DC voltage (max.): 15…20 VDC
• LINE power current (max.): 2000 mA
• PSU output DC voltage: 18 VDC
• ESD protection: 4KV inputs & sub outputs
• DC Current consumption: 30mA TER passive 200mA TER active mA
• PSU/adapter Art number: 318165, 318166, 318167
• Max. current to each output (supplied by set top box): <50 mA
• Control LEDs: Green LED (Power)
• Temperature - operating: -20…+55 °C

MECHANICAL

• Main material: Steel housing
• Packing QTY: 1
• Product Height: 280 mm
• Product Length: 140 mm
• Product Width: 140 mm
• Product Depth: 65 mm
• Packaging Height: 0.070 m
• Packaging Width: 0.270 m
• Packaging Depth: 0.205 m
• Packaging Volume: 0.000 m3
• Net Weight: 1.243 kg
• Tara Weight: 0.190 kg
• Total Weight: 1.433 kg
• Remarks: Earth bars
