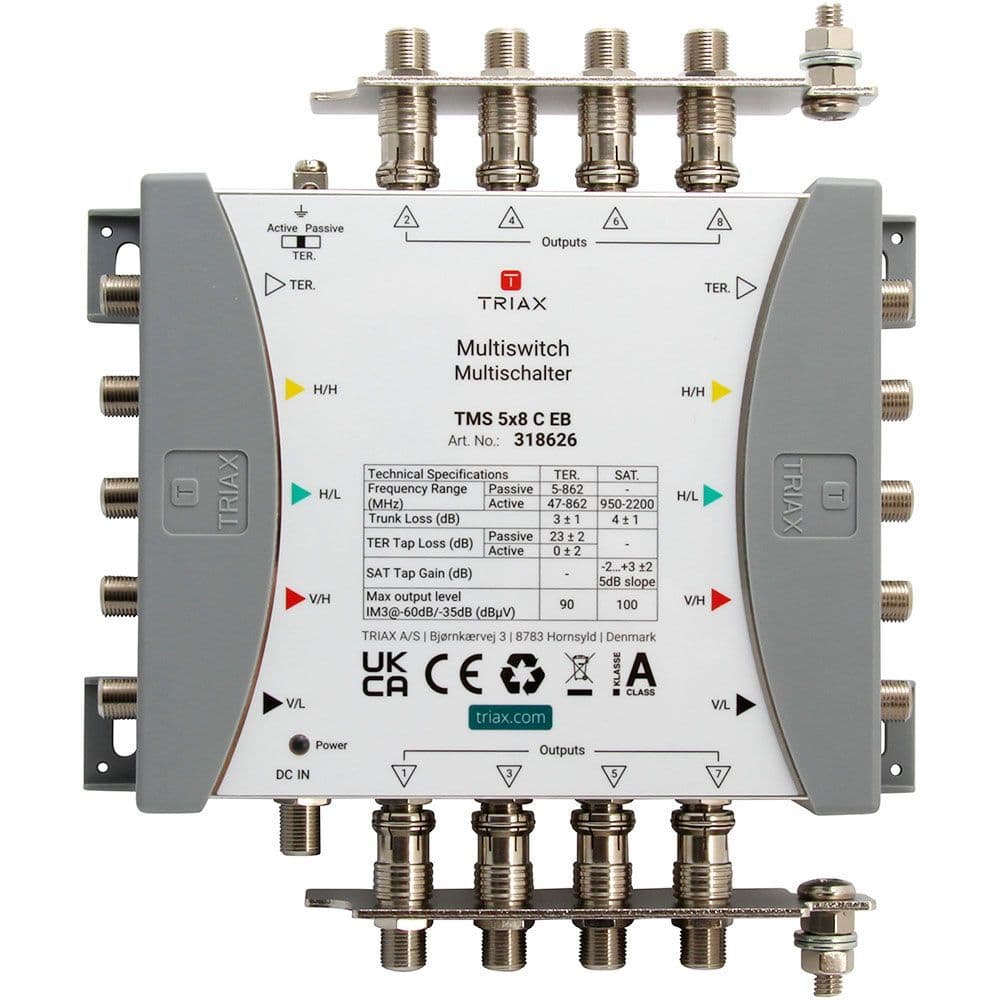

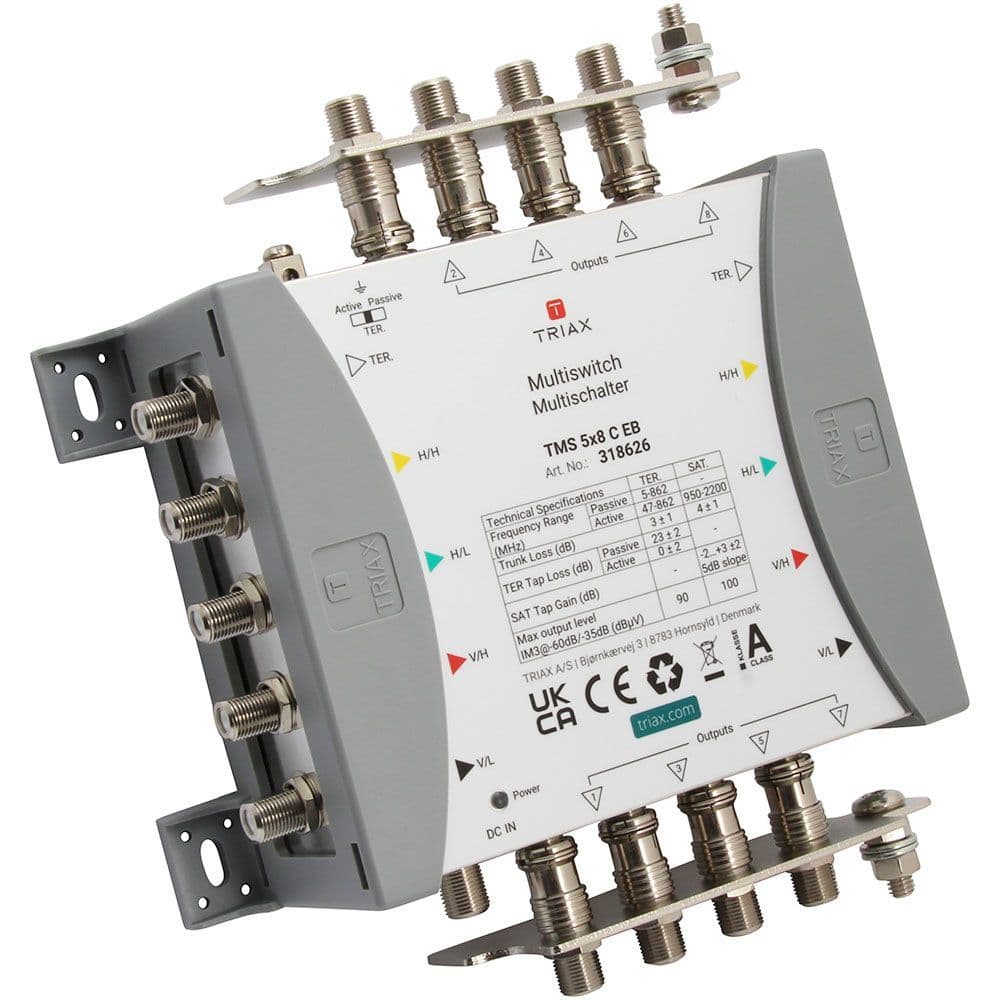

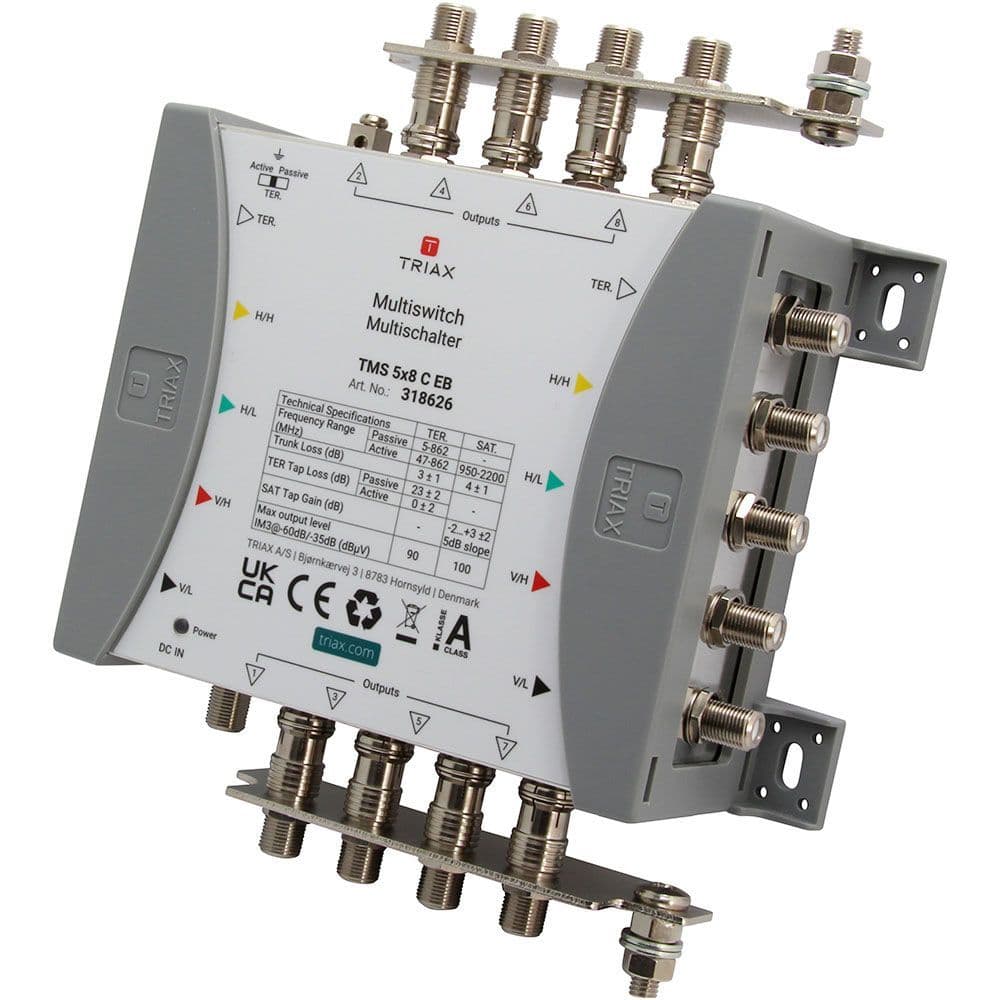

Triax TMS 5x8 C EB Cascade Multiswitch

Cascade multiswitch for 1 Satellite position with 5 inputs and 5 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 8 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

The TMS 5x8 C EB offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

Excellent performance

• Low insertion loss
• High isolation
• Low power consumption
• RED compliant
• ESD Protection
• Flexibility

All the functionality you need in a simplified, streamlined range

• Easier to select the right product
• Fewer products to stock
• Active/Passive Terrestrial Switch
• Convenience

Designed with installer convenience in mind

• Equidistant F-connectors on all multiswitches
• Colour-coded input labels
• LED power indicator
• Flexible power injection
• Earth bars

Technical Specifications

ELECTRICAL

• Impedance: 75 Ω

CONNECTORS

• Connector Type: F-female
• Connector DC: F-female
• Number of inputs: 17
• Number of trunk inputs: 4 SAT, 1 TER
• Number of trunk outputs: 4 SAT, 1 TER
• Subscriber outputs: 8
• Colorcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS

• LNB type: Quattro
• Max. input level - SAT (IMD3 - 35dB): 97 dBµV
• Max. input level - TER (IMD3 - 60dB): 90 dBµV
• Max. output level SAT @ -35 dB IMD3: 100 dBµV
• Max. output level TER @ -60dB IMD3: 90 dBµV
• LNB current max.: 3000 mA
• Switch commands: DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE

• Frequency range TER: Active: 47...862 / Passive: 5...862 MHz
• Frequency range SAT: 950…2200 MHz

GAIN

• Gain - SAT (with 5 dB slope): -2…+3 ± 2 dB
• Gain - TER: 0 ± 2 dB

LOSS

• Tap loss TER: 23 ± 2 dB
• Insertion loss - trunkline SAT: 4 ± 1 dB
• Insertion loss - trunkline TER: 3 ± 1 dB

ISOLATION

• Isolation SAT to TER: > 30 dB
• Isolation trunk to trunk: > 30 dB
• Isolation cross polarisation H/V: 30 dB
• Isolation out-out SAT: 30 dB
• Isolation out-out TER: 25 dB

RETURN LOSS

• Return loss SAT inputs: >10 dB
• Return loss SAT outputs: >10 dB
• Return loss TER inputs: >10 dB
• Return loss TER outputs: >10 dB
• Return loss TAP outputs: 10 dB

OPERATIONAL

• LINE power DC voltage (max.): 15…20 VDC
• LINE power current (max.): 2000 mA
• PSU output DC voltage: 18 VDC
• ESD protection: 4KV inputs & sub outputs
• DC Current consumption: 30mA TER passive 200mA TER active mA
• PSU/adapter Art number: 318165, 318166, 318167
• Max. current to each output (supplied by set top box): <50 mA
• Control LEDs: Green LED (Power)
• Temperature - operating: -20…+55 °C

MECHANICAL

• Main material: Steel housing
• Packing QTY: 1
• Product Height: 200 mm
• Product Length: 140 mm
• Product Width: 140 mm
• Product Depth: 65 mm
• Packaging Height: 0.070 m
• Packaging Width: 0.230 m
• Packaging Depth: 0.182 m
• Packaging Volume: 0.000 m3
• Net Weight: 0.740 kg
• Tara Weight: 0.135 kg
• Total Weight: 0.875 kg
• Remarks: Earth bars
