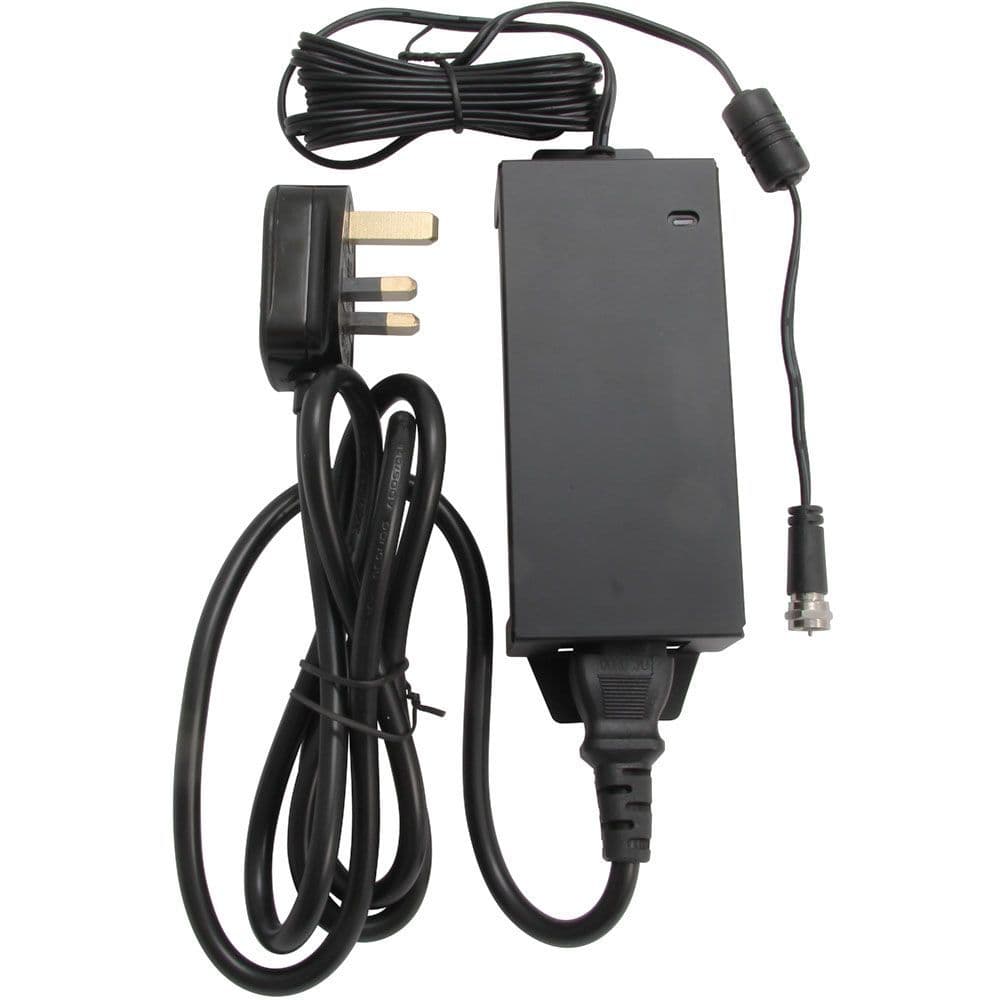

PSU 100-240V AC 50/60Hz to 18V DC 3A, UK socket
Our Power Supply Units deliver 18V DC to your cascade system.
Power can be inserted into any TRIAX cascade Multiswitch, Tap, Splitter or Amplifier.
Suitable for small to large systems.
Technical Specifications
CONNECTORS
- Power connector: UK main plug
- Connector Type: F-male
- Connector DC: 1830 ± 50mm DC lead length 1800mm Main cord length
OPERATIONAL
- AC Supply voltage: 100...240 VAC
- PSU output DC voltage: 18 VDC
- PSU output max. DC current: 3000 mA
- Control LEDs: Green LED (Power)
- Temperature - operating: -20…+55 °C
- Temperature - storage: -10...55 °C
MECHANICAL
- Dimensions product (H x D x W): 33,8 x 128 x 54,3 mm
- Packing QTY: 1
- Product Height: 122 mm
- Product Length: 128 mm
- Product Width: 55 mm
- Product Depth: 35 mm
- Packaging Height: 0.055 m
- Packaging Width: 0.220 m
- Packaging Depth: 0.095 m
- Packaging Volume: 0.001 m3
- Net Weight: 0.530 kg
- Tara Weight: 0.050 kg
- Total Weight: 0.580 kg
- Remarks: Power cord, PSU holder + 4 screws & wall plug short circuit, overload current & voltage protection
