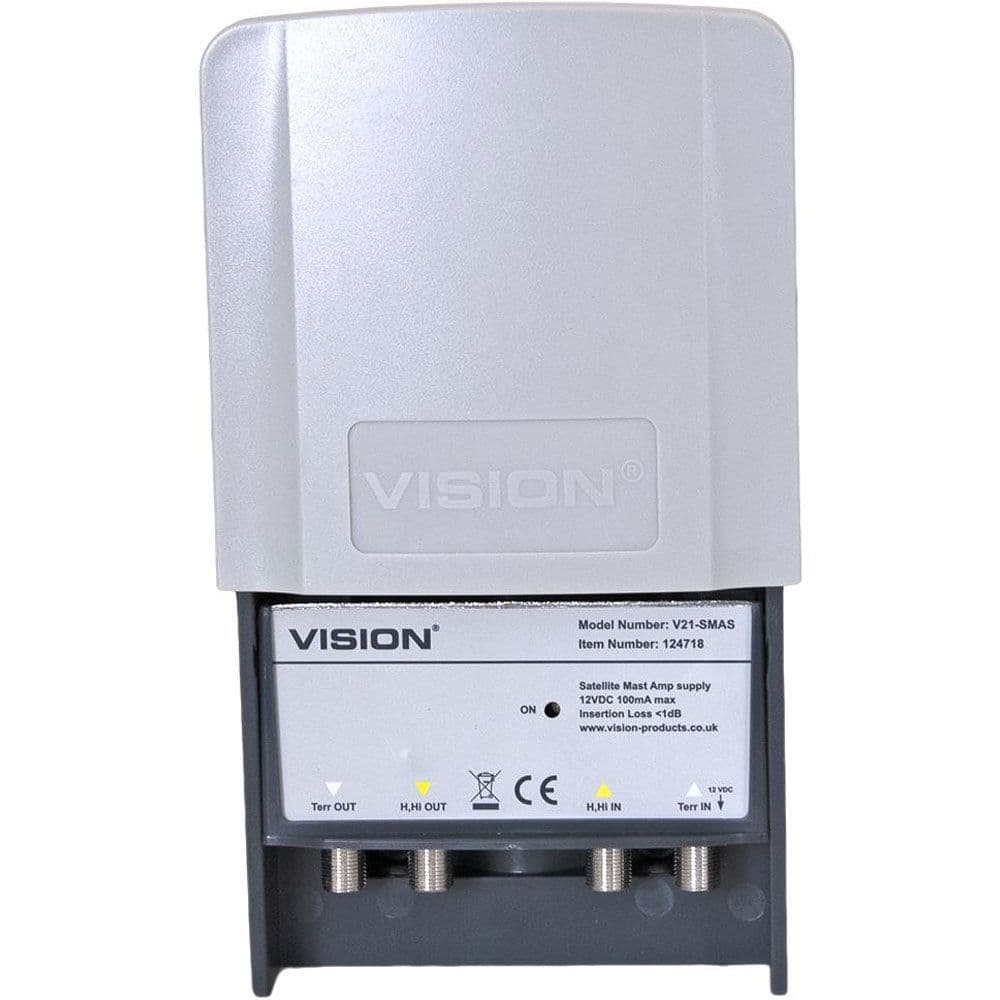

Designed to be used in hybrid legacy IRS systems to power a masthead amplifier where there is no power available.
Features
- Satellite Input Voltage 13~18VDC
- Extracts voltage from 18VDC HH
- Masthead Powering 12VDC regulated 100mA
- 18mm pitch between connectors
- Short circuit Protection
- Bi-Coloured LED, Green “ON”, Red SC Fault
- Insertion Loss <1dB Satellite / Terrestrial
- IP53 Weather Proof Masthead housing with wide tie wrap
Technical Specifications
- Input Frequency: 88 - 790MHz / 11.70 - 12.75GHz
- Output Frequency: 88 - 790MHz / 11.70 - 12.75GHz
- Isolation Terr / High Band: >30dB
- Insertion Loss: <1dB
- Operating Voltage: 13-18VDC
- Max. Current regulated: 100mA@12VDC
- Pitch between Connectors: 18mm
- Weather poof Housing: Yes
- Operating Temperature: -300C to +700C
- Dimension HxWxD / Weight: 115.4 x 115.55 x 48 mm / 219g
- Box Dimensions HxWxD / Weight: 62.5 x 12.2 x 144.5 mm / 36g
