V5-EVO is tuned to minimise 4G-800 LTE interference and has been developed for very low current consumption from the trunk cables, headend and from receivers. V5-EVO multiswitches are powered either via the horizontal trunk cables or locally via the auxiliary input socket. These multiswitches are ideal in small, medium and large cascaded systems where up to 40 multiswitches can be powered from single V5-034 power source. All multiswitches have stepped gain at each bank of four (eight on 24 & 32) outputs to balance subscriber signal levels and allow long and short subscriber cables to be connected to the same multiswitch.
Features
- Designed for large, medium and small line powered IRS installations
- Power from headend, anywhere on horizontal trunk cables via remote power supply, or local power
- Very low current consumption / 60mA trunk / 65mA receiver
- Active satellite and terrestrial with “stepped” gain for signal equalisation
- Switchable input attenuators for all satellite and terrestrial input bands
- High input /output capability for long subscriber lines
- Pre-mounted earth bars
- LED power indicator
- Fully screened diecast housings for extreme interference immunity
Technical Specifications

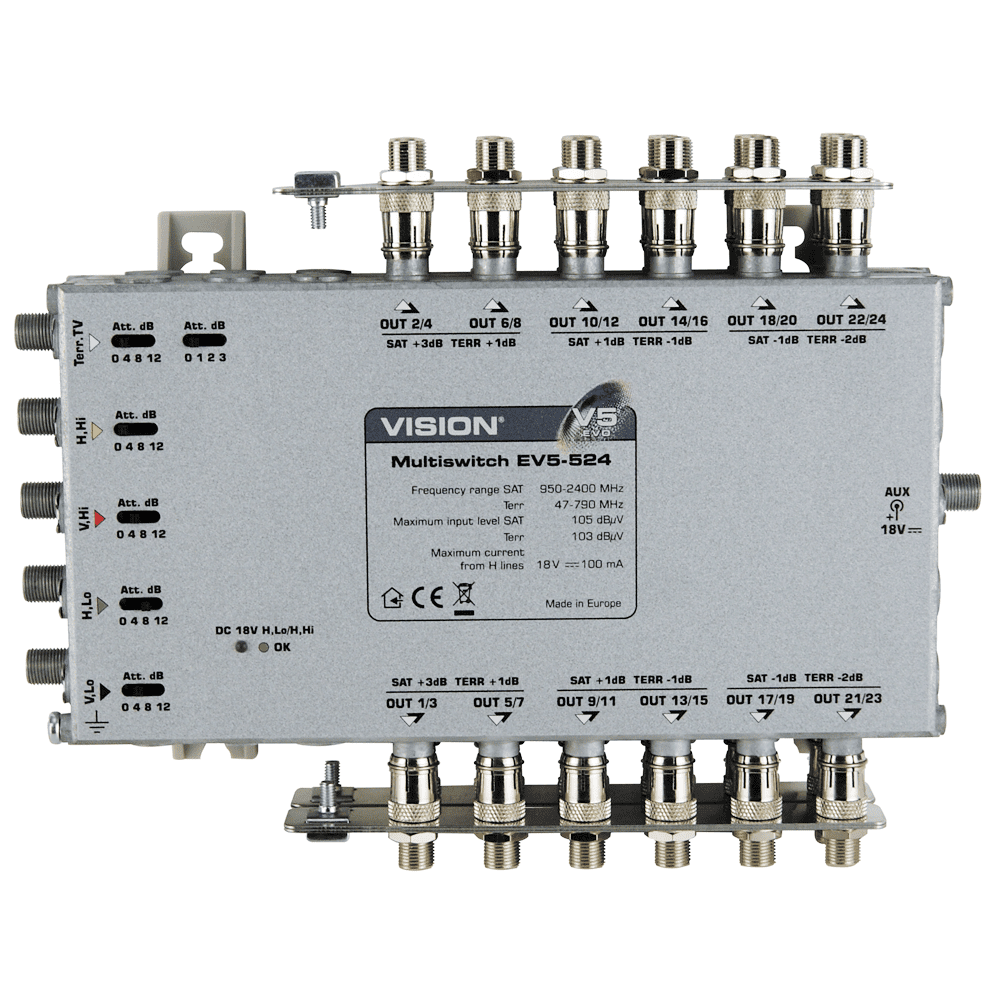

- Model: EV5-524
- Number of Inputs: 4 x SAT + 1 x Terrestrial
- Number of Outputs: 24
- Frequency Range SAT: 950 – 2400MHz
- Frequency Range Terr: 47 – 790MHz
- Gain SAT 950 / 2400MHz Fixed Slope Pre-emphasis: Output 1-8 -4 to +3dB: Output 9-16 -5 to +1dB: Output 17-24 -6 to -1dB: Output 25-32 -
- Gain Terrestrial 40 / 862MHz Fixed Slope Pre-emphasis: Output 1-8 -2 to +1dB: Output 9-16 -4 to -1dB: Output 17-24 -5 to -2dB: Output 25-32 -
- Gain Control SAT: 0 – 12dB in 4dB steps
- Gain Control Terr: 0 – 15dB in 1dB steps
- Output Level SAT (IMD³ – 35dB): 96dBuV
- Output Level (DIN 45004B): Output 1-8 89dBuV Output 9-16 87dBuV Output 17-24 85dBuV Output 25-32 -
- SAT / SAT Input Isolation: >30dB
- SAT / SAT / Terr Output Isolation: >30dB / 35dB
- Rejection TV –SAT / SAT-TV: >30dB / 40dB
- DC Pass from external PSU: 18V / 600mA max
- Current consumption from receiver: <65mA
- Current consumption from H Lines or external power supply: 12V to 18V / 60mA
- Control Signals V/Lo, H/Lo: 11.5V – 14.5V/0kHz, 16.5 – 19V/0kHz
- Control Signals V/Hi, H/Hi: 11.5V – 14.5V/22kHz, 16.5 – 19V/22kHz
- Dimensions mm: 227x135x50
- Weight: 1.5kg
