Vision 3-Way Splitter (124225)

3 Way 5 Wire Splitter With 12V DC Output for Powering Masthead Amplifier.

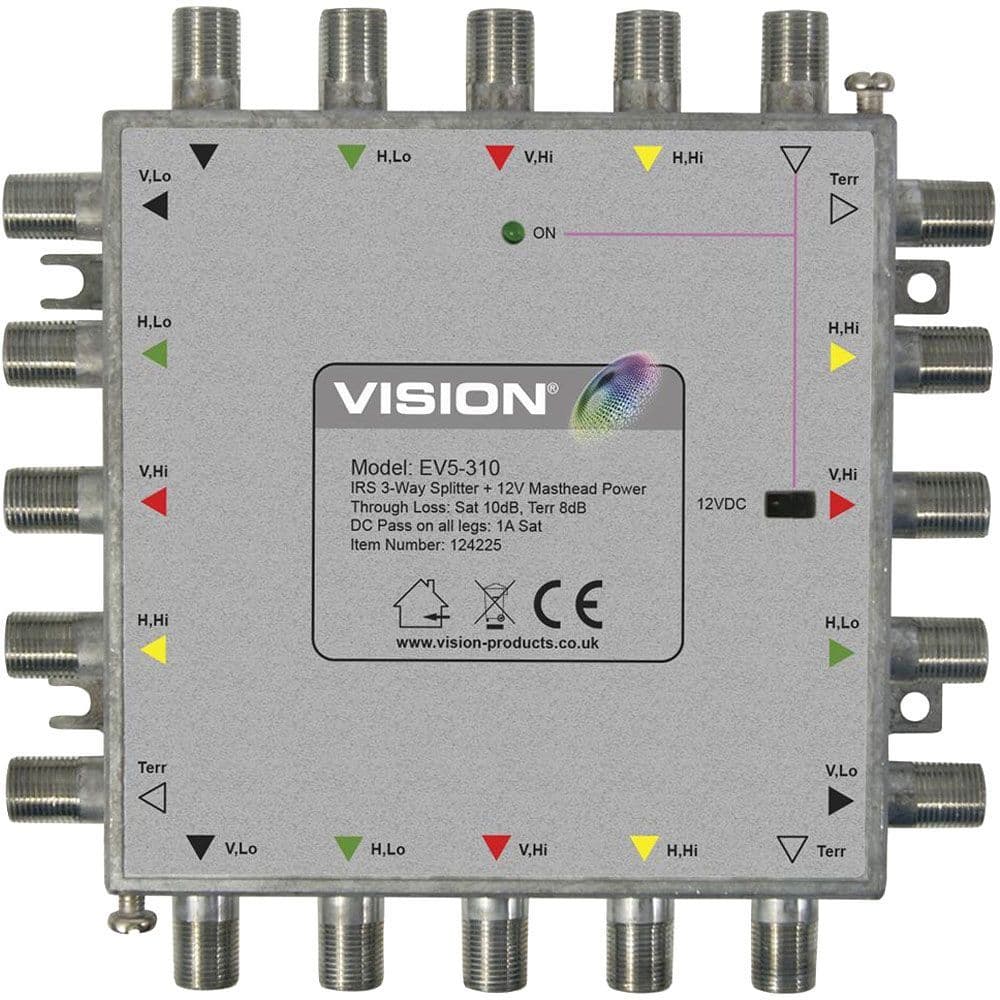

Designed to compliment the EV5 Multiswitch range. The new EV5-310 allows the signals to be split 3-ways and provide switched 12VDC to power mastheads.

Features

• Colour coded inputs / outputs
• 12VDC switched masthead power
• Sat Loss <7dB, Terr Loss <7dB
• Through Current 1 Amp per leg
• Fully screened die-cast housing to reject interference
• Factory fitted earth bars
• Enables easy distribution and balance of signals
• Short circuit protected

Technical Specifications

• Frequency Range:
  • SAT: 950MHz - 2200MHz
  • TERR: 5 - 1000MHz
• Number of Inputs / Outputs: 5/15
• Splitter Loss SAT / Terr: <-7dB / <-7dB
• SAT IF / SAT IF Input Isolation: >30dB
• SAT IF / Terr Input Isolation: >30dB
• SAT IF Output - Output Isolation: >20dB
• Terr / Terr- Output Isolation: >20dB
• Return Loss Sat / Terr: >12dB / >16dB
• DC Consumption Terr TV amplifier via H lines: 12VDC 100mA with Short circuit protection
• Impedance: 75Ω
• Connectors: F-Type (f) Earth Bar F-Type (f) Quick F (m)
• Max DC Pass into the trunk: 18V 1.0A per leg
• Operating Temperature: -200C to +500C
• Dimension inc connectors / Weight: 134 x 134x 30 mm / 472 g
