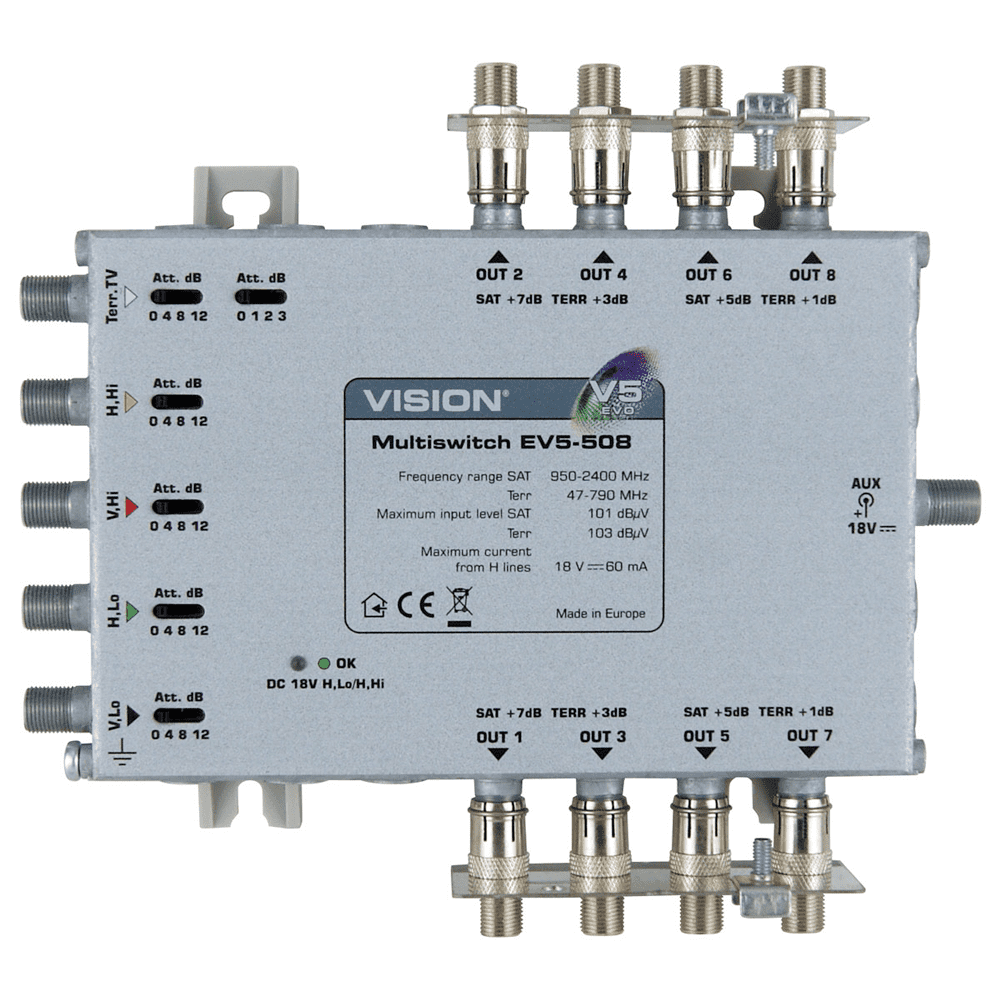

Vision 8-output Line Power Multiswitch (118513)

Features

• Designed for line powered IRS installations.
• Power from headend, anywhere on horizontal trunk cables, or local power.
• Very low current consumption.
• Active satellite and terrestrial with "stepped" gain for signal equalisation.
• Terrestrial signal always active.
• Level controls for High and Low satellite bands and terrestrial inputs.
• High output for long subscriber lines.
• Earth bonding bars pre-mounted.
• LED power indicator.

Technical Specifications

• Number of Inputs: 4 x SAT + 1 x Terrestrial Number of Outputs 8
• Frequency Range:
  • SAT: 950-2400MHz
  • Terr: 47-862MHz
• Gain SAT Fixed Slope Pre-emphasis:
  • Output 1-4: 7 to 12dB
  • Output 5-8: 6 to 10dB
• Gain Terrestrial:
  • Output 1-4: 4 to 10dB
  • Output 5-8: 3 to 6dB
• Gain Control:
  • SAT: 10dB on Low and High Polarity
  • Terrestrial: 17dB
• Output Level SAT (IMD3-35dB): 93dBuV
• Output Level (DIN 45004B):
  • Output 1-4: 92dBuV
  • Output 5-8: 90dBuV
• SAT / SAT Input Isolation: >30dB
• SAT / SAT Output Isolation: >30dB
• Terrestrial Output Isolation:  >30dB
• DC Pass from external PSU: 18V / 1.0A max
• Current consumption from receiver: <180mA
• Current consumption from H Lines or external power supply at 2.1mm jack socket: 12V to 18V / 80mA
• Control Signals:
  • V/Lo, H/Lo: 11.5V-14.5V/0kHz, 16.5-19V/0kHz
  • V/Hi, H/Hi: 11.5V-14.5V/22kHz, 16.5-19V/22kHz
• Dimensions: 170 x 165 x 53mm
• Weight: 0.55kg
