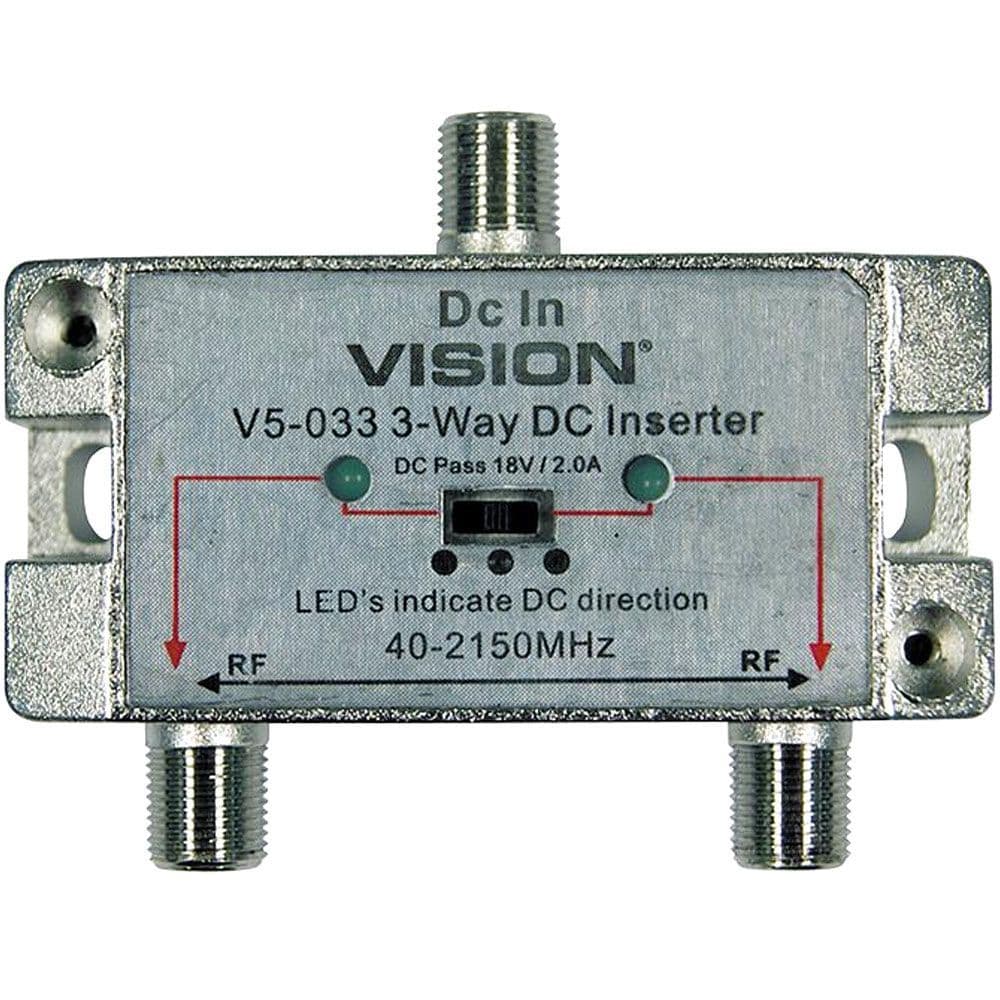

DC Injector/ 3-Way Switch for adding power into systems without a suitable injection point present.
Features
- Ideal for inserting DC power into V5 / V9 and other line powered IRS/MATV Systems
- 18v 2.0A DC inserter / DC Line Power Tap
- Switchable DC direction with LED indication
- DC block when switched to single direction
- DC pass on RF line when in dual direction mode
- Ideal for powering separate DC zones
Technical Specifications
- RF Frequency Range: 5 - 2,150MHz
- Insertion Loss: <1.0dB
- Voltage / Current Rating: 5 - 20V DC / 2.0A max
- Connectors: F female connectors (IEC 61169-24)
- Housing / EMC Protection: Fully screened diecast / EN50083 -2
- Size / Weight: 74 x 60 x 25 mm / 0.09 kg
