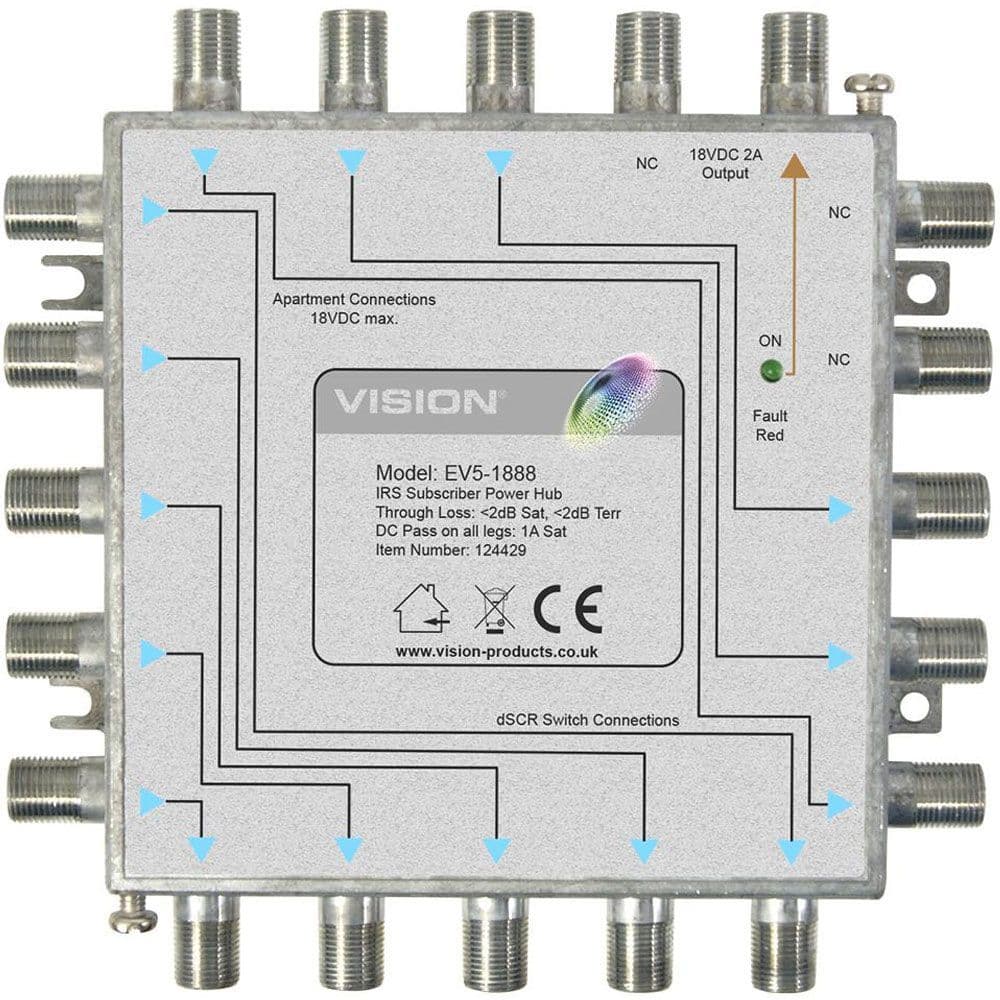

The EV5-1888 IRS Subscriber Power Hub is designed to be used in conjunction with the EV5-1801 Subscriber power injector when there is No Landlords Power Supply available. The Subscriber Power Hub provides a means of extracting 18VDC from the SQY Q (SAT 2) feed from the apartment and allowing the dSCR and Legacy switches terrestrial circuits and LNB to be powered, ensuring that the system remains ON enabling All subscribers to access Terrestrial and the desired SKY +HD, Q or Freesat services.
Features
- LED Power Indicator Green ON
- Short Circuit Protected LED turns RED auto reset
- Colour coded inputs / outputs
- Insertion Loss Sat / Terr <1dB
- Through Current 2 Amp
- Fully screened die-cast housing to reject interference
- Earth bars supplied
- 75 Ohm Impedance
Technical Specifications
- Frequency Range: SAT/TERR 88MHz – 2200MHz
- Number of Inputs / Subscriber Outputs: 8/8+DC 18V output
- Insertion Loss SAT / Terr TV: <-1dB
- Isolation between Ports: >30dB
- Return Loss All ports: >12dB
- Power ON: GREEN LED ON / RED Short circuit Protection with Auto reset
- Impedance: 75Ω
- Connectors: F-Type (f) Earth Bar F-Type (f) Quick F (m)
- Max DC Pass into the trunk: 18VDC 2.0A
- Operating Temperature: -200C to +500C
- Dimension inc connectors / Weight: 134 x 134x 30mm 472g
