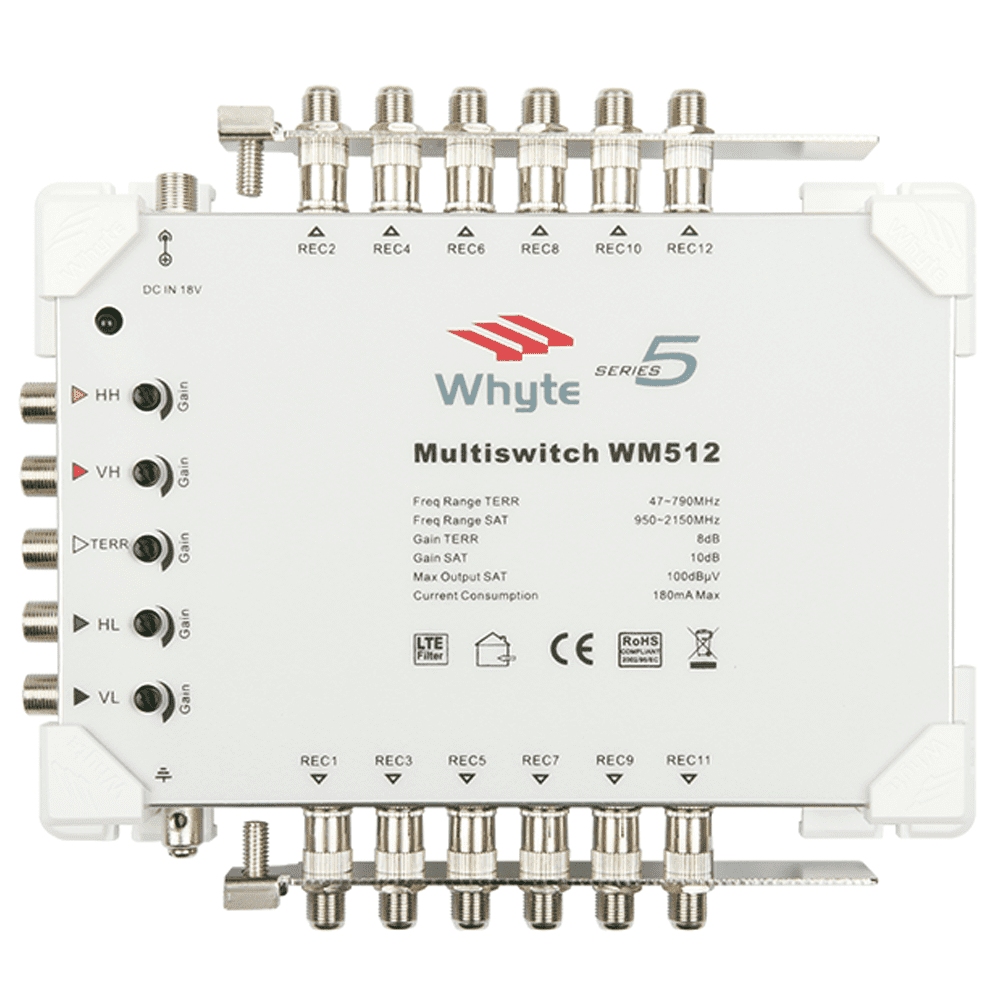

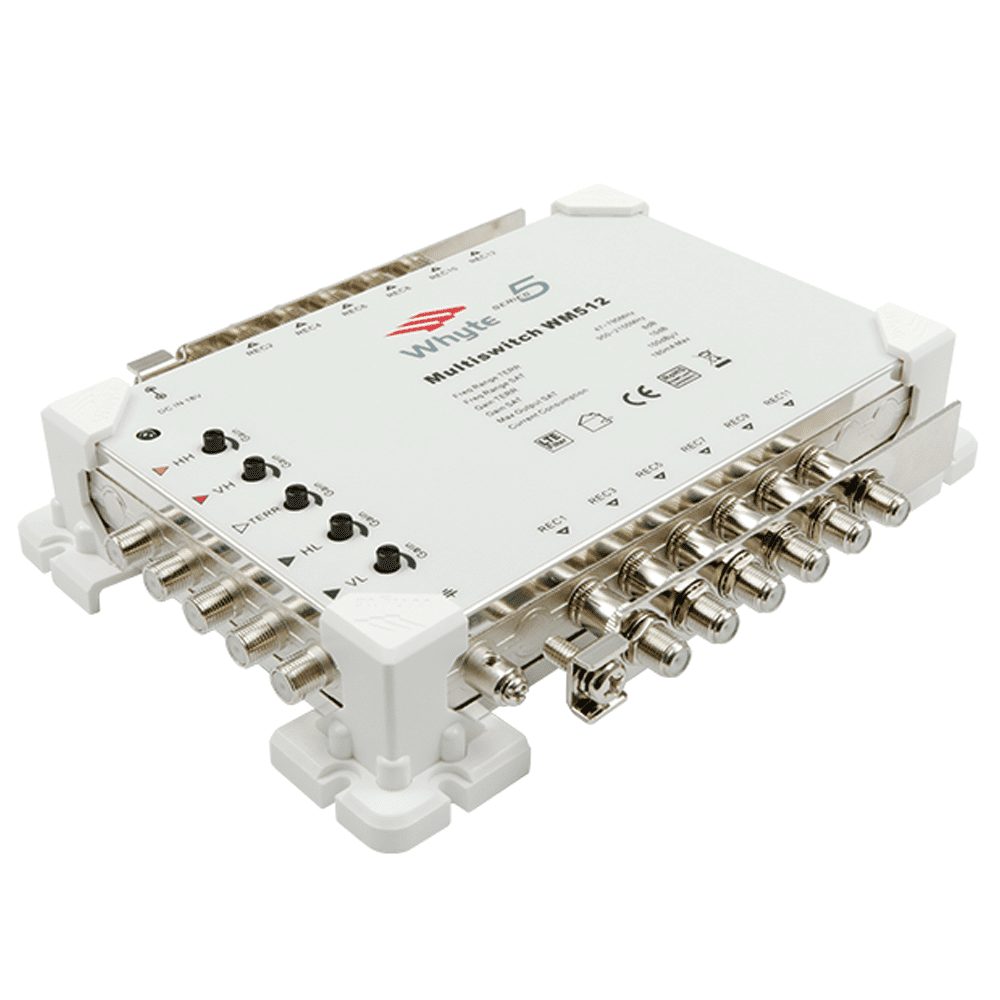

The Whyte Series 5 Multiswitch range is universally flexible and is designed to be used in small, medium to large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as Standalone Multiswitches when powered directly via the18V Auxiliary Input by using a Whyte 0.8A Power Supply Unit (model WPSU-0.8A).
Features
- Line Powered Multiswitch
- Use as standalone when powered with a Whyte PSU
- SAT gain 10dB / TERR gain 8dB
- Gain Control on all inputs
- Comes with Earth Bars fitted
- Uses the receiver power to reduce demands on system PSU
- Colour coded inputs and outputs
- LED power indicator
- Inbuilt LTE filter
- Adequate clearance to route cables under the Multiswitch
- Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems
Technical Specifications
- Weight: 0.897 kg
- Dimensions: 21.5 x 18.2 x 4.3 cm
- Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz
- Inputs (F-Type Connector): 4 SAT + 1 TERR
- Outputs (F-Type Connector): 12 Tap outputs
- Gain: SAT: ≥10dB, TERR:≥8dB
- Gain Control: SAT : 11+-2dB, TERR : 11+2dB
- Isolation: Cross Polar: ≥25dB, Rejection : ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB
- Output Level: SAT (IMA³ 35db): 100dBμV, TERR (IMA³ 60dB): 85dBμV
- Switchable Voltage: 15±0.8V
- Trunk Max Current: 2A
- Switching Commands: 13V-18V, 13V22k-18V22K
- Current Consumption: 180mA max
