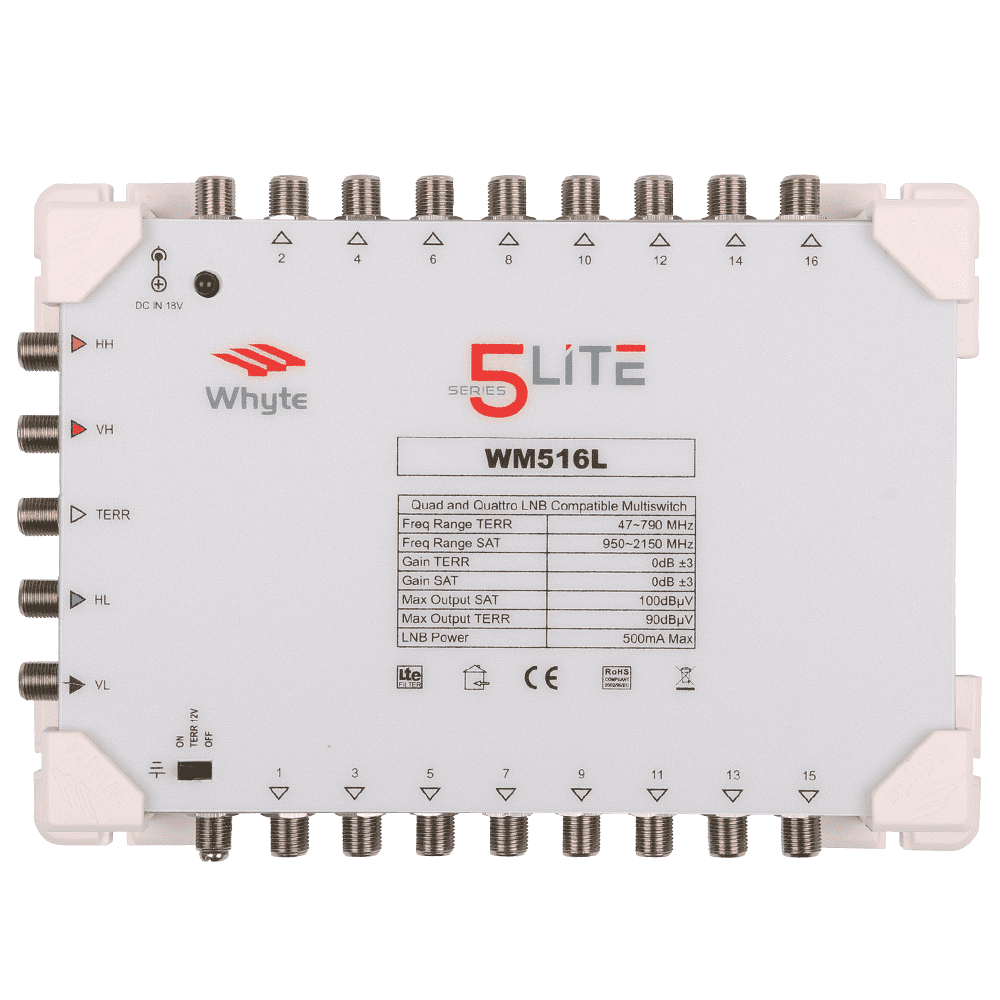

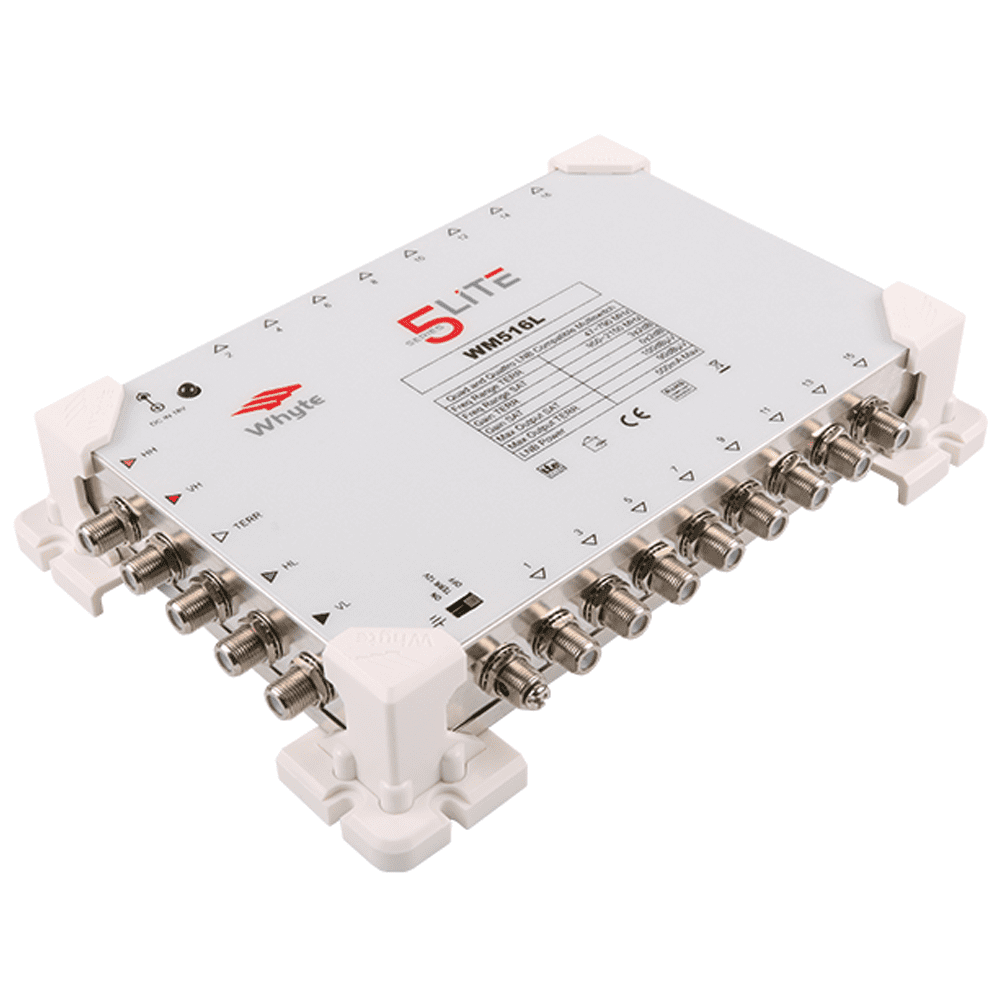

The Whyte Series 5 Lite 16-Way Standalone Multiswitch is designed for domestic installations as well as for small apartment blocks and, it is compatible with both QUAD and QUATTRO LNB's.
Features
- Colour Coded Inputs
- Industry Leading Performance at a competitive price
- LED Power Indicator
- Includes Separate Power Supply Unit with F-Type DC Lead
- Gain SAT: 0dB / TERR: 3dB
- Switchable 12V supply to power Mast Head Amplifier
- High quality Standalone Multiswitch with 4 years warranty
- Adequate Clearance to route cables under Multiswitch
- inbuilt High-Rejection LTE 4G Filter
Technical Specifications
- Weight: 0.569 kg
- Dimensions: 21.5 x 15.0 x 4.3 cm
- Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz
- Inputs (F-Type Connector): 4 SAT + 1 TERR
- Outputs (F-Type Connector): 16 Tap outputs
- Gain: SAT: 0+-2dB, TERR:3+-2dB
- TERR 12V DC Supply: 100mA
- Isolation: Cross Polar: ≥25dB, Rejection : ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB
- Output Level: SAT (IMA³ 35db): 100dBμV, TERR (IMA³ 60dB): 90dBμV
- Switchable Voltage: 15±0.8V
- LNB Power Max: 500mA
- Switching Commands: 13V-18V, 13V22k-18V22K
- Current Consumption: 100mA max
