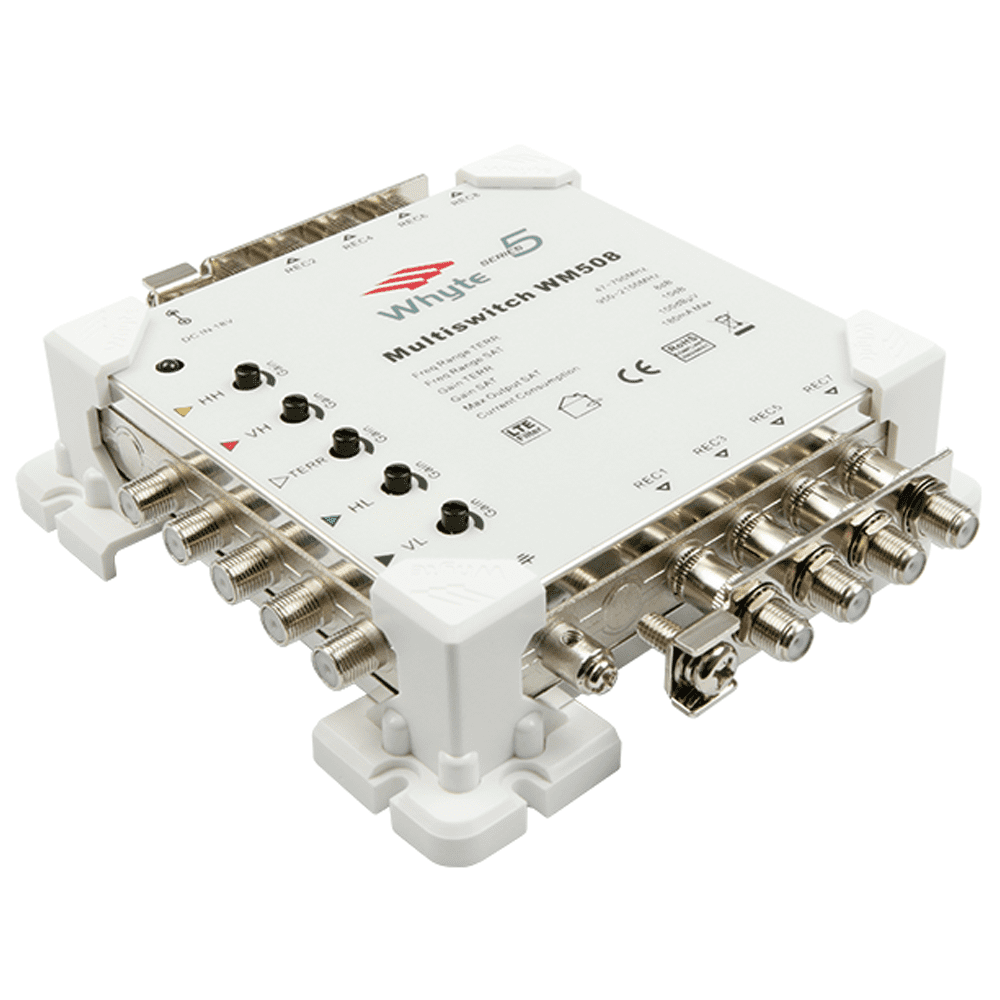

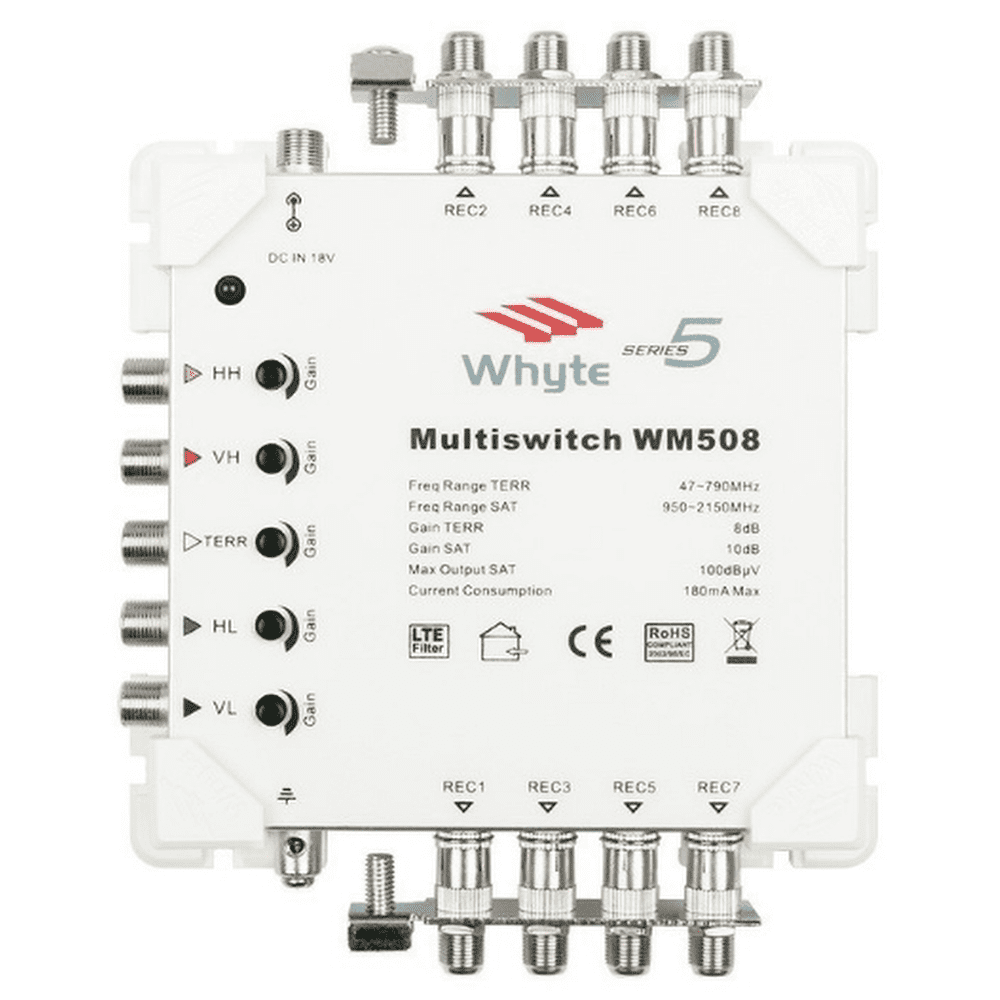

The Whyte Series 5 Multiswitch range is designed to be universally flexible and can be used in small, medium and large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as a standalone Multiswitch when powered directly via the 18V Auxiliary Input by using the Whyte 0.8A Power Supply Unit (model WPSU-0.8A).
Features
- Line Powered Multiswitch
- Use as standalone when powered with a Whyte PSU
- SAT gain 10dB / TERR gain 8dB
- Gain Control on all inputs
- Comes with Earth Bars fitted
- Uses the receiver power to reduce demands on system PSU
- Colour coded inputs and outputs
- LED power indicator
- Inbuilt LTE filter
- Adequate clearance to route cables under the Multiswitch
- Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems
Technical Specifications
- Weight: 0.678 kg
- Dimensions: 15.0 x 18.2 x 4.3 cm
- Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz
- Inputs (F-Type Connector): 4 SAT + 1 TERR
- Outputs (F-Type Connector): 8 Tap outputs
- Gain: SAT: ≥10dB, TERR:≥8dB
- Gain Control: SAT : 11+-2dB, TERR : 11+2dB
- Isolation: Cross Polar: ≥25dB, Rejection : ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB
- Output Level: SAT (IMA³ 35db): 100dBμV, TERR (IMA³ 60db): 90dBμV
- Switchable Voltage: 15±0.8V
- Trunk Max Current: 2A
- Switching Commands: 13V-18V, 13V22k-18V22K
- Current Consumption: 180mA max
