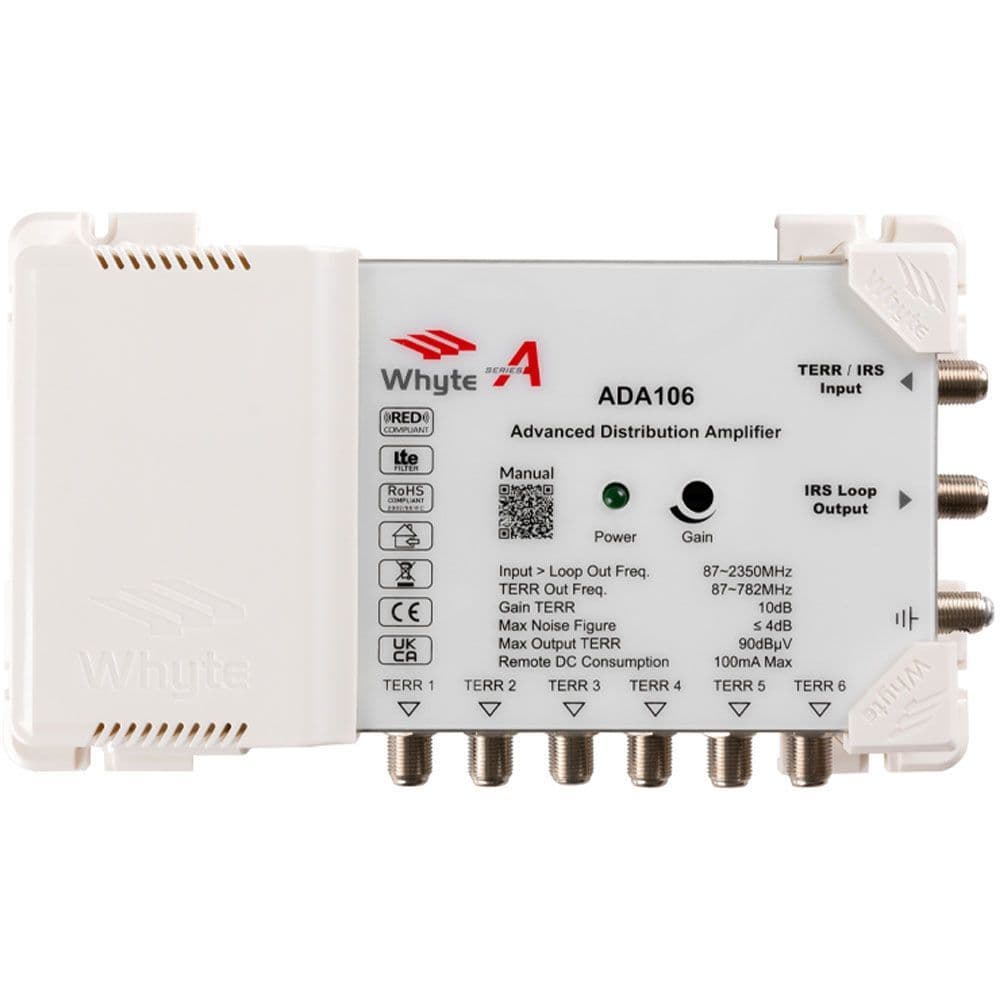

A comprehensive range of RED compliant, professional Advanced Distribution Amplifiers with IRS Loop-through.
This enables Whyte Series A Distribution Amplifiers to be connected directly to a Multiswitch subscriber output whereby the SAT and TERR/RADIO signals are passed through the Distribution Amplifier before terminating at the outlet plate. The TERR/RADIO signals are amplified before being distributed to the TERR & RADIO outlets.
The Whyte Series A Distribution Amplifiers are available in sizes ranging from 2-Way to 16-Way. The IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used as a standard TERR and RADIO Distribution Amplifier, the Whyte range of Distribution Amplifiers offer a professional, low noise, high gain solution.
Features
- Cascadable
- LTE Filter (4G)
- Gain Control
- RED Compliant
- IRS Loop-Through
- Internal power supply
- Ultra-Low Noise ≤4dB
- Remote Powering via all outputs
- 10dB ~ 12dB Gain (depending on model)
- Adequate cable clearance for routing underneath
- High Quality Distribution Amplifier with a 4-year guarantee
Technical Specifications
- TERR Frequency Range: 87MHz ~ 782MHz
- TERR/IRS Input (F-Type Female): 1
- TERR Tap Outputs (F-Type Female): 6
- SAT Loop Through (F-Type Female): 1 x 87~ 2350MHz
- RED Compliance: Class 3
- TERR Gain: 10dB
- Max Output TERR (IMA3 -60dB): 90dBuV
- Max Noise Figure: ≤4dB
- SAT Through Loss: 4dB
- Impedence: 75 Ω
- Loop Through Passing: 13/18V / 22kHz / DiSEqC
- Mains Operation: 230V AC
- Remote DC Powering (via TERR outputs): 12V DC
- Remote DC Consumption: 100mA Max
- Power Indicator: LED
- Earth Lug: Up to 6mm2 core
- Dimensions W x L x H: 200 x 116 x 43 mm
- Weight: 450g
